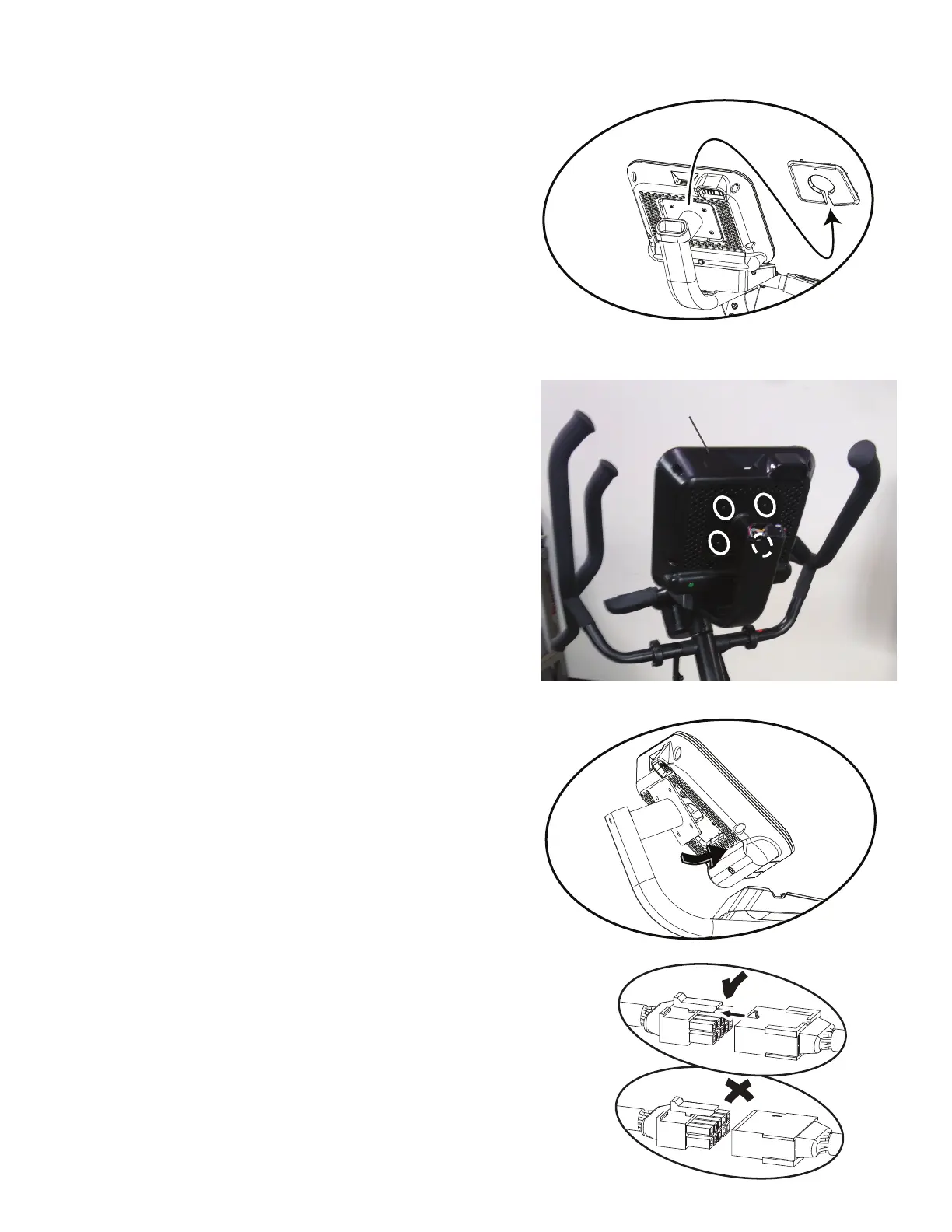

1. Unplug the AC Adapter from the wall outlet and machine.
2. Remove the Rear Console Cover from the Console Assembly.
3.Usinga#2Phillipsscrewdriver,removethescrews(indicatedbyovals)
from the Console Assembly.
4.CarefullytilttheConsoleAssemblyoffoftheStaticHandlebarand
expose the Cable Connections.
Note: Do not crimp any of the Console Cables. This step may require two
people.
5. Carefully disconnect the Cables.
Note: Do not crimp any of the Console Cables.
Note: Your machine may not match the images provided exactly.
Console Assembly
6. Installation is the reverse procedure.
Note: DonotcutorcrimptheCables.EachCableconnector(3-pin,4-pin,5-pinand12-pin)hasa
corresponding end connector with that many openings. Be sure to fully connect the cable connec-
tors.
