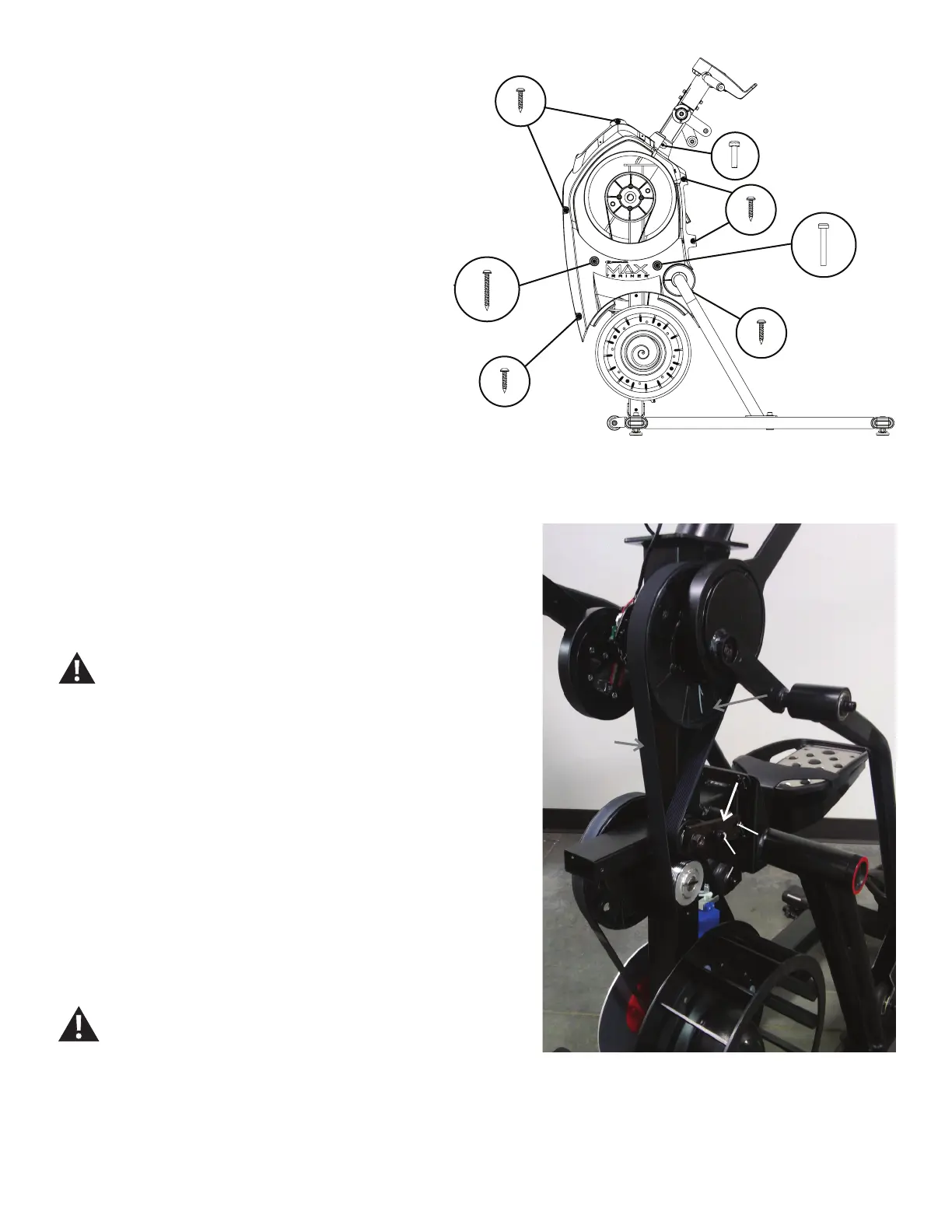

21.Usinga#2Phillipsscrewdriver,removethescrewsfromtheLeft
Shroud. ( 9 screws on the Left Shroud) Remove the upper screws
labeled ‘ * ’ last.
22.Usinga4mmhexwrench,removethescrewindicatedby“A”fromthe
Drive Belt Tensioner Arm.
23. Using a 8mm hex wrench, loosen the screw indicated by “B” until the
Drive Belt is free enough to be removed from the Drive Pulley. Remove
the Drive Belt.
Keep ngers out of any pinch opportunities when removing
the Fan Belt.
24.Replaceandtightenthe“A”screwontheDriveBeltTensionerArm,
and then tighten the “B” screw.
25. Installation is the reverse procedure.
26. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Right Side Left Side
*
*
Drive Belt
Drive Pulley
Drive Belt Tensioner Arm
A
B
Note: Shrouds are removed for clarity.
