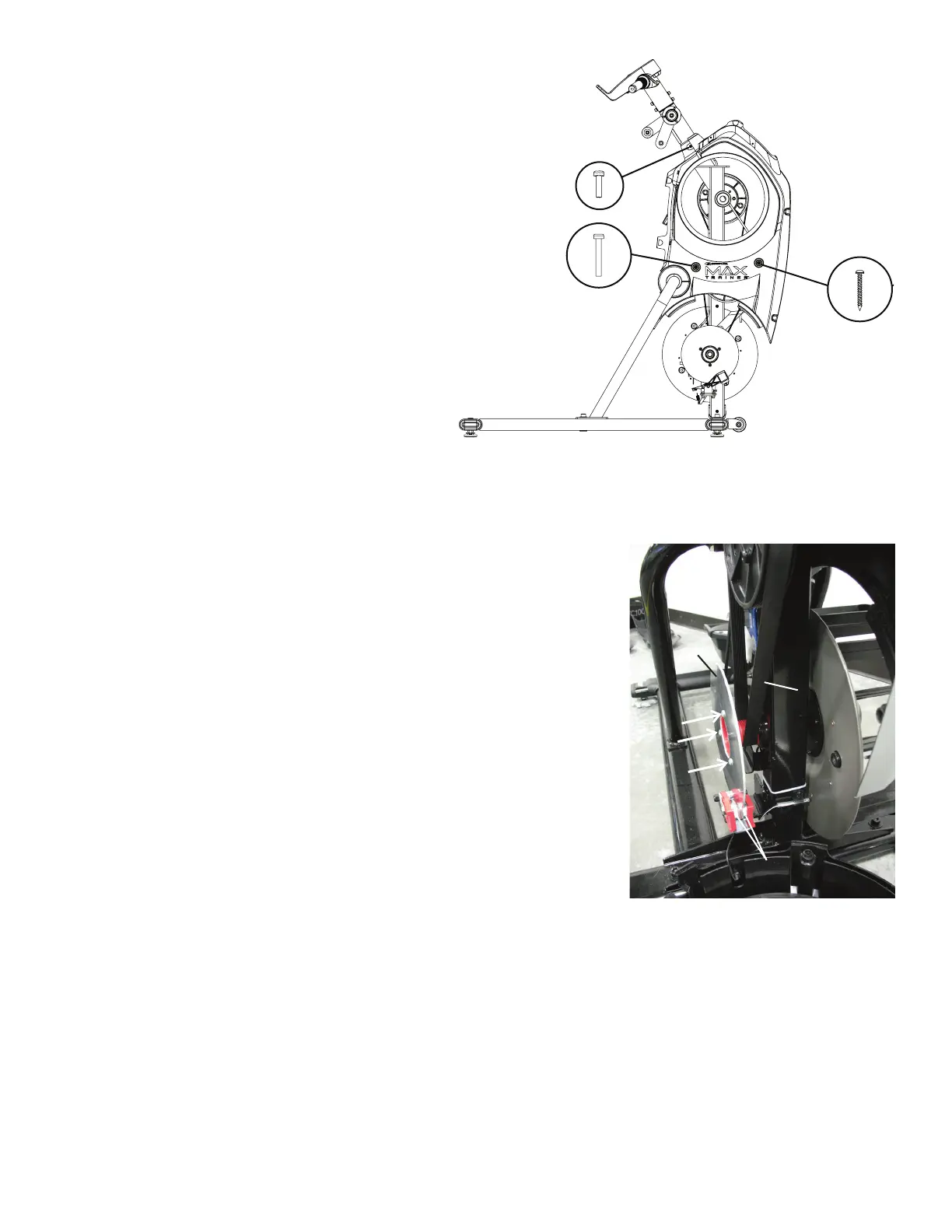

24.Usinga#2Phillipsscrewdriver,removethescrewsfromthe
Right Shroud ( 3 screws on the Right Shroud). Remove the upper
screws labeled ‘ * ’ last.
25.Usinga#2Phillipsscrewdriver,removethe3indicatedscrewsfrom
the Brake Disc.
26. Carefully remove the Brake Disc from the machine exposing the lower
Fan Belt.
Right Side Left Side
*
*
Brake
Magnets
Brake
Disc
Fan Belt
