96
Heavy
Duty
Zip-Tie

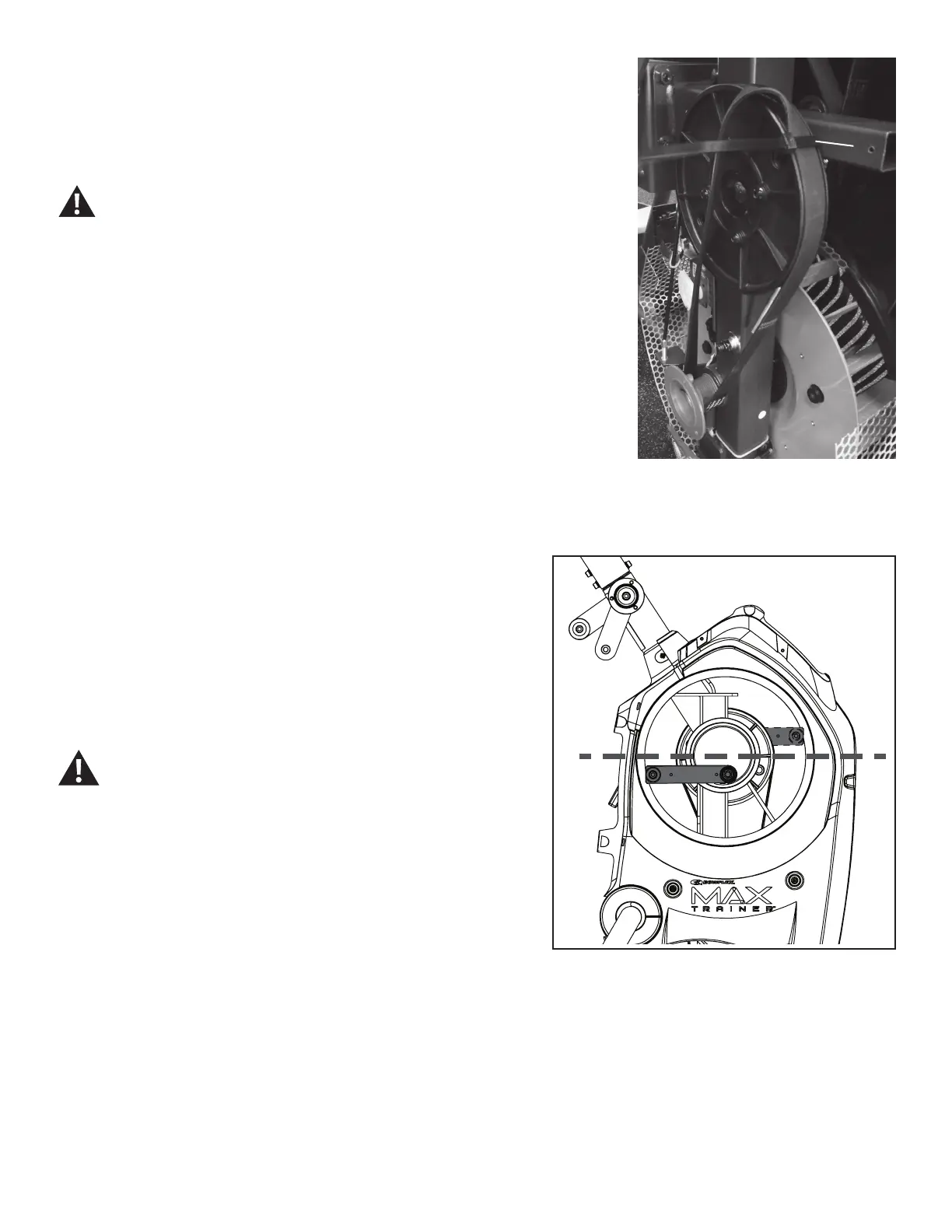

33. Secure the Fan Belt to the Fan Pulley with a Heavy Duty Zip-Tie. Be sure to
attach the Zip-Tie where the Fan Belt is fully in contact with the Fan Pulley.
34.GrasptheFanPulleywheretheFanBeltisengagedonit,andforcibly
rotate the Fan Pulley until the Fan Belt is fully engaged.
Keep ngers out of any pinch opportunities when rotating the
Fan Pulley.
35. Cut the Zip-Tie without damaging the new Fan Belt or Fan Pulley.
36. Installation is the reverse procedure excluding steps with the Crank Puller.
The Crank Puller is not required for re-assembly.
Note: When replacing the Crank Arms, be sure the Right and Left Crank Arms
are oriented inline and opposite each other.
The Crank Nuts should be tightened to a torque value of 29-32.5 ft lbs (or 350-
390 in lbs).
37. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are
properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
