Bowflex MAX TRAINER MAX TOTAL Series - Hardware; Tools

Assembly / Owner’s Manual
8
Tools
Included
#2
4 mm
5 mm
6mm
8 mm
13 mm

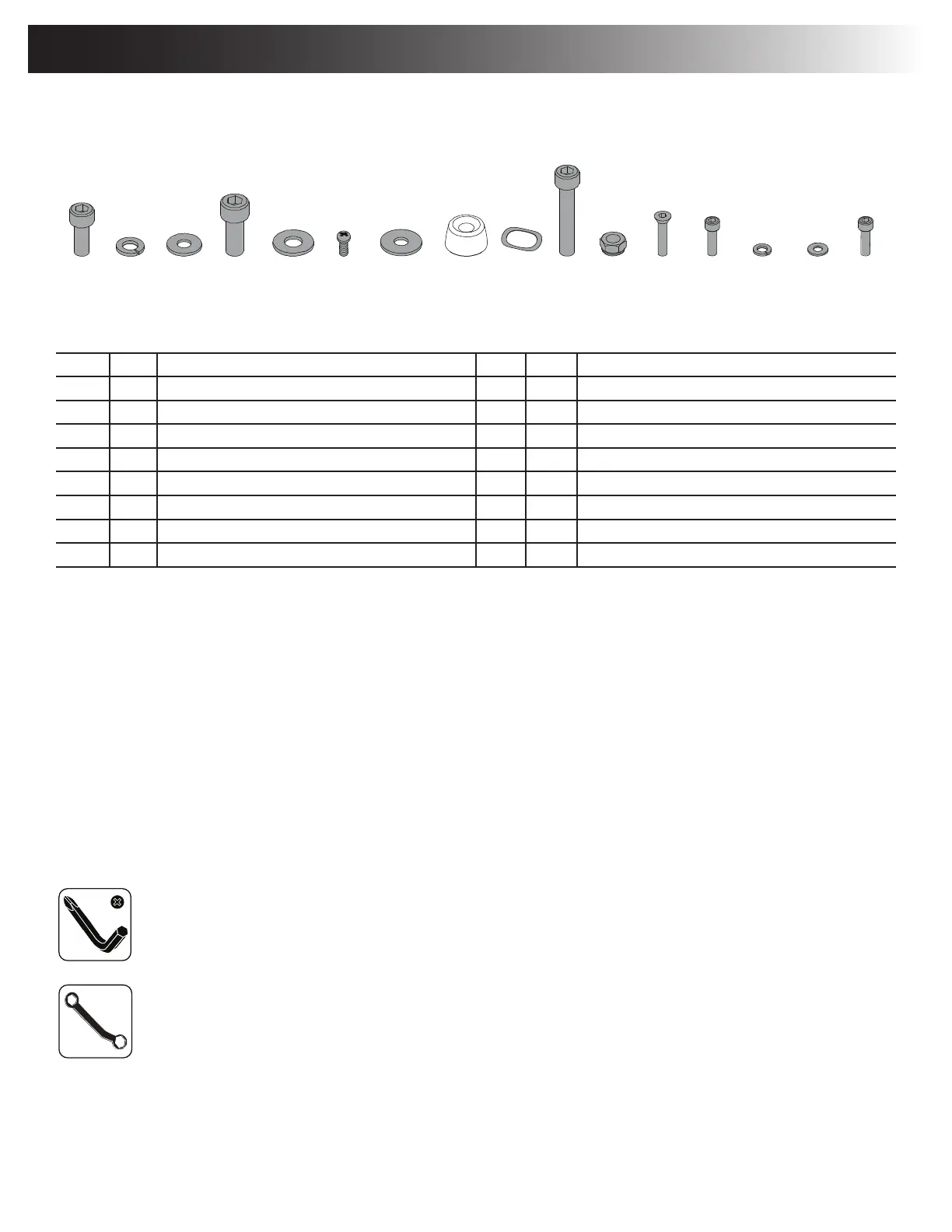

Hardware / Tools
Item Qty Description Item Qty Description
A 6 SocketHeadHexScrew,M8x1.25x20Black I 2 WaveWasher,17.2x22
B 6 LockWasher,M8x14.8Black J 4 SocketHeadHexScrew,M8x1.25x55Black
C 12 Washer,FlatM8x18Black K 4 Lock Nut, M8 Black
D 4 SocketHeadHexScrew,M10x1.5x25Black L 8 FlatSocketHeadHexScrew,M6x1.0x30Black
E 4 Washer,FlatM10x23Black M 4 SocketHeadHexScrew,M6x1.0x20CL10.9Black
F 1 PanPhillipsScrew,M5x0.8x20Black N 10 LockWasher,M6x14.8Black
G 2 Washer,FlatM8x24Black O 4 Washer,FlatM6x13Black
H 2 Cap P 6 SocketHeadHexScrew,M6x1.0x20CL12.9Black
Note: Select pieces of Hardware have been provided as spares on the Hardware Card. Be aware that there may be remaining Hardware
after the proper assembly of your machine.
A B C D E F
G H
I J K L M N O P
