STEP 2: Preacher Curl Sub-assembly
Parts:
• (1) Front Assembly - Item 1
• (1) Backbone Assembly - Item 2
Hardware:
• (4) 3/8” X1” Flathead Screws - Item 11
Tools:
• 7/32” Hex Wrench
Assembly Steps:

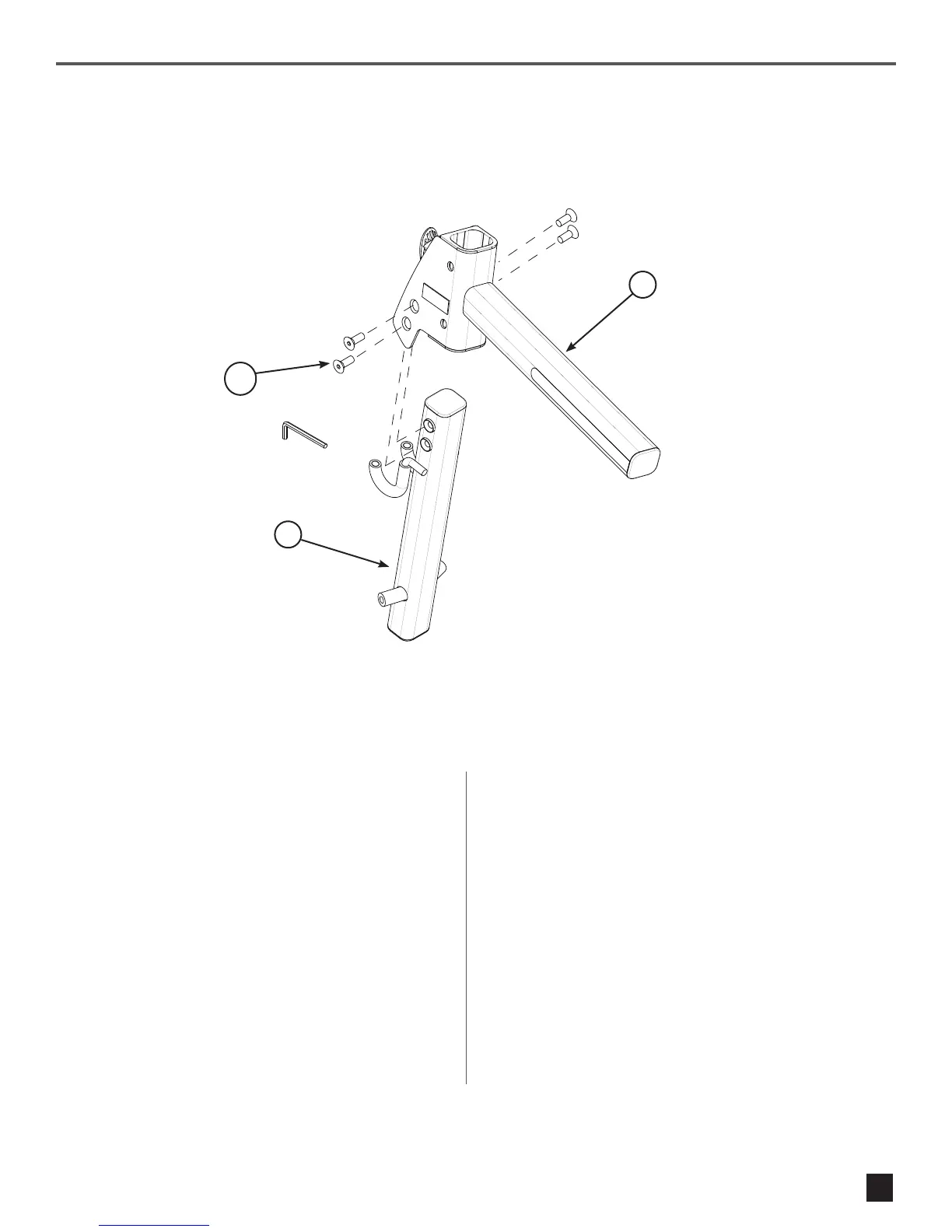

2-1 Attach the Front Assembly (1) to the Backbone
Assembly (2) using the hardware shown. See
Figure 2.
2-2 Tighten hardware.
Figure 2
Assembly Instructions
2
1
11
