Bowflex Preacher Curl Attachment - Step 3: Install Preacher Curl Sub-assembly

8
Assembly Instructions
STEP 3: Install Preacher Curl Sub-assembly

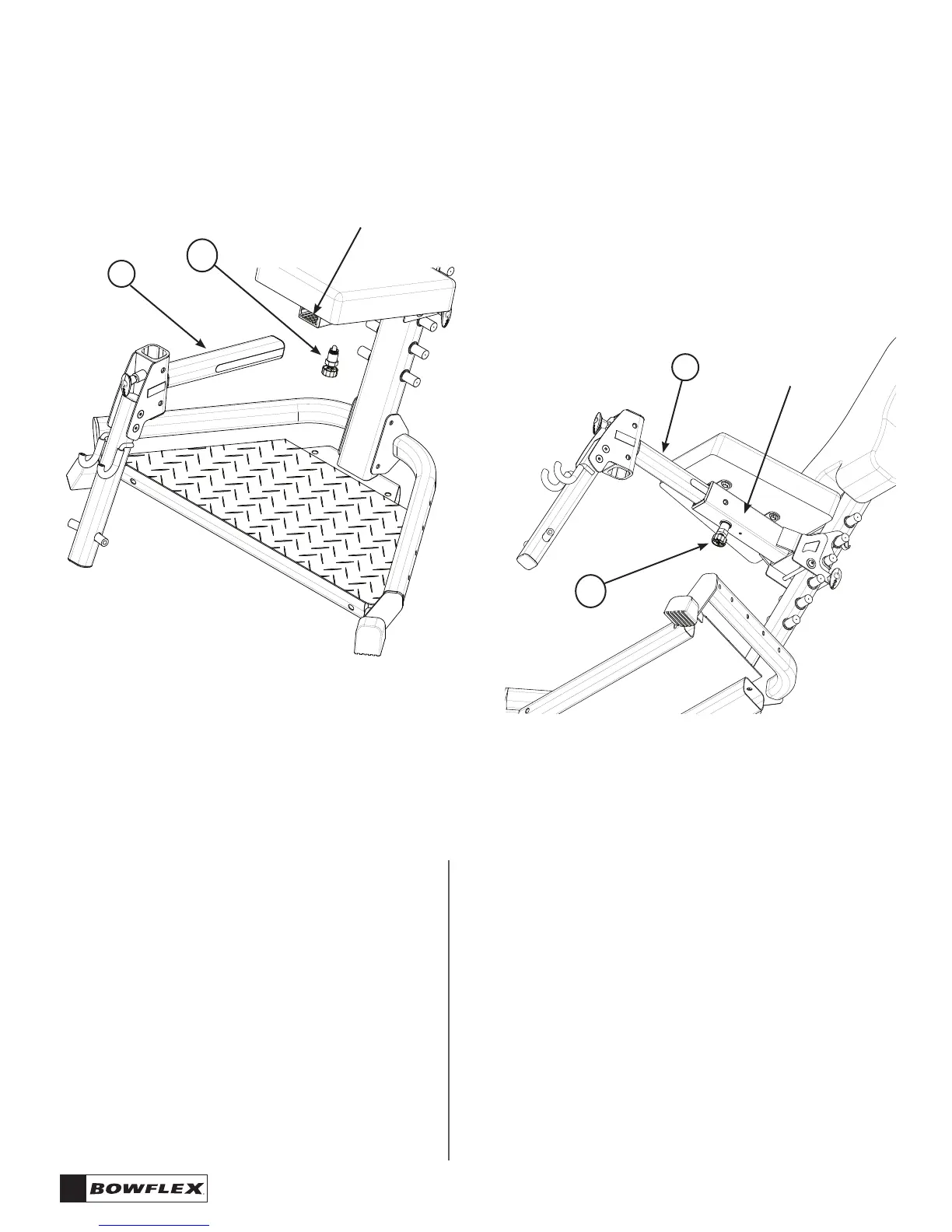

Figure 3a
Leg extension mount
2
17
Parts:
• Preacher Curl Sub-assembly from Step 2
• (1) Locking Knob - Item 17 (for the Bowex
Xtreme
®
home gym without Leg Extension)
Tools:
• 7/32” Hex Wrench
Figure 3b - view from below seat
Leg extension
mount
17
2
Assembly Steps:
3-1 Slide the Backbone Assembly (2) into the Leg
Extension mount under the seat.
3-2 If your home gym is already equipped with a
Locking Knob under the seat, lock the Preacher
Curl Sub-assembly in position.
If your home gym’s seat assembly is not
equipped with a Locking Knob, secure the
Preacher Curl Sub-assembly with the Locking
Knob (17).
