Bowflex Preacher Curl Attachment - Step 4: Install V-Pulley Assembly

9
Parts:
• Preacher Curl Sub-assembly from Step 3
• (2) V-Pulley Assembly - Item 3
• (1) Cable Assembly - Item 4
Hardware:
• (2) 3/8” X 2-3/4” Bolts - Item 12
• (2) 3/8” Washers - Item 14
Tools:
• 7/32” Hex Wrench
Assembly Steps:
4-1 Mount one V-Pulley (3) on the Front Assembly (1)
using the hardware shown. See Figure 4. Tighten
the Bolt only halfway.
4-2 Route one Cable (4) through the opening between
the pulley groove and cable plate. Tighten the
pulley Bolt.
4-3 Repeat for the second V-Pulley Assembly.
STEP 4: Install V-Pulley Assembly
Assembly Instructions

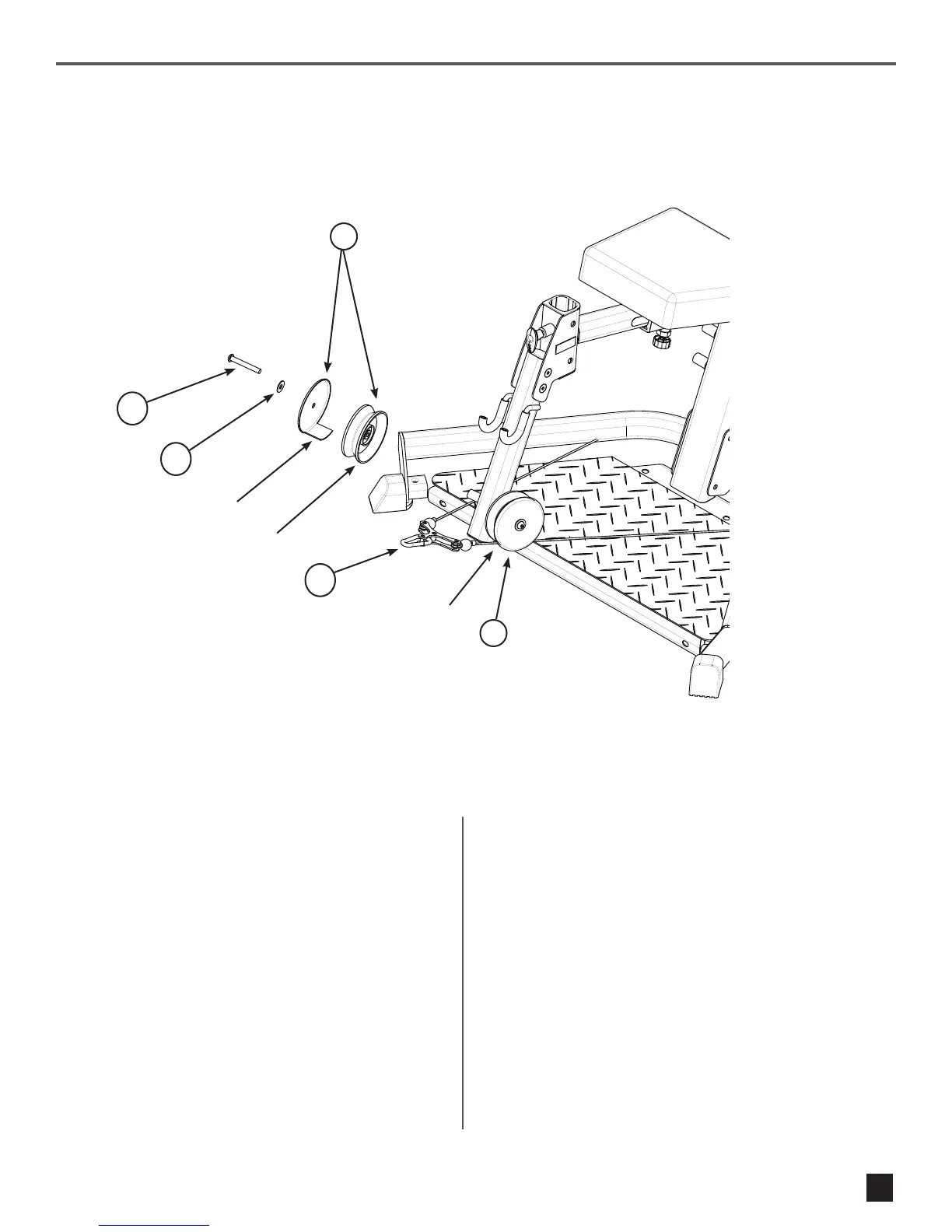

Figure 4 - V-pulley assembly (squat pulleys not shown)
Cable plate
Pulley
12
14
3
Cable route
4
3
