Bowflex Preacher Curl Attachment - Step 5: Attach Cables to Preacher Curl Bar

10
Assembly Instructions
Assembly Steps:
5-1 Attach the snap hook on the yoke of the Cable Assembly
(4) to the D-ring strap on the Preacher Curl Bar (5). See
Figure 5.
5-2 Route the other end of each Cable (4) through the squat
pulley on the same side of the machine, then up to the
chest bar pulley. Connect the Cable to the cable in the
chest bar pulley.
Note: To route the Cables for the Bowex Xtreme
®
2 unit,
thread each Cable between the squat pulley cable and
the pulley groove in the squat pulley.
5-3 Place the squat pulleys in the #1 position (closest to the
Power Rod
®
unit).
STEP 5: Attach Cables to Preacher Curl Bar

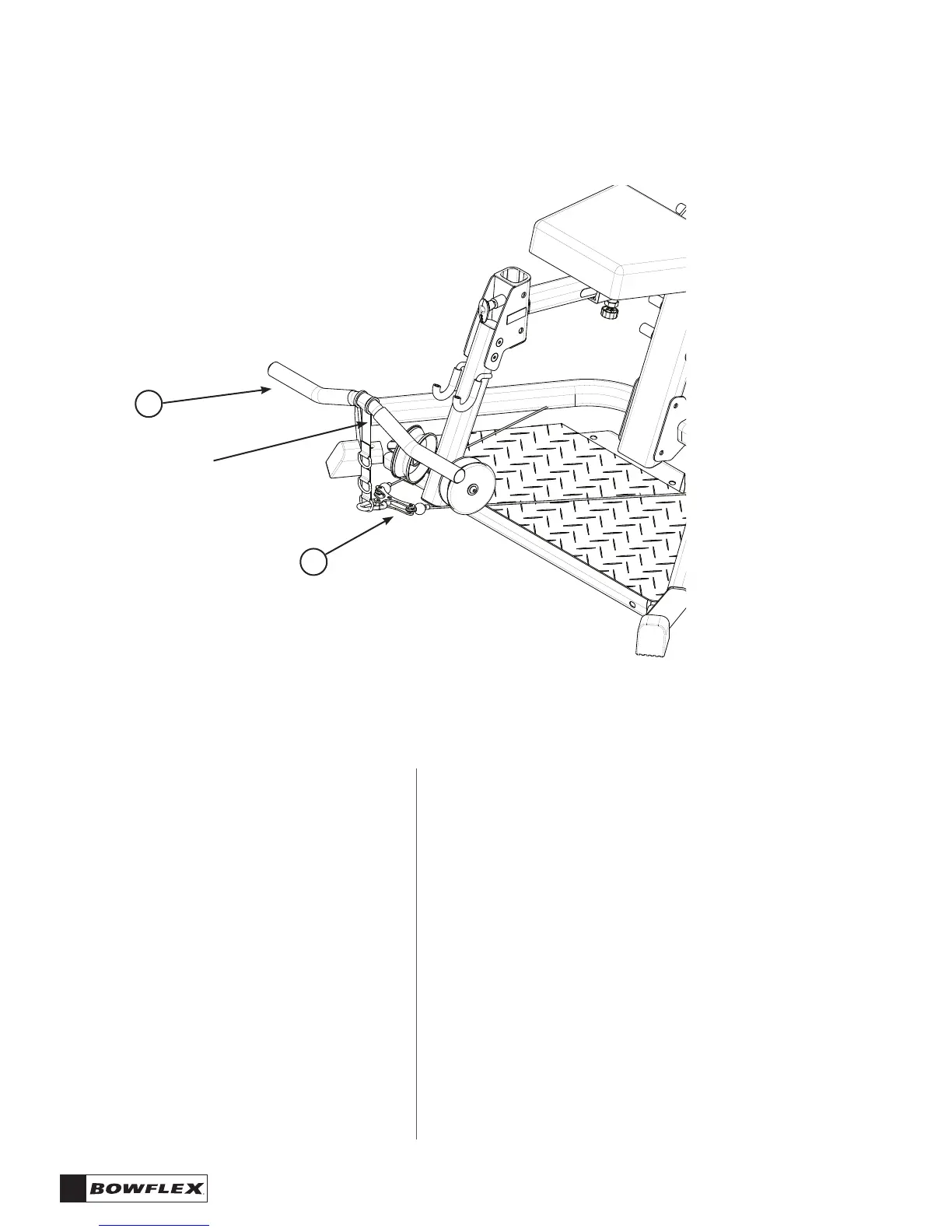

Figure 5 - Attach cable assembly to D-ring strap
(squat pulleys not shown)
5
D-ring strap
4
Parts:
• Preacher Curl Sub-assembly from Step 4
• Squat pulleys and cables on home gym
• (1) Cable Assembly - Item 4
• (1) Preacher Curl Bar - Item 5
