Step 14 Install Four Bar Assembly (continued)
Tools:
• 5/16” Allen Wrench
• 3/4” Wrench or Adjustable Wrench

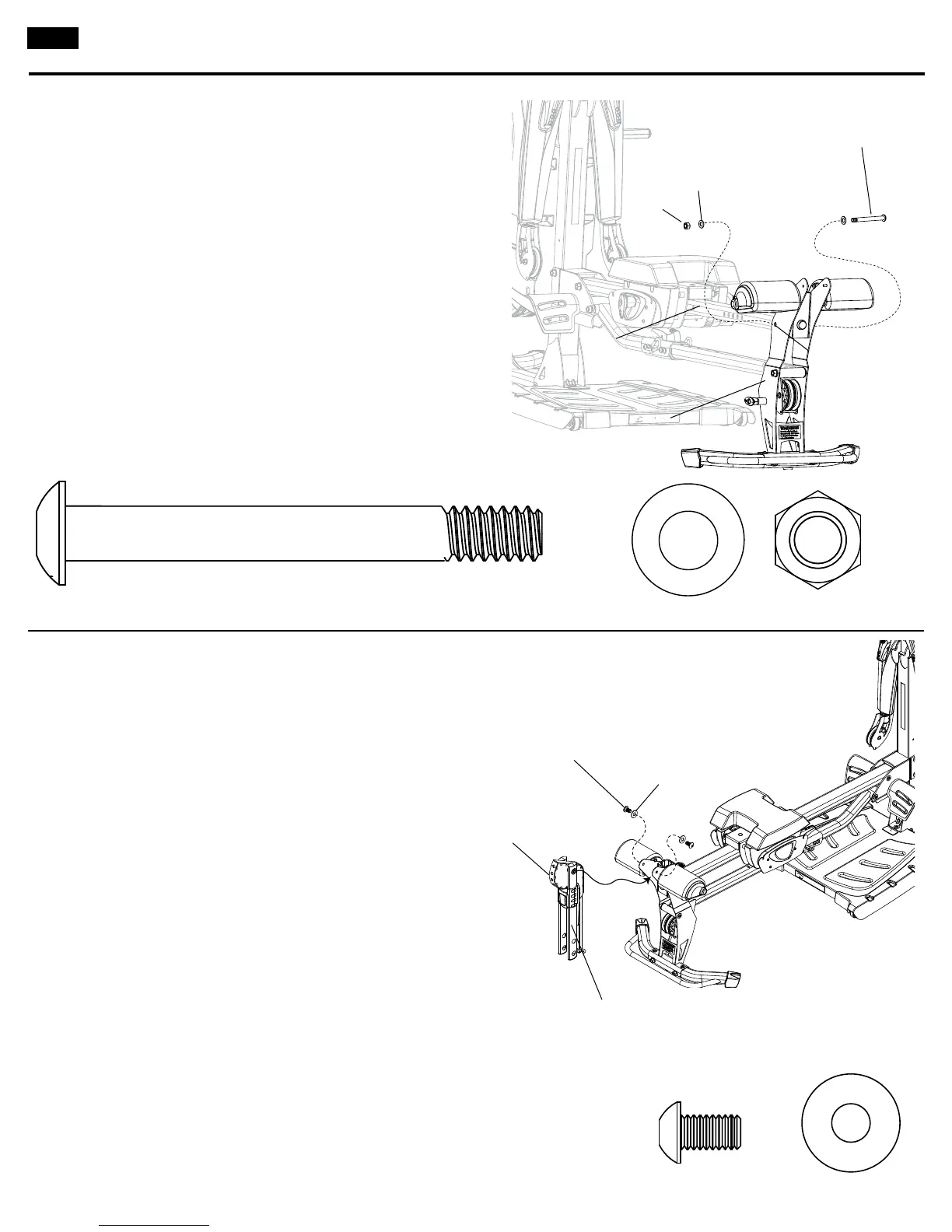

14-1 The upper holes in the Four Bar Assembly
should now be aligned with the hole in
the Seat Rail. Install hardware and
completely tighten hardware from steps
11 and 12.
1 Allen Bolt (1/2” X 4 1/4”)
2 Washer (1/2”)
1 Nylock Nut (1/2”)
Hardware (1:1):
1/2”x 4 1/4” Allen Bolt
1/2” Washer
1/2” Nylock Nut
Seat Rail
Four Bar Assembly
Upper hole
Step 15 Install Leg Extension Assembly
Parts:
• Leg Extension Assembly (Box 3)
Tools:
• Two 5/16” Allen Wrenches
15-1 Remove the twist tie from the Leg
Extension Assembly. Align the Holes
in the Four Bar with the holes in the
Leg Extension Assembly.
15-2 Install and completely tighten hardware.
Hand tighten bolts on each side. Then tighten
with Allen Wrench. If the bolts rotate in the
chrome shaft of the Leg Extension Assembly,
look through the top notch hole of the
Assembly. If you see chrome, turn the bolt
on one side until you see black. Insert a small
4” screwdriver to lock the shaft in place and
tighten the other side bolt.
2 Allen Bolts (5/16” X 1/2”)
2 Washer (5/16”)
Hardware (1:1):
Leg Extension Assembly
5/16”x 1/2” Allen Bolt
5/16” Washer
Assembling Your Bowflex Revolution
®
Home Gym
Top Notch Hole
To Next Page
