13
Side view of pre-tension
SpiraFlex pack
Hooks toward
main unit
Pre-tension
SpiraFlex Pack
®

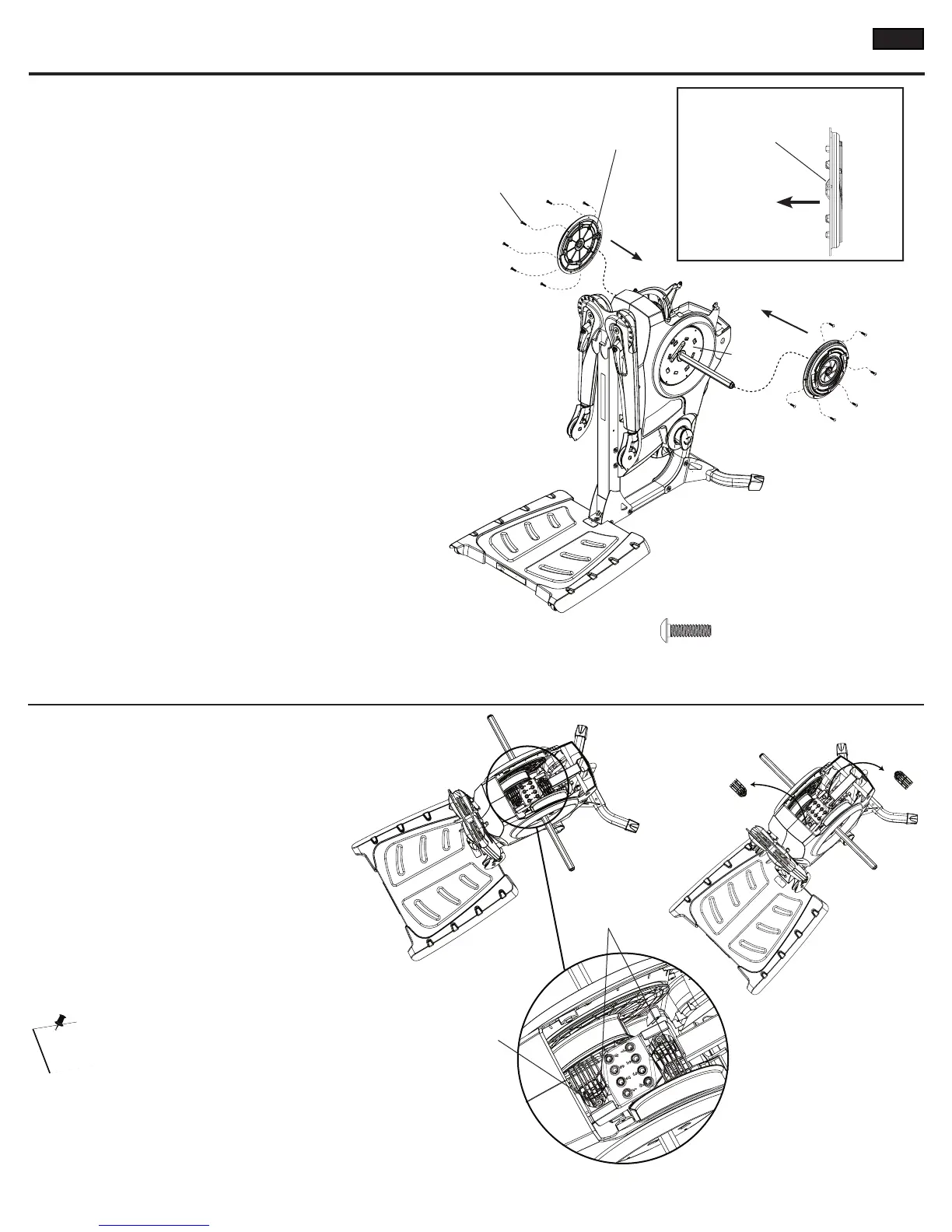

Step 6 Remove Cam Holders.
Tools:
• Phillips Head Screwdriver
6-1 Use a Phillips Head Screwdriver
to remove the Cam Holders.
Note: The Cam Holders are only
needed when the Spirafl ex
®
packs are not installed and
may be discarded or recycled.
Cam Holders
Allen Bolt
Remove Cam Holders
Cam
#8-32 X 3/8” Allen screw
®
Hardware (1:1): Hardware for this step located in Box 1
12 Allen Bolt ( # 8-32 X 3/8”)
Assembling Your Bowfl ex Revolution
™
Home Gym
Step 5 Install Pre-Tension SpiraFlex® Packs.
Tools:
• 3/32” Allen Wrench (Box 1)
Parts:
• Pre-tension SpiraFlex® Packs (Box 1)
5-1 Align the rounded edge of the Pre-tension
SpiraFlex® Pack with the rounded edge of
the Tension Shaft and slide it all the way
onto the shaft.
5-2 When the Pack makes contact with
the Cam, continue to apply pressure
and twist the Pack to the left until
you feel the Pack seat into place.
5-3 Install and completely tighten
hardware, installing screws in a star pattern
around pre-tension pack.
