14

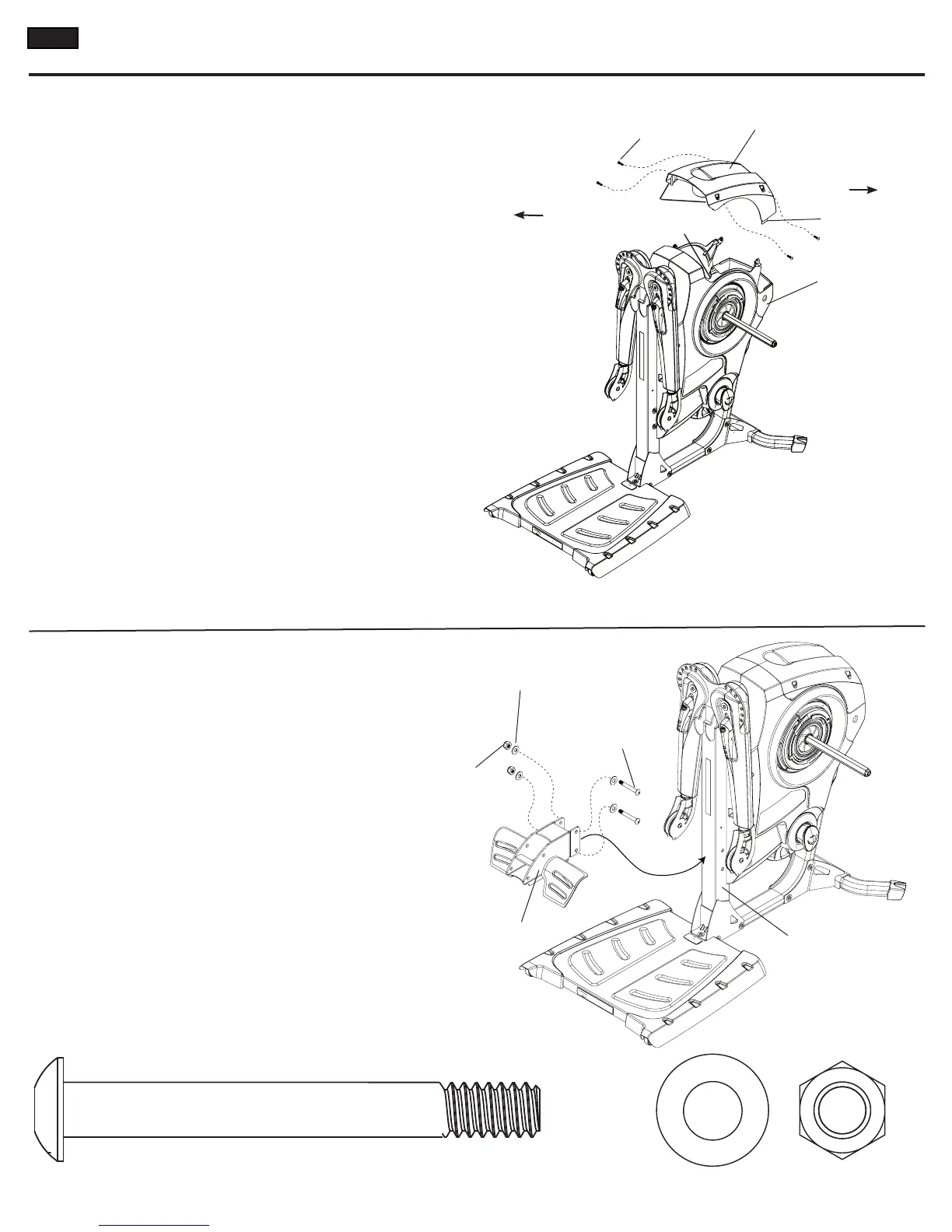

Step 7 Replace Top Cover
Parts:
• Top Cover
Tools:
• 1/8” Allen Wrench
7-1 If the screws are still in the Top Cover
from Step 1, remove them to avoid
dropping them into the Main Unit.
7-2 Replace the Top Cover front end fi rst.
Make sure inside edge of the Shroud
fi ts into the slots in the Top Cover.
Now seat the rear making sure the
tabs on the Top Cover fi t inside the
Shroud.
7-2 Install and completely tighten the
hardware.
Make sure inside edges
of Shroud fi t in slots
on Top Cover
Inside Edge
Slots
Front
Rear
Top Cover
Ta b
Shroud
Step 8 Install Low Row Foot Plate
Parts:
• Low Row Foot Plate (Box 4)
Tools:
• 5/16” Allen Wrench
• 3/4” Wrench or Adjustable Wrench
8-1 Align holes in the Foot Plate with the
holes in the Main Unit.
8-2 Install and completely tighten
the hardware.
Hardware (1:1):
2 Allen Bolt (1/2” X 4 1/4”)
4 Washer (1/2”)
2 Nylock Nut (1/2”)
Low Row Foot Plate
Main Unit
1/2” Washer
1/2” Nylock Nut
1/2”x 4 1/4 Allen Bolt
Allen Screw
Assembling Your Bowfl ex Revolution
™
Home Gym
