Step 9 Install Lower Rail
Parts:
• Lower Rail (Box 5)
Tools:
• 5/16” Allen Wrench
• 3/4” Wrench or Adjustable Wrench

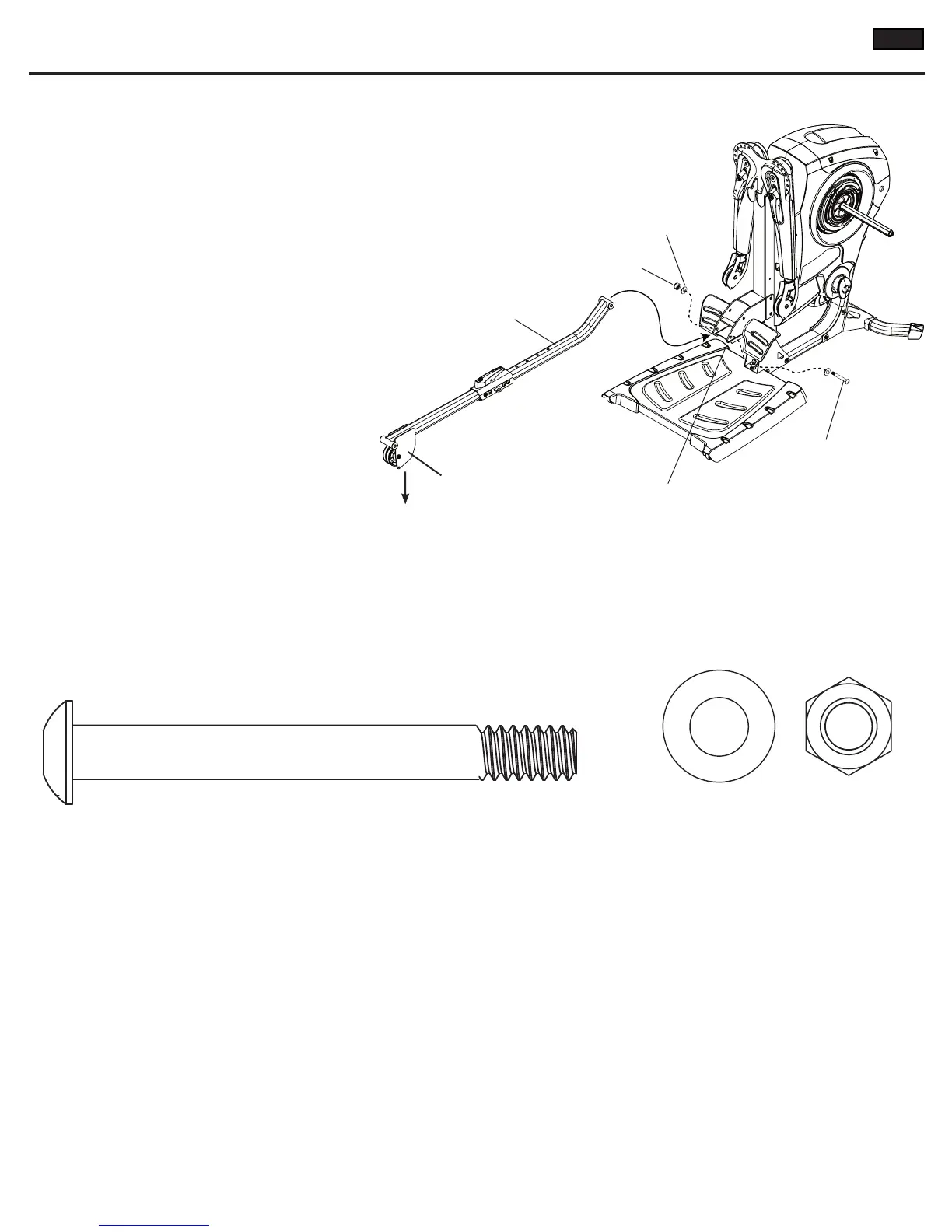

9-1 Remove the twist ties through the
bushings.
Align the Lower Rail with the
lower holes in the Low Row
Foot Plate. Make sure the
pulley assembly on the Lower
Rail is pointing downward.
9-2 Install and completely
tighten the hardware.
1/2”x 4 1/2” Allen Bolt
1/2” Washer
1/2” Nylock Nut
Lower Rail
Pulley Assembly
Lower Holes in
Low Row Footplate
Hardware (1:1):
1 Allen Bolt (1/2” X 4 1/2”)
2 Washer (1/2”)
1 Nylock Nut (1/2”)
