Assembly Guide
10
Step 8b: Leg Assembly Rollers (Optional Attachment)
Locate the following items:
• (2) 3/4" Chrome Tubes (Item #19)
• (4) Foam Rollers (Item #20)
• (4) 3/4" End Caps (Item #21)
Insert the Chrome Tubes (Item #19) through the upper hole and
one of the lower holes of the Leg Extension (select the correct

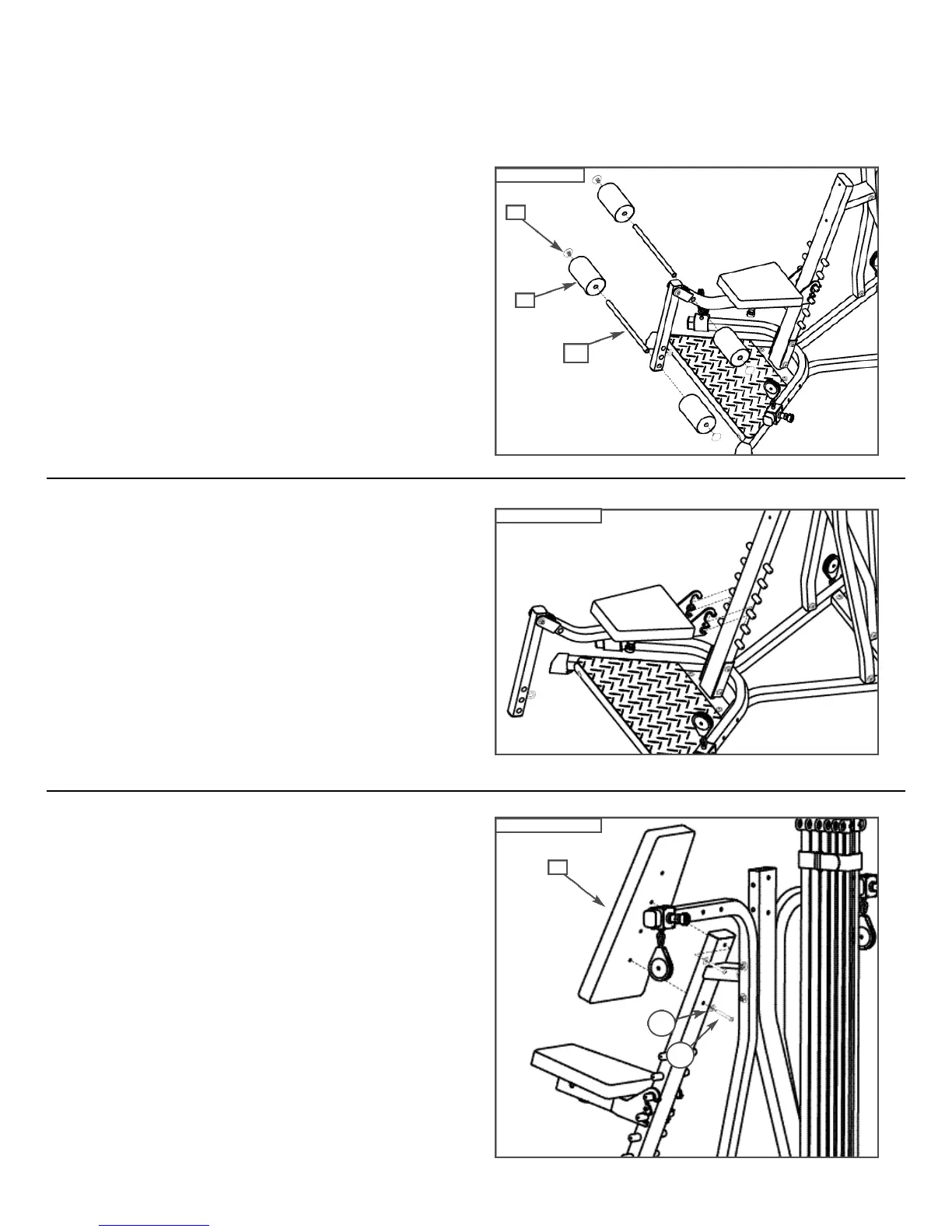

lower hole for your height and comfort) as shown in Figure J.
Slide the Foam Rollers (Item #20) onto the ends of both Chrome
Tubes, then secure the Foam Rollers with an End Cap (Item #21).
NOTE: You may need to use a Rubber Mallet to fully insert the
End Caps into the Tube ends.
Step 9: Attach the Seat Bottom to the Seat Support Rail
Locate the following items:
• Seat Backbone w/Seat Assembly (from Step 8)
The Seat can be moved easily to accommodate a large number
of positions.
With the seat facing upward, align the top two hooks on the Seat
Backbone with one of the lower pair of “pins” on the Seat Support
Rail. Tip the seat up while engaging the hooks, and then rotate
down for use. Take care to only hook the Seat onto the lower pins
until the Seat Back Pad is attached.
NOTE: Reverse this procedure to remove the Seat.
Step 10: Attach the Seat Back Pad to the Seat Support Rail
Locate the following items:
• Seat Back Pad (Item #15)
• Main Assembly (from Step 7)
• (2) 5/16" X 2 1/2" Button Head Screws (Item #D)
• (2) 5/16" Washers (Item #M)
The Seat Back Pad (Item #15) has two pair of holes on the back.
Before you attach the Seat Back Pad to the Seat Support Rail,
assess which holes to use for your height.
Position the Seat Back Pad against the Seat Support Rail as shown
in Figure L. Align the selected holes on the Seat Back Pad with
the two holes on the Seat Support Rail.
With (2) 5/16" Washers (M) over (2) 5/16" X 2 1/2" Button
Head Screws (D), secure the Seat Back Pad tightly to the
Seat Backbone.
Figure K
Figure J
Figure L
D
M
21
20
19
15
