BOXER 322D - Section 2 - Operating Controls

2.1
Section 2 - Operating Controls
Component Locations

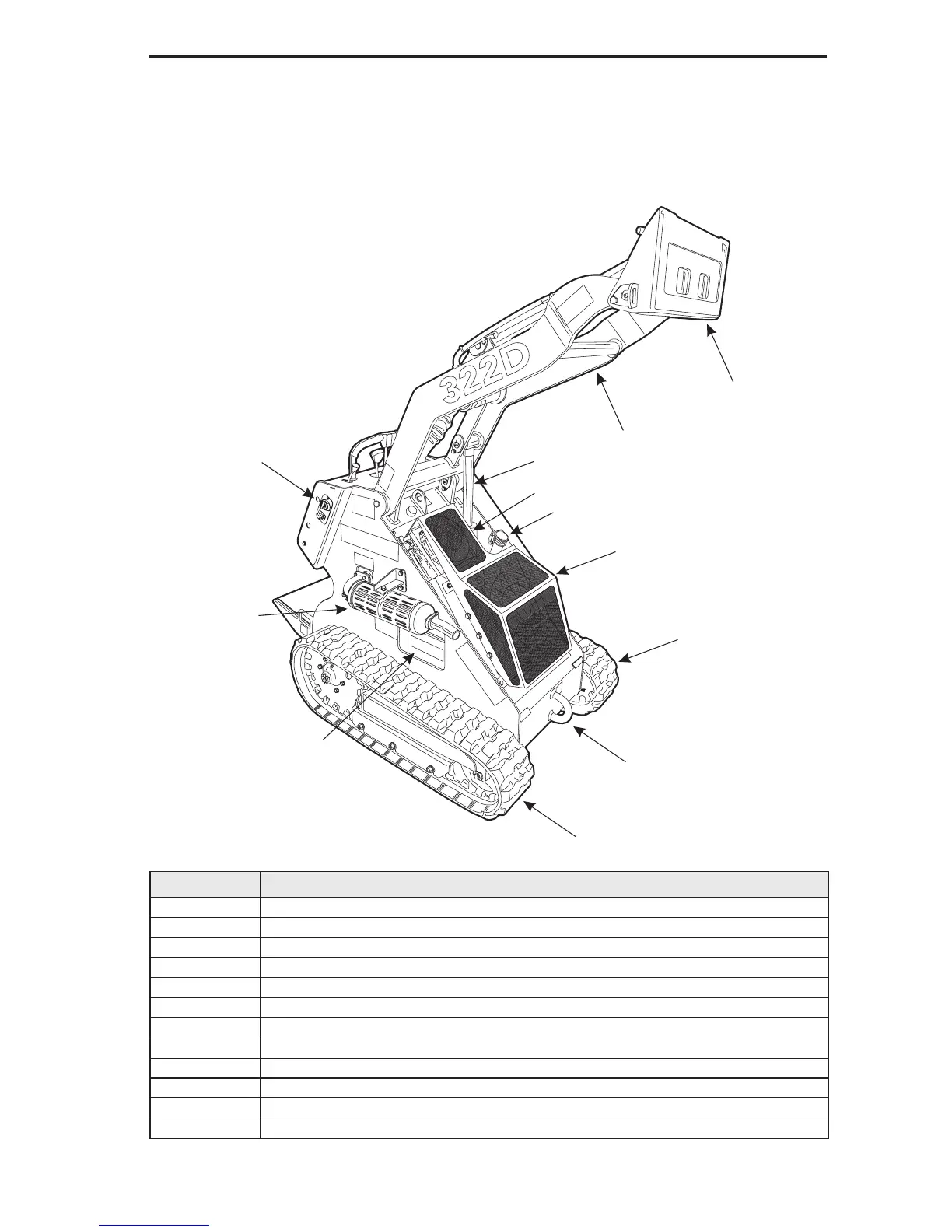

Right Front View
Item No. Description
1 Attachment mounting plate
2 Loader arms
3 Boom lift cylinder
4 Hydraulic cooler
5 Radiator ller pressure cap
6 Engine radiator
7 Left track assembly
8 Front tie-down ring
9 Right track assembly
10 Battery
11 Mufer
12 Ignition switch and hour meter
