BOXER 322D - Left Rear View

Operating Controls
2.2

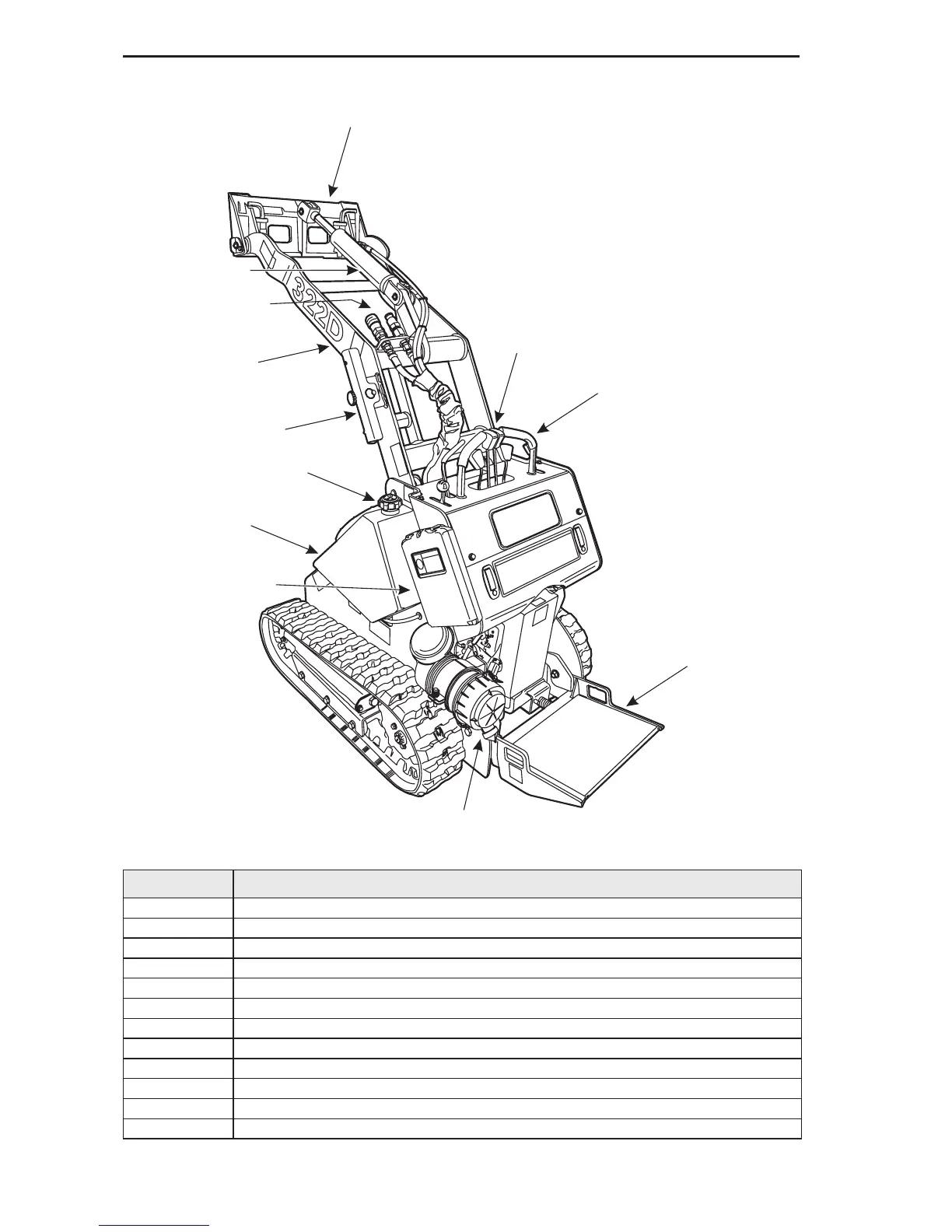

Left Rear View
Item No. Description
1 Attachment mounting plate
2 Operating controls
3 Hand grip
4 Operator’s Platform
5 Air cleaner assembly
6 Manual holder
7 Fuel Tank
8 Fuel ller cap/fuel gauge
9 Safety support
10 Loader arms
11 Attachment hydraulic quick connects
12 Tilt cylinder
1
12
11
10
9
2
3
8
7
6
5
4
