Operating Controls
2.7

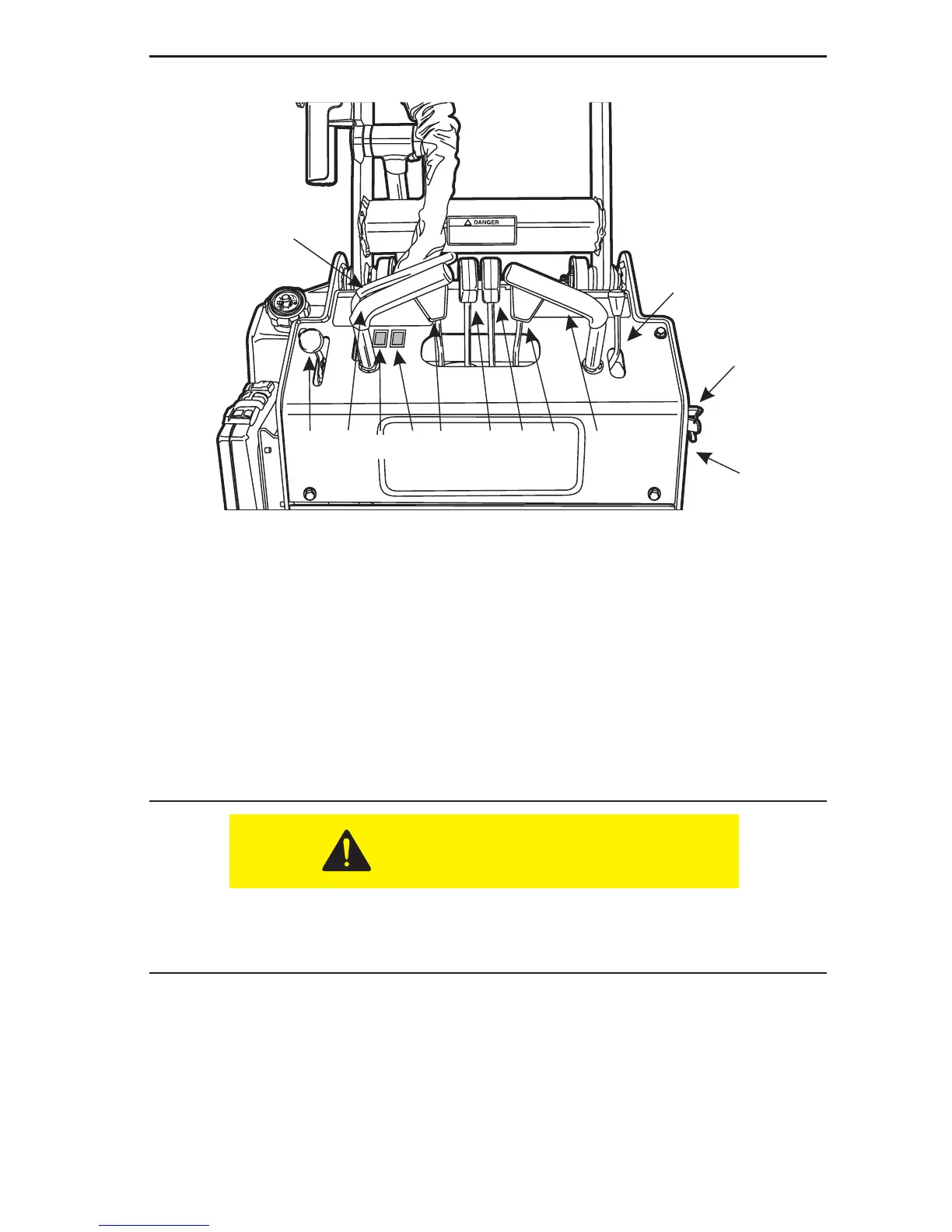

Operating Controls Description con’t
11. Hand Grip
12. Engine Throttle – Moving the control lever upwards increases engine speed and moving
the lever downwards slows the engine to idle speed.
13. Attachment Activation Lever/Operator Presence Control – With your left hand,
squeeze the AUXILIARY attachment control lever towards the hand hold to activate the
attachment in the FORWARD motion.
NOTE:The lever is spring loaded and when released, will automatically move from the
FORWARD motion position to the NEUTRAL position, stopping attachment motion.
If you want to reverse the operation of the attachment, move the auxiliary control lever to the
REVERSE position. The control lever will remain in the REVERSE position detent until it
is moved to the NEUTRAL position.
DO NOT attach an auxiliary hydraulic cylinder to the hydraulic circuit controlled by
the Attachment Activation Lever/Operator Presence control. Hydraulic pressure will
not be held in the system when this control is returned to the NEUTRAL position.
