4. When the top of the attachment mounting plate (Item 1, Figure 3–28) is rmly seated in
the attachment mounting bracket (Item 2, Figure 3–28), tilt the attachment mounting plate
backward slightly to allow the lower edge of the attachment mounting bracket to slide into
place on the attachment mounting plate.

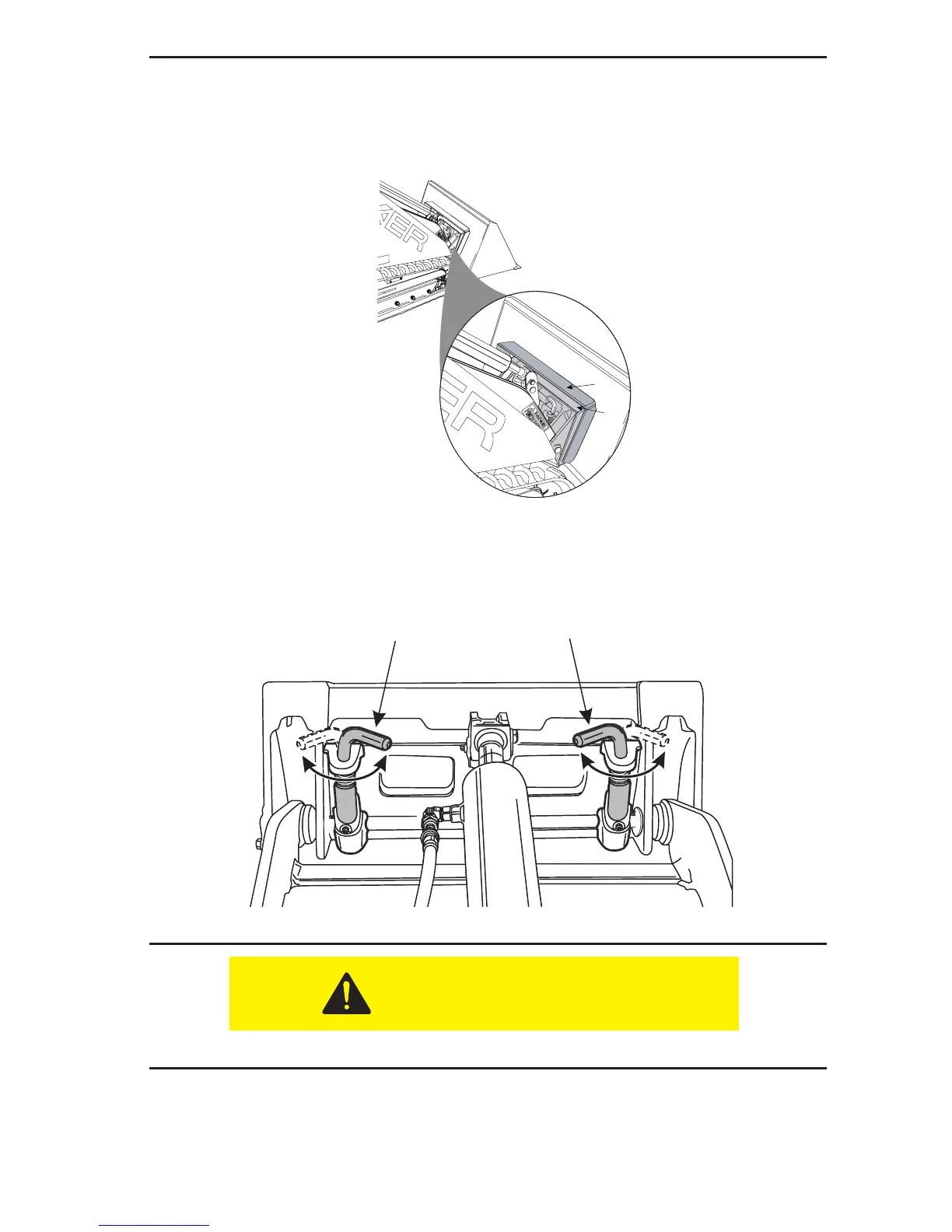

Figure 3-28 Attachment Installed
5. Shut the engine o.
6. Rotate the attachment lock pins (Item 1, Figure 3–28 and Item 1, Figure 3–29) into the
locked position, securing the attachment to the machine.
Figure 3-29 Attachment Locks in Locked Position
DO NOT go underneath the attachment when it is raised.
7. Start the engine and raise the attachment o the ground. Visually inspect the bottom edge
of the attachments mounting plate to make sure that both of the attachment lock pins are
securely holding the attachment in position.
