Routine Service and Maintenance
4.12
g. Adjust the track tension by rotating the tension bolt (Item 3, Figure 4–12)
COUNTERCLOCKWISE to tighten the track and CLOCKWISE to loosen the

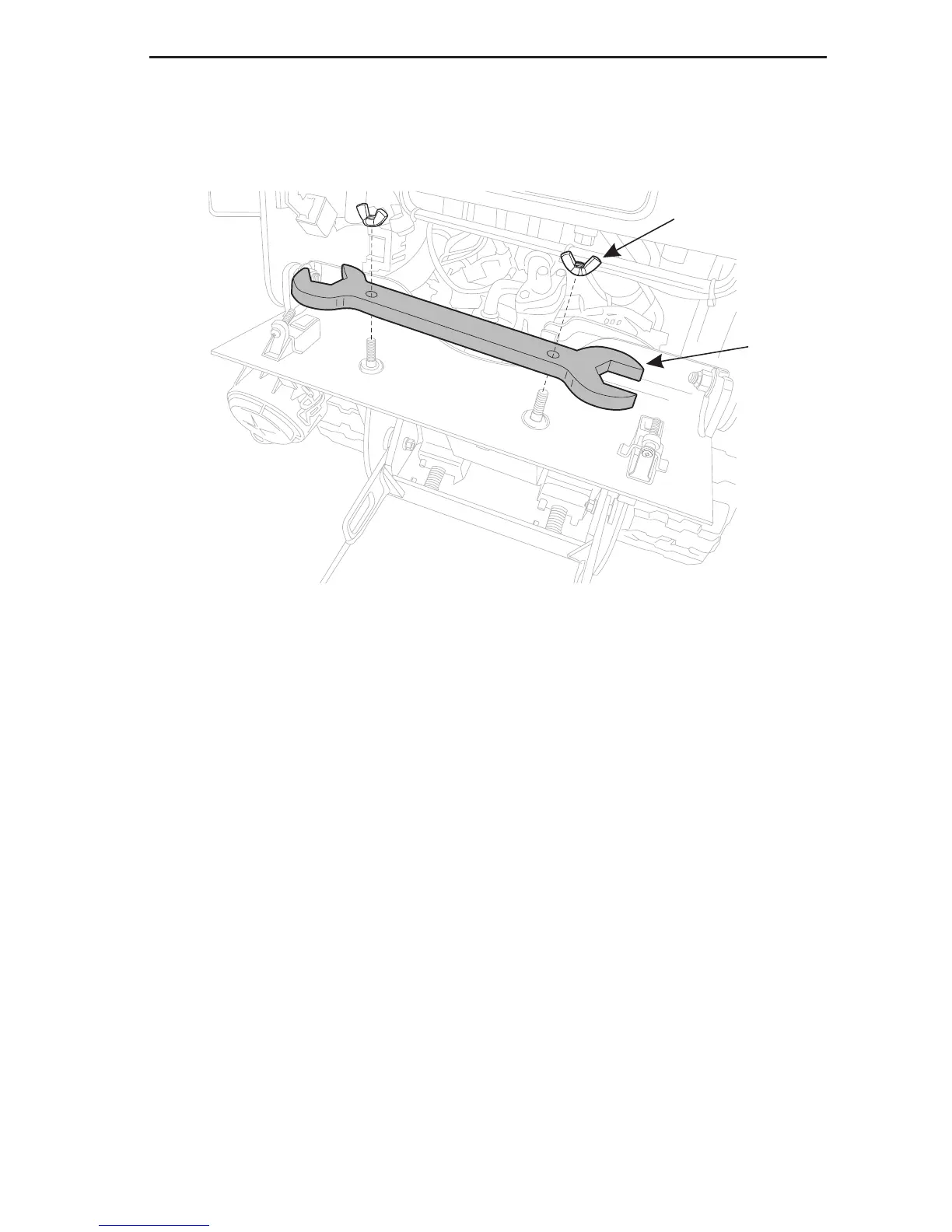

track. Use the 1 5/8” wrench (Item 2, Figure 4–13) located under the removable service
access cover. Remove the wing nuts (Item 1, Figure 4–13) securing the track adjusting
wrench to the service access cover, and then remove the wrench.
Figure 4-13 Track Adjustment Bolt Lock Plate
h. With the tracks still o the ground, start the engine and rotate just the track being
adjusted three or four times in both forward and reverse. Shut o the engine after
rotating the track.
i. Re-measure the deection dimension.
j. Check the other track for the correct tension measurement. If needed, repeat Steps 11d
- 11i.
k. Lower the machine onto the ground.
