Bradley LD-3010 - Page 6

LD-3010 Series Installation
6 2/27/2020 Bradley • 215-1219 Rev. Q: ECO 19-08-037B
Standard Height
(HS-TR1
Undermount
Bowl)
16½"
(418)
9"
(229)
22"
(559)
17"
(432)
Juvenile Height
(HS-TR1
Undermount
Bowl)
27"
(686)
34"
(864)
16½"
(418)
9"
(229)
22"
(559)
24"
(610)
31"
(864)
17"
(432)

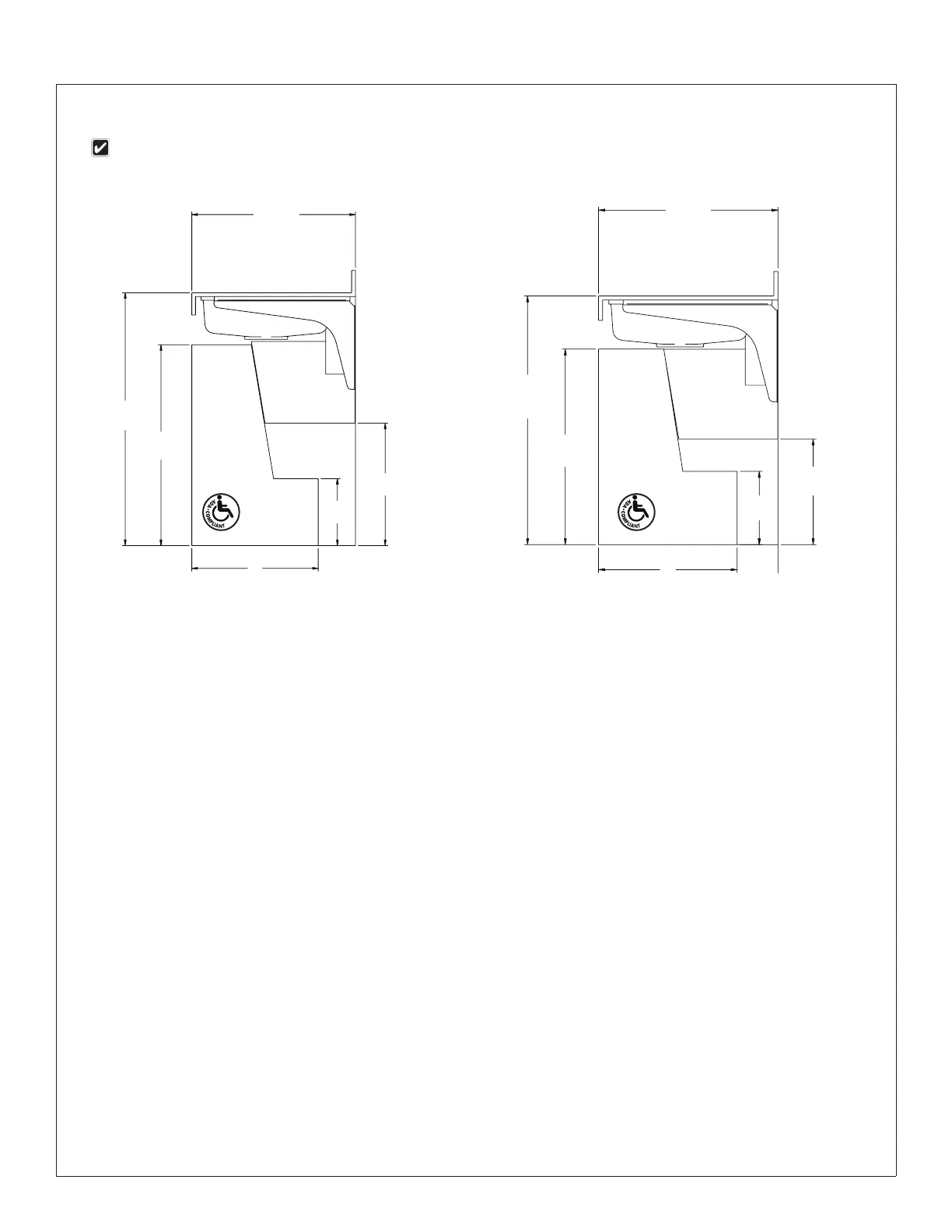

Dimensions - Side View (mm)
Surface mount brackets shown. Also available with carrier
sleeves for concealed in wall carriers.
