Brahms GSM11 - General Diagram

EN

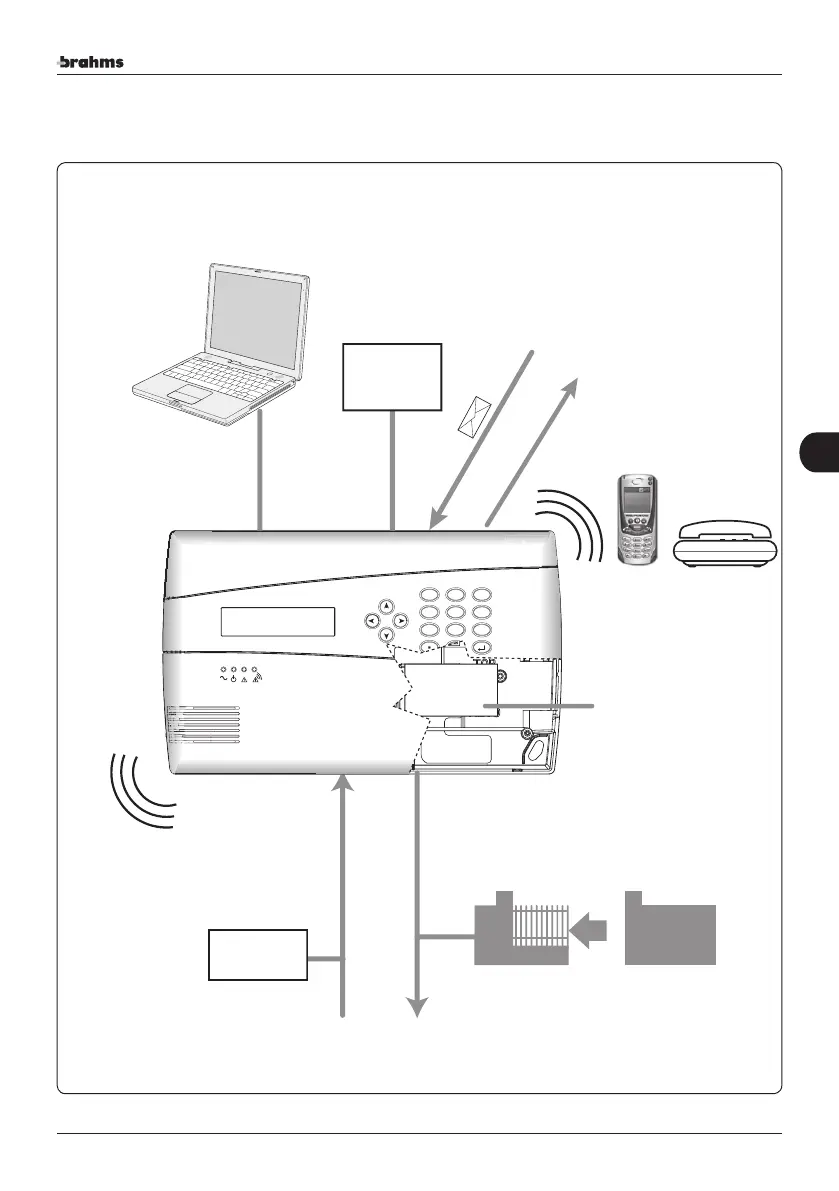

GENERAL DIAGRAM
+ – NC C NO + 01 02 03 04 RST – I1 – I2 I3 – I4
AIN
VCC
EXT
GND
EXT
AOUT
CN2
SW2
SW1
SW4
SW3
SW5
SW6
SW7
SW8
SW9
SW10
SW11
SW12
SW13
SW14
SW15
SW16
CN1
SW25
LOCK
M2
NA1
NC1
C2
NC2
NA3
C3
NC3
NA4
C4
NC4
RL2
RL3
RL4
Setting
2/4 Inputs 4 Open
Collector
Outputs
Control
unit
4 relay optional
output module
Optional
external
antenna
Listening
function
Zero cost activation and confirmation from GSM
Controls and
customisations
Alarms definition
up to 20 users
1
2 3
6
4
7 8 9
0
5
Only GSM20 and
GSM21
41
Installer's Manual-Description of the card
41
