Brahms GSM11 - Control Panel; Gsm Telephone Dialler Use; LED Functions; Main Keypad Functions

GSM TELEPHONE DIALLER USE

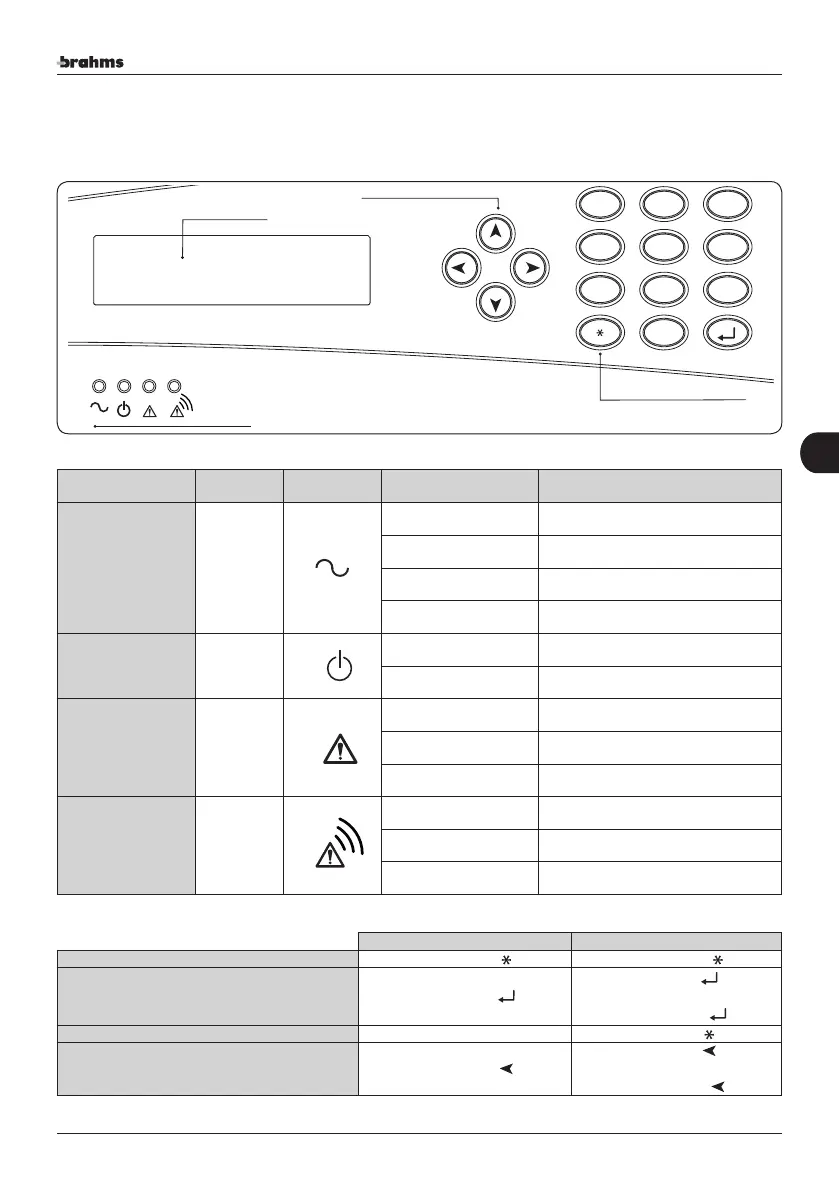

Control panel
Description LED colour
Screen printed
symbol
Status Meaning
Power supply status Green
On
Primary power supply and batteries
present
Slow flashing
Primary power supply present (battery
fault)
Quick flashing
Battery power supply (primary power
supply fault)
Off GSM telephone dialler not powered
Device status Green
On Armed status
Off Disarmed status
Alarm monitoring Red
On Input activated;
Flashing Input activated in disarmed status
Off No active input
GSM line status Red
On No GSM signal
Flashing Low GSM signal
Off GSM signal OK (with DL1 flashing)
LED functions
Main keypad functions
GSM11 GSM21
Programming menu access Master Code Master Code
System arming/disarming
Master Code
User Code
/
Master Code
Partial arming/disarming - User Code
Interruption of the call cycle Master Code
User Code
/
Master Code
1
2 3
6
4
7 8 9
0
5
STATUS LED
FUNCTION KEYS
FUNCTION ARROWS
DISPLAY
