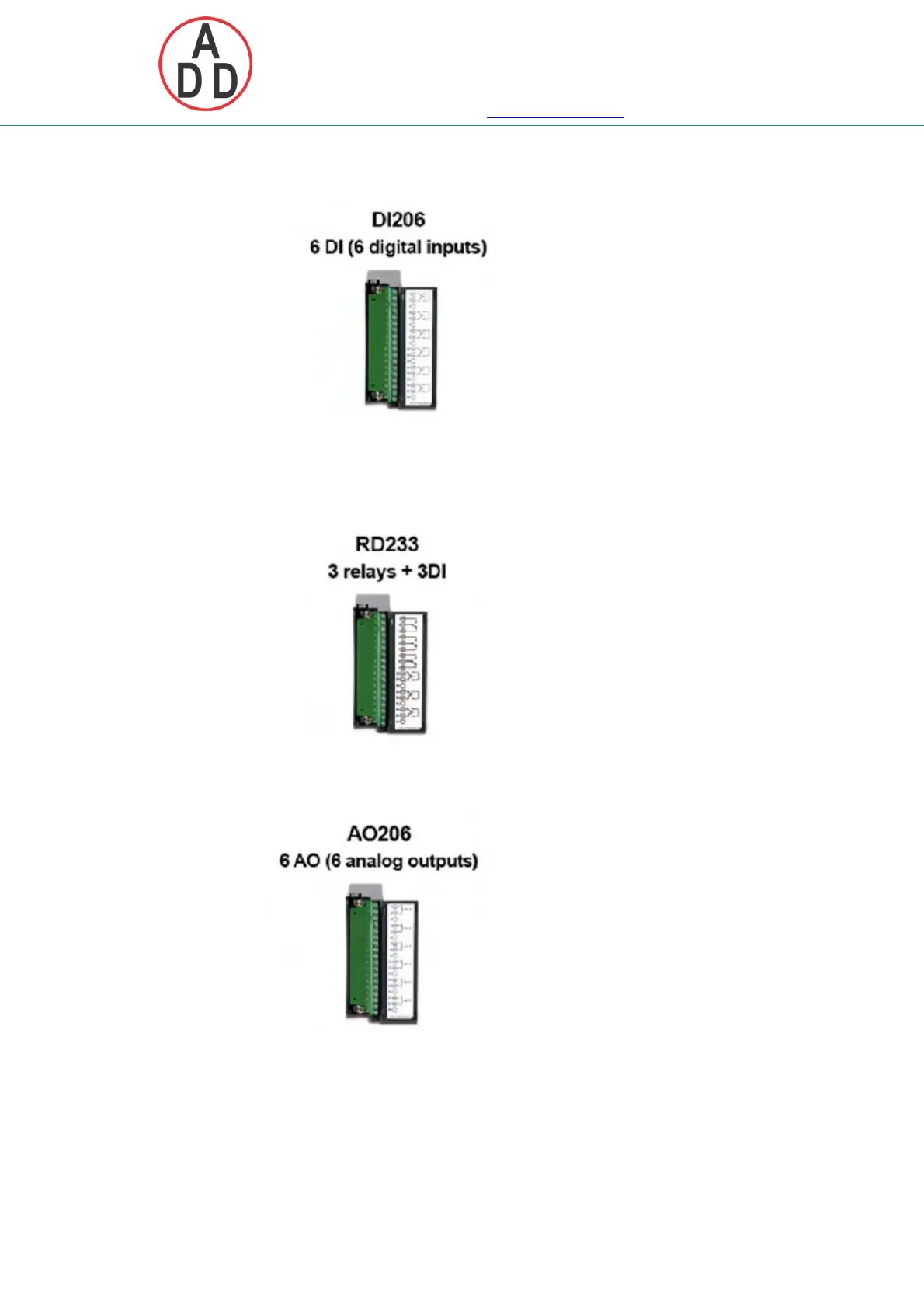

Digital Input card (DI206): Each card includes 6 channels. Logic Low: -5V minimum,
0.8V maximum, Logic High: 3.5V minimum, 24V maximum
Relay Output and Digital Input Card (RD233): Each Card includes 3-digital Inputs and
3-Relay Outputs. For Digital Inputs , Logic Low: -5V minimum, 0.8V maximum, Logic
High: -3.5V minimum, 24V maximum. For Relay Outputs , the Contacts are rated 5
Amp/240 VAC
Analog Output cards (AO206): Each card includes 6 channels. They are used for 4-
20mA, 0-20mA current output, 0-5V, 1-5V, 0-10VDC voltage output.
Note1 : The IO Cards should not be removed or Inserted to the PR when the
Power is ON. This should be carried out at Power OFF Condition only.
Note2 : For Thermocouple Inputs , 1 hour inputs warm up is neccessary for first
initial set up .
