Save: Save configuration from recorder to USB Stick or SD Card. To read the
configuration from USB Stick for the first time or any time configuration has been
changed, it is important to press “Save” soft button to save configuration changes
to USB Stick or SD Card beforehand.
Load: Load configuration from storage media USB stick or SD Card to recorder.
Default: If the configuration is set incorrectly, Default is a useful key to recall the
default settings on the analog input card inserted into rear expansion slot.
Home: Go to home page.

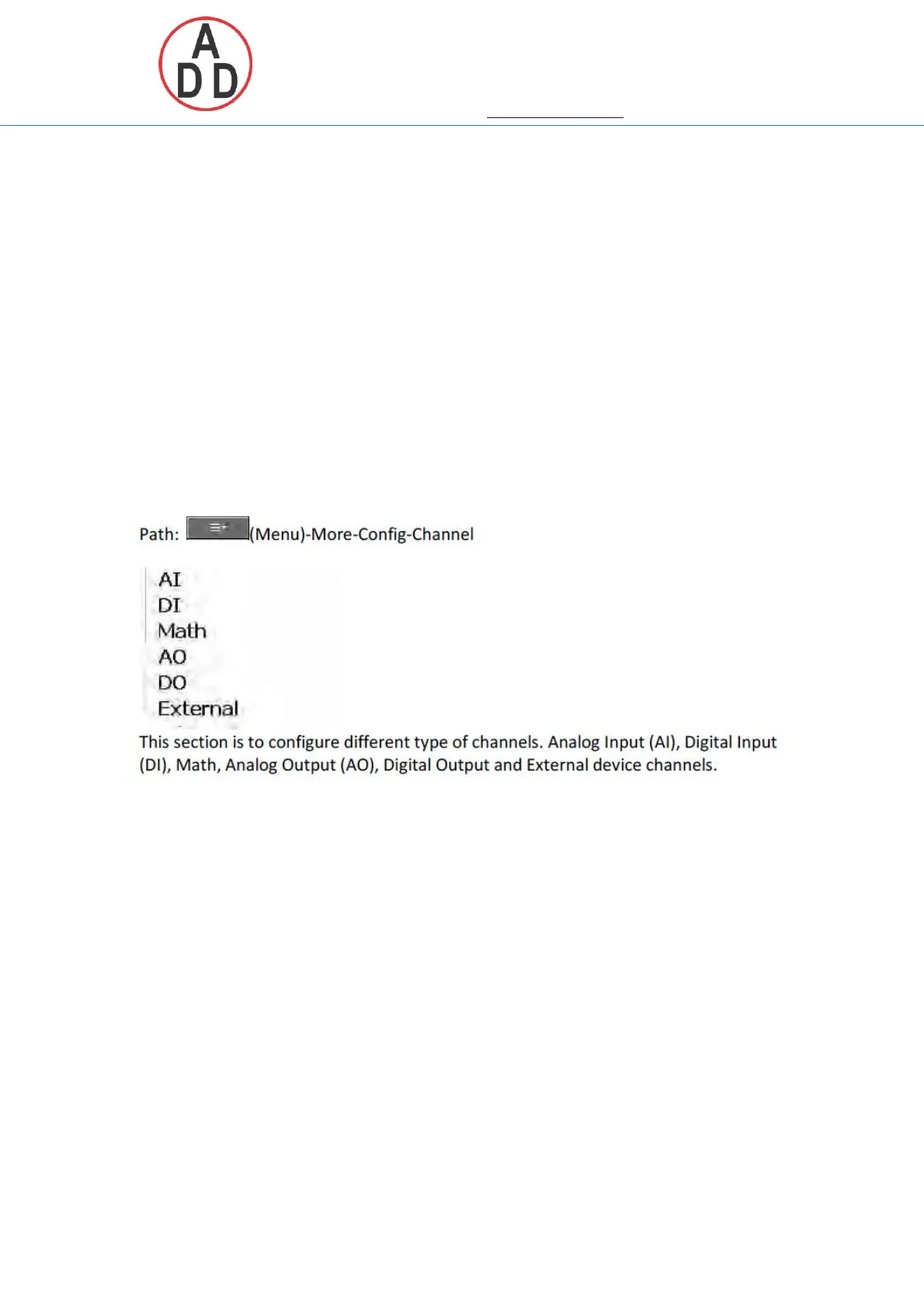

4.1 Channel
4.1.1 Analog Input
After entering the Configuration mode, in Channel, select “AI” then Press the
“Enter” key to get into Analog Input Channel mode. It displays the Analog input AI1,
first analog input channel configuration page. Press directional keys 〈 〉at the
bottom to select other channels. Press directional keys↑↓ on the right hand side to
select the column. After completing Configuration, press “Back” soft button, then
press “Home” soft button to return to main display, then, all configurations will be
memorized.
60
