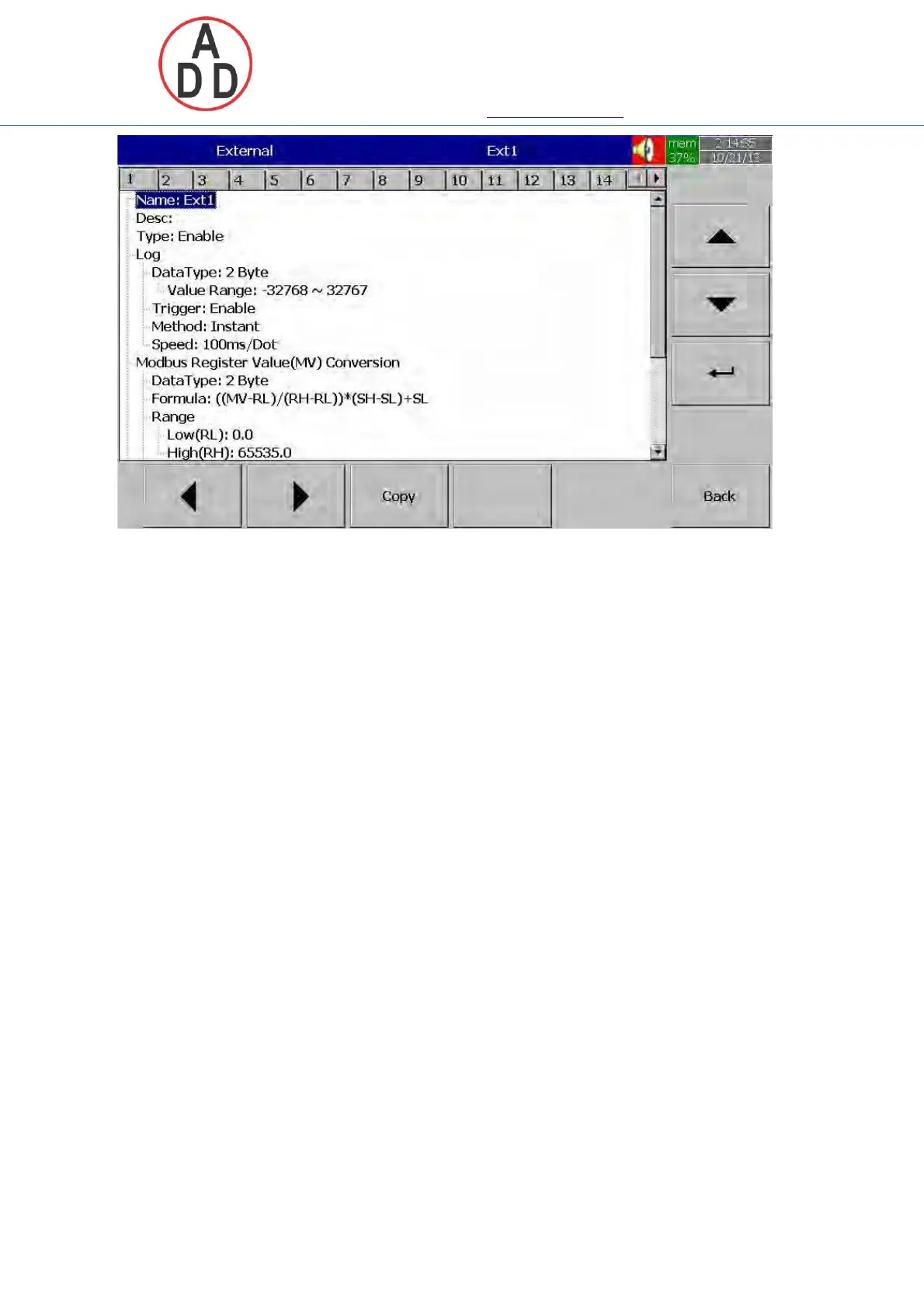

Please refer section “Communication” for examples of external channels
4.1.7 Jobs
Various types of jobs can be selected as follows.
No Action: Do nothing
Send Email: Send Email directly from Recorder
Pause: Stop logging data.
Start: Start logging data.
Sound Buzzer: Sound the buzzer. It stops once any key is pressed.
Dump Data: To dump data from internal memory to external memory.
DO Latch On: Set digital output / relay on, and then select Target, say from one
of DO 1 to DO 6. The relay is latched when it is activated.
DO Latch Off: Set digital output / relay off, and then select Target say, from one
of DO 1 to DO 6. The relay is latched when it is activated.
85
