4. CONFIGURATION

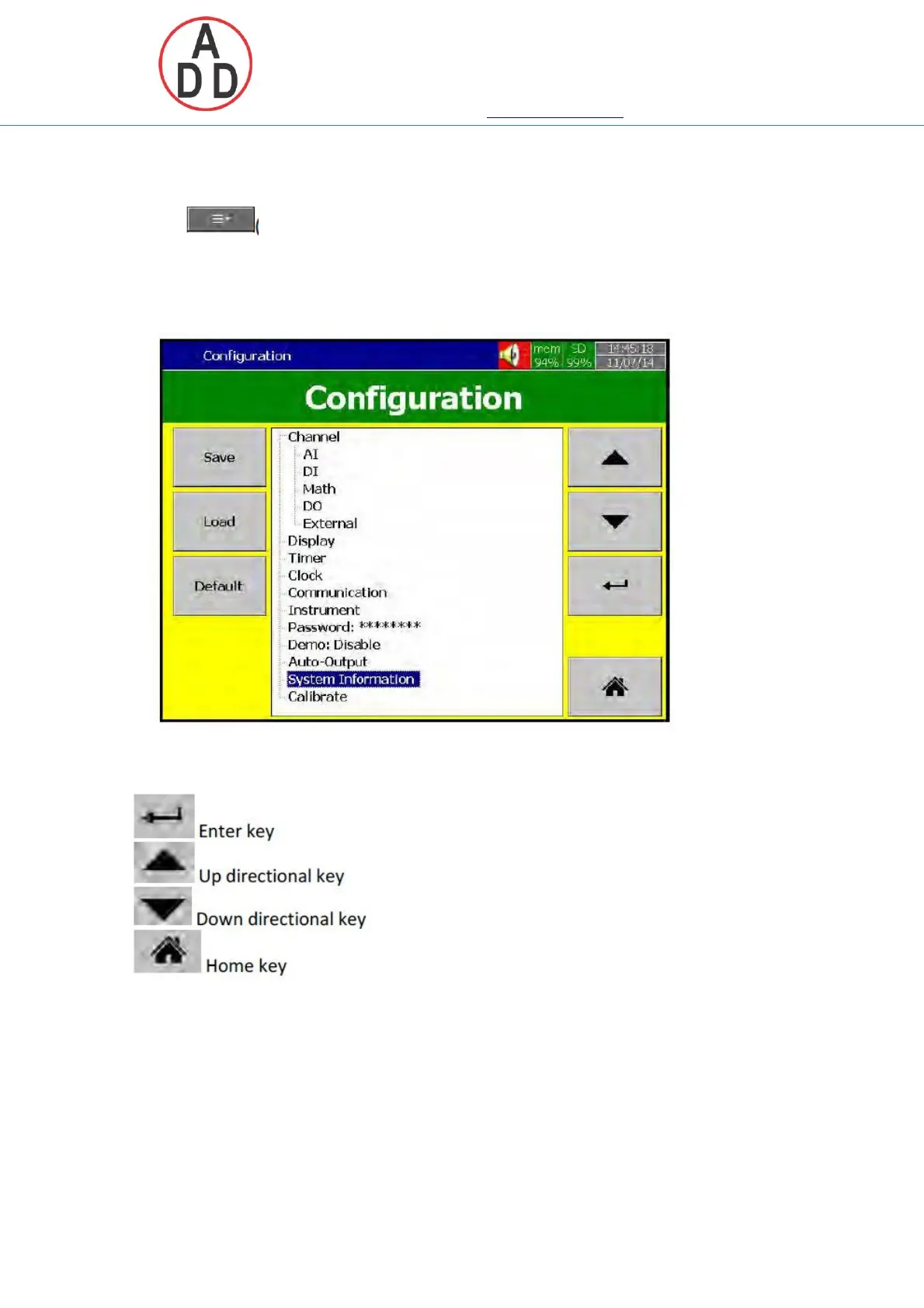

Press ( “Menu”), then, ”More” soft button to enter the Config
( Configuration mode ). A vertical list appears with a provision to configure
Channel, Tools, Message, Display, Instrument, Security, Auto-Output, Demo and
system Information. Meanwhile, the following soft buttons also appear Save,
Load, Default and Home.
Soft buttons
Various options available to enter into configuration mode
Option-1: Select the mode by pressing up & down directional keys, then press
“Enter” key
Option-2: Select the required mode directly with a touch, then press “Enter” key
Option-3: Select the required mode and then press two times quickly using Touch,
it is same as double click from mouse
59
