2.4 Setup input and output
Analog input cards ( part numbers AI206 and AI203)
AI206 and AI 203 are analog input cards in 3 and 6 channels respectively. Each card
includes universal input of TC ( J, K, T, E, B, R, S, N, L,U,P,W5,W3,LR,A1,A2,A3,M ), RTD,
mV, mA, V. The accepted input types and sensor range for each type are listed on the
clause 1.8 of chapter 1. To plug the card into the rear slot then power on. The recorder
will automatically detect the card and display the specific input type, then show its
source of a specific slot in Configuration Mode.
To select a specific input, please press menu and then Config button to get into the
configuration window. In the configuration window, press up/down and enter key to
select AI and get into AI setting window. In the AI setting window, move the selected
focus to the item "Type" under the node "Sensor" and then press enter key to select
the desired sensor type. Press OK when finished. It's similar to set up for all the other
items. The item "Events" can be added to do further control.

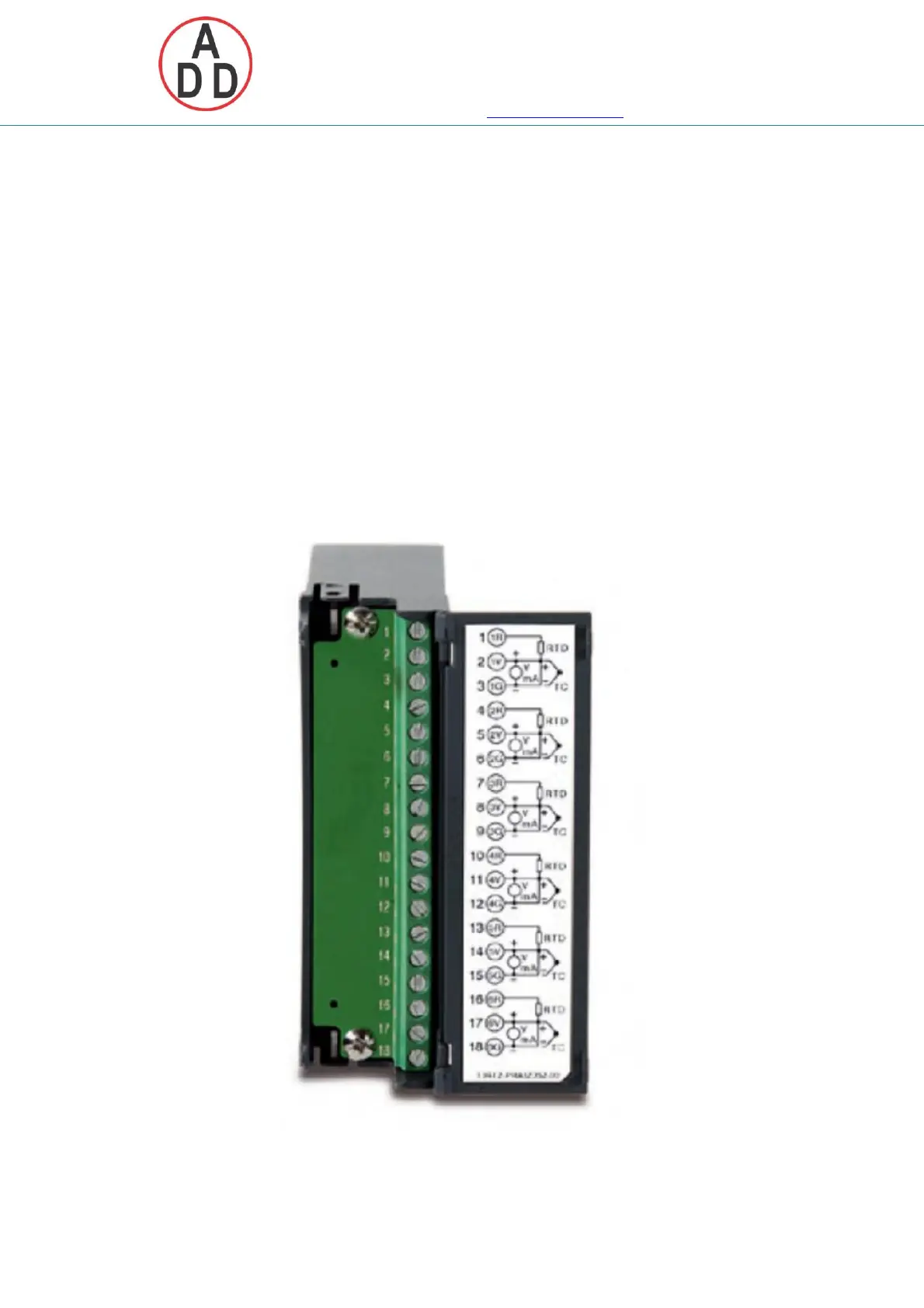

Figure 2 – 15 (AI206)
35
