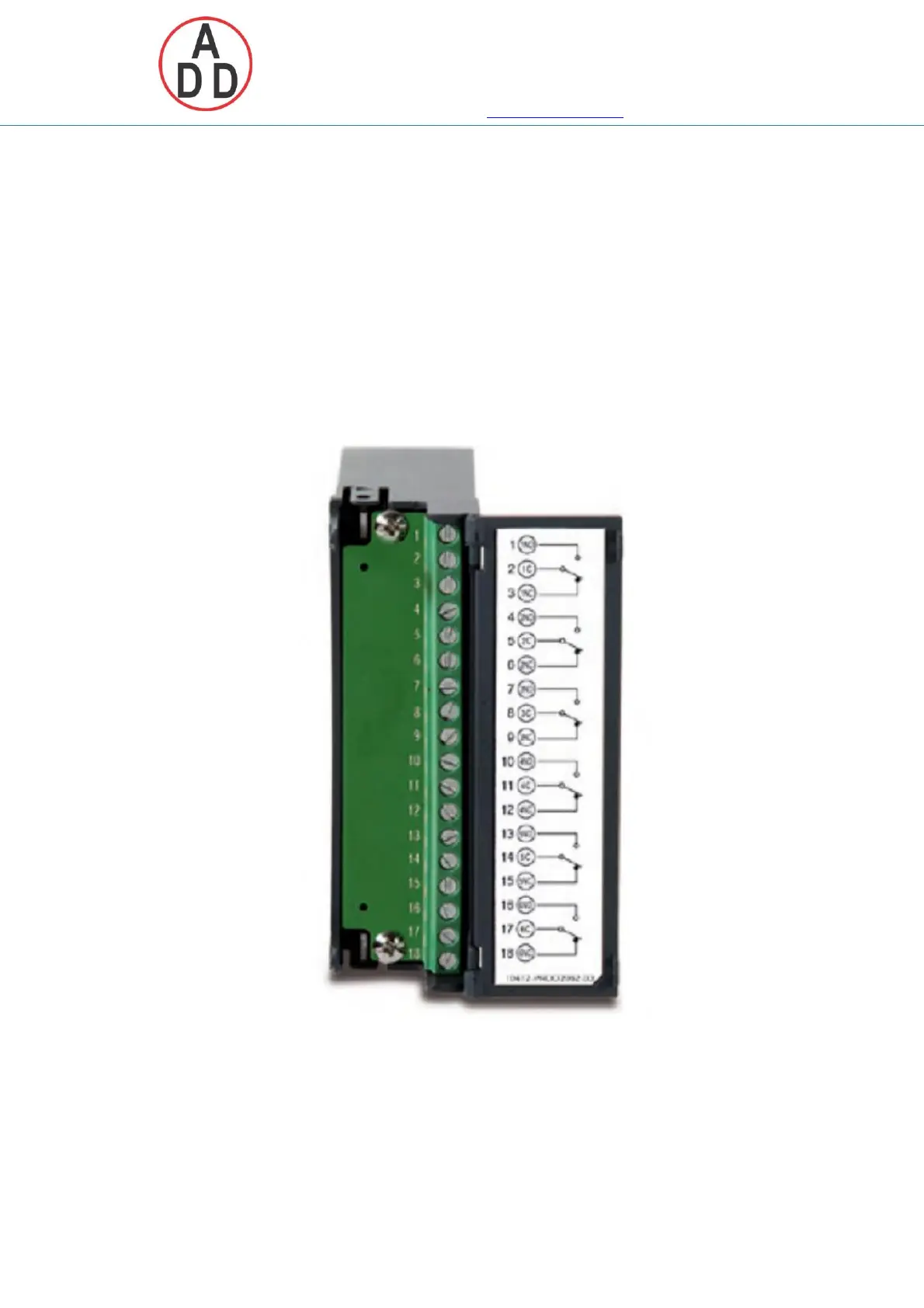

Relay Output card ( RO206 ) / 6 relay alarm card
The relay output card includes 6 relays rated 5 Amp/240 VAC. Plug the card into rear
slot and power on. The recorder will automatically detect the card and then display
the output type and its source of a specific slot in System Info mode whilst doing the
configuration.
To set up the relay output card, please press menu and then Config button to get into
the configuration window. In the configuration window, press up/down and enter key
to select DO and get into DO setting window. In the DO setting window, the setup
steps are similar to AI. The item "Reverse" is to reverse the output status.
36
