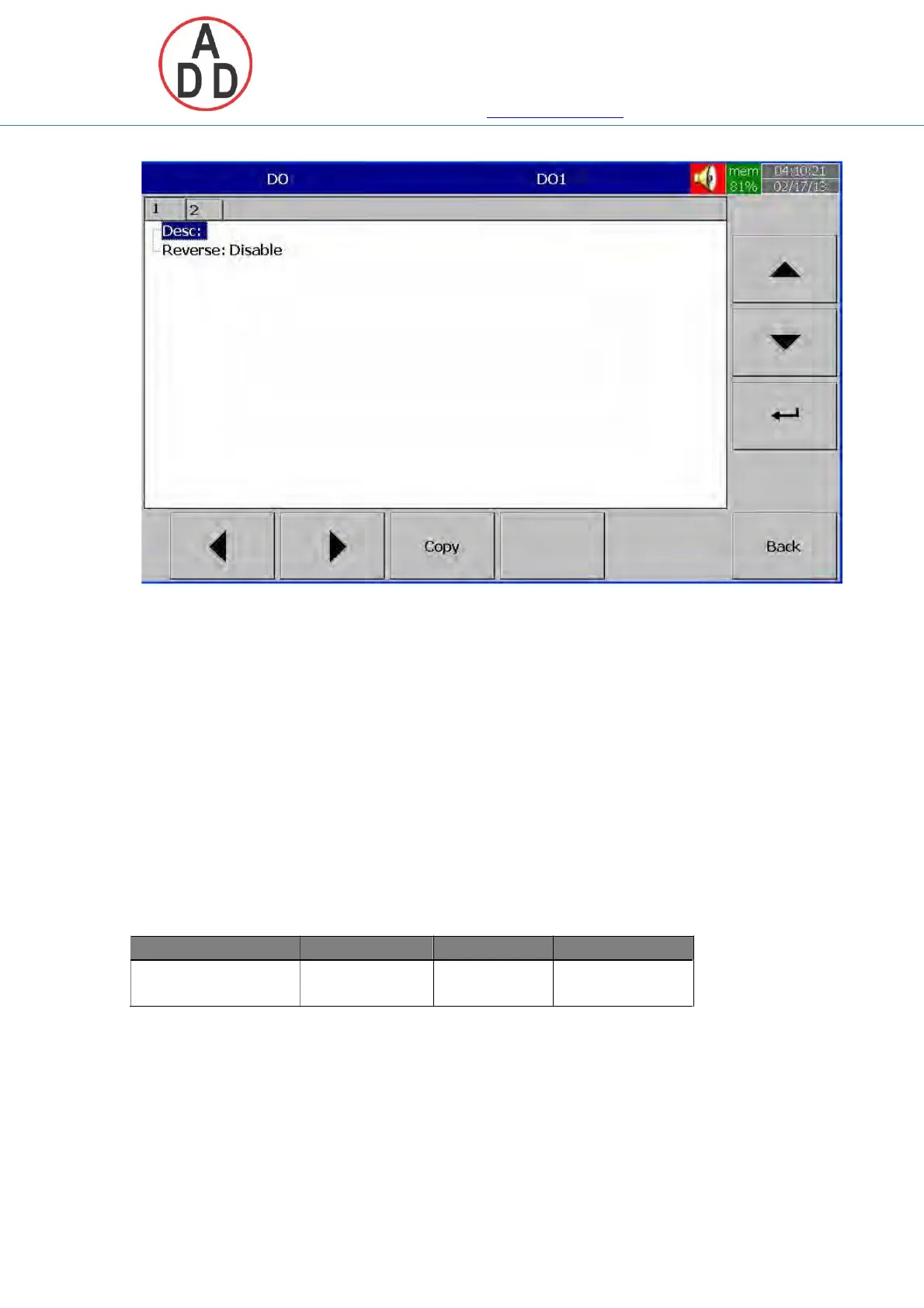

4.1.5 Digital Output
Desc: Define detail description for the channel name
Reverse: Enable this if Reverse operation required for the Digital Output.
For ex: Normally, Relay output is Normally Open (NO). In case if you need to get
Normally Close (NC) at Recorder Power ON, then, enable Reverse for selected
Digital Output. The operation is Relay output shall be reversed
4.1.6 External
This is to access data from the external devices.
Maximum no. of external channels in various PR series Recorders are as follows
PR Recorder
PR-10
PR-20
PR-30
Maximum External
24
48
96
Channels
All the properties are similar to Analog Input channel.
More details about external channels are available at section “Communication”
