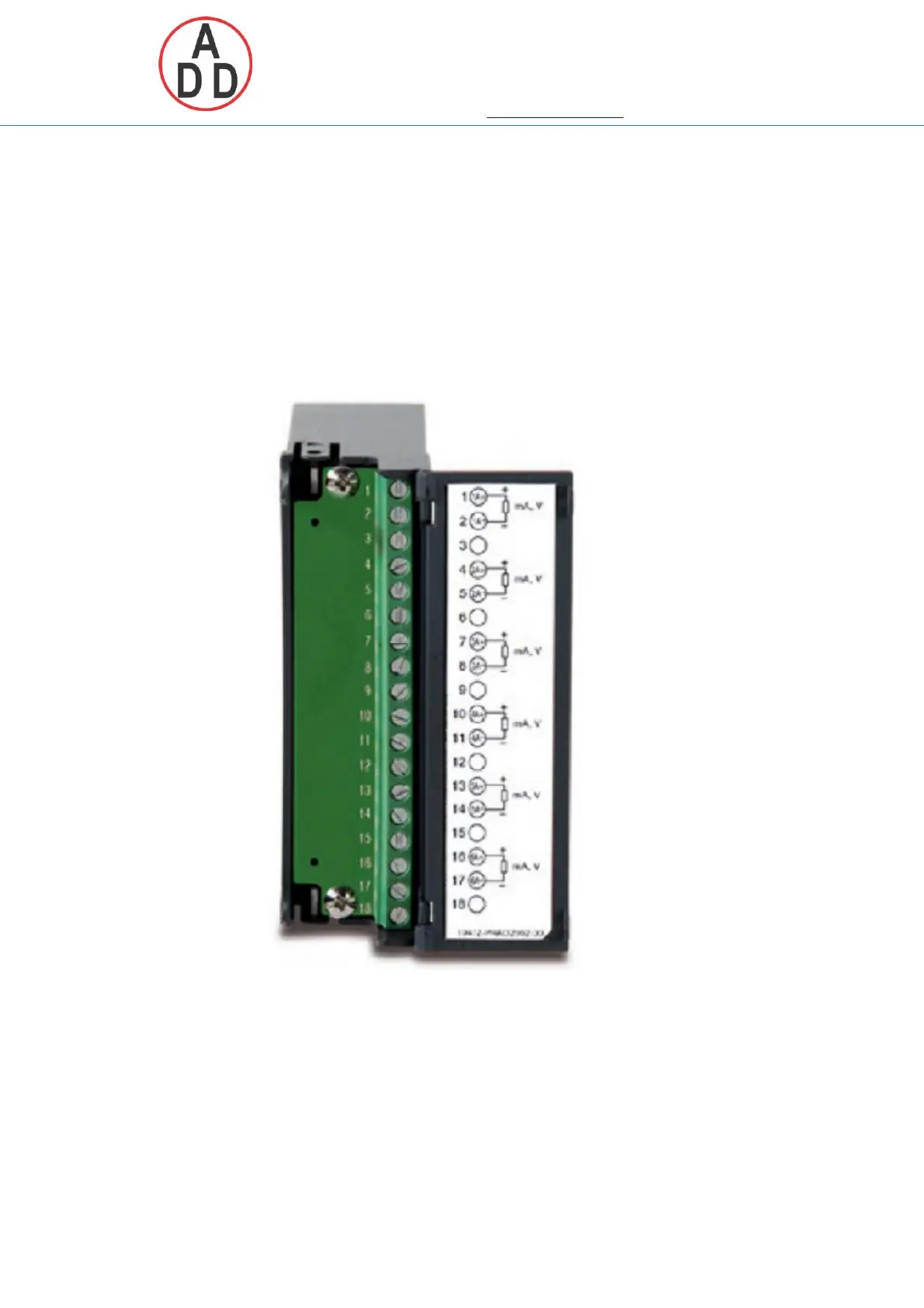

Analog output cards ( AO206)
This card are 6-channel current output card. They are used to retransmit process value
to another device.
To set up the analog output card, please press menu and then Config button to get
into the configuration window. In the configuration window, press up/down and enter
key to select AO and get into AO setting window. In the AO setting window, the setup
steps are similar to AI. The item "Type" is to decide to output current or voltage. The
item "Output" is to select the output range for current or voltage. The item
"Expression" is a math expression field and can be inputted to control the output
value.
Note : The IO Cards should not be removed or Inserted to the PR
when the Power is ON. This should be carried out at Power
OFF Condition only.
39
