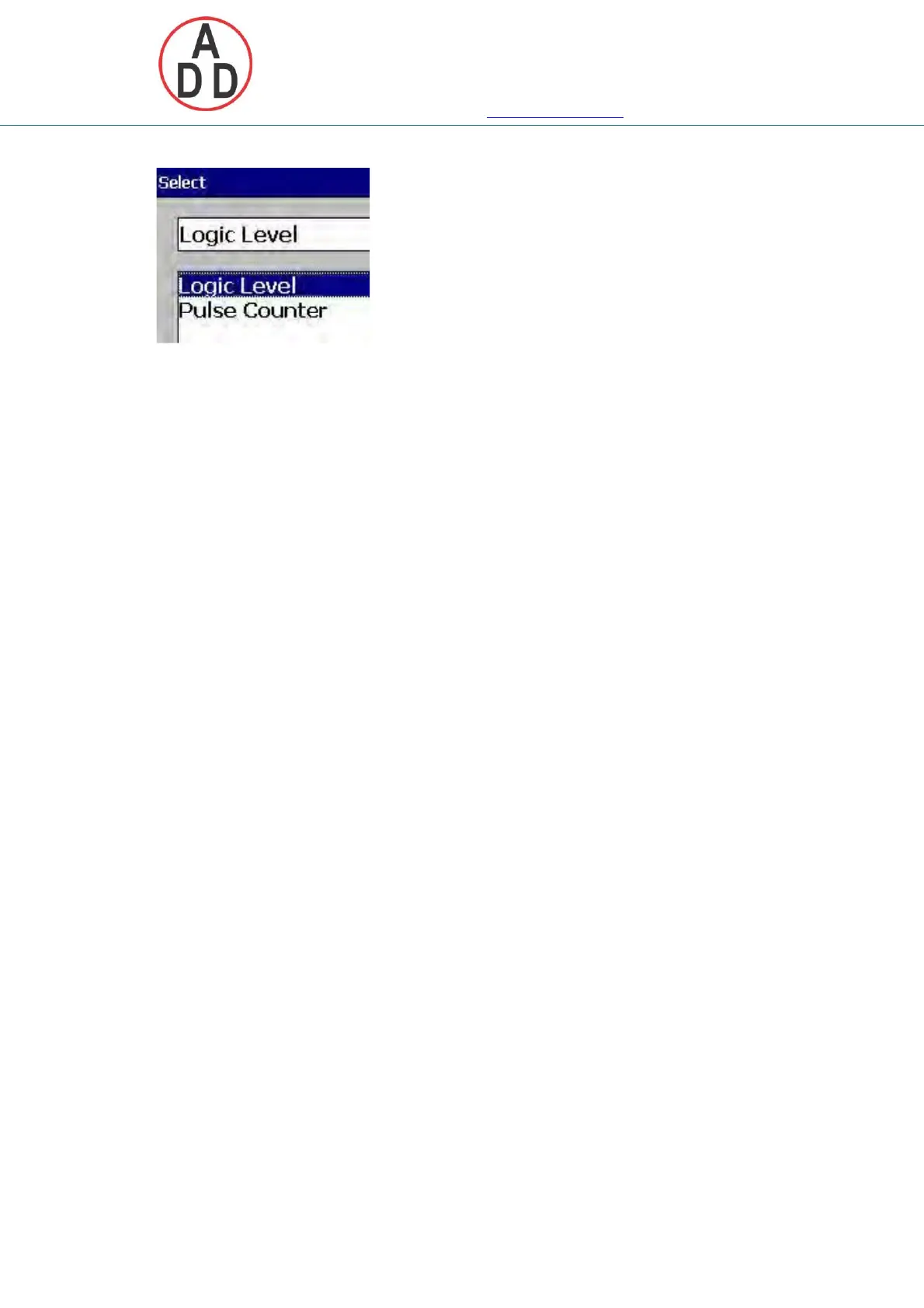

Select Logic Level and press “Enter” key
Events: Maximum 2 events are supported for every digital Input channel. Maximum
two jobs can be configured for each event.
Note: Events will not appear if Logic Level selected as Pulse Counter
Add: Press “Add” to add events to the Digital Input
Remove: Press “Remove” to remove events from the Digital Input
Type: Select Low, L or High, H
Job1, Job2: To configure Job, select Job1, Press on Enter button. It will show list of all
the jobs, select the required Job.
Note: Number of digital inputs shown at DI screen depends on number of
Digital input cards inserted in the paperless recorder.
Sample applications of Digital input …
After pressing a “Start” switch at site, latch ON Digital Ouput1
After pressing a “Pause” switch at site, latch Off Digital Output1
Start Timer, Stop Timer
Reset Totalizer, Reset Counter
Reset MaxMinAve values of all the channels etc..
It is possible to display Digital input status via status bar on any page in the paperless
recorder. If digital input is not available, it shows as “Low”, Presence of digital input
shall be shown as “High”. To configure status bar, refer section “Display”
