BNT
MODEL CHARACTERISTICS
13

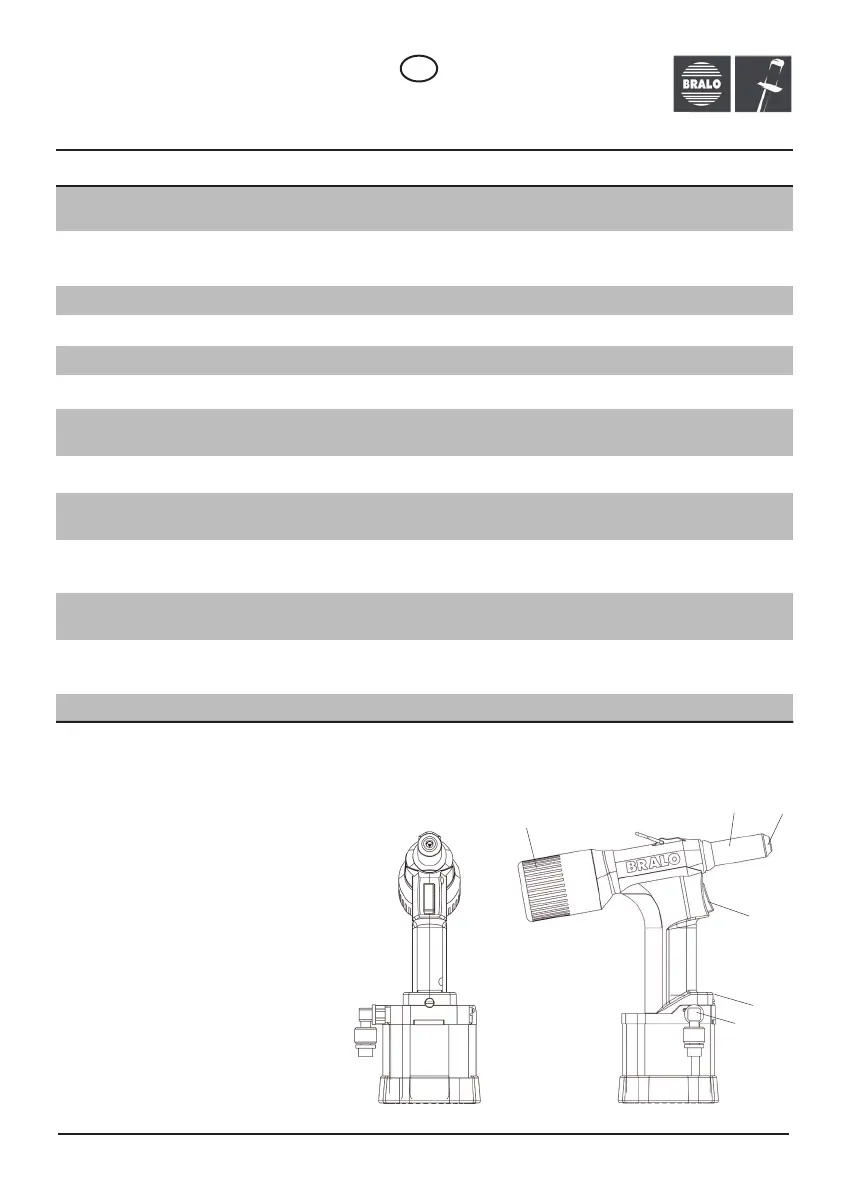

RIVETER DIAGRAM
A. Nozzle
B. Nozzle holder
C. Spent mandrel collector
D.
Trigger
E. Air inlet
F. Vacuum control valve
www.bralo.com
* Tool-mounted nozzle.
** Tool-mounted jaw set.
EN
B
E
F
D
BN T-1 BN T-2 BN T-3 BN T-4 BN T-5
BNT-1 Pneumatic
Riveter
BNT-2 Pneumatic
Riveter
BNT-3 Pneumatic
Riveter
BNT-4 Pneumatic
Riveter
BNT-5 Pneumatic
Riveter
Instruction
Manual
Instruction
Manual
Instruction
Manual
Instruction
Manual
Instruction
Manual
Nozzle 724
Nozzle 724
Nozzle 730
Nozzle 951
2 Nozzles 983*
Nozzle 730
Nozzle 730
Nozzle 740
Nozzle 960*
Nozzle 740
Nozzle 740
Nozzle 750*
Nozzle 964
Nozzle 750 *
Nozzle 750*
Nozzle 760
Jaws ** Jaws ** Jaws ** Jaws **
2 Structural
Jaws
*
*
No. 4 Allen wrench
No. 4 Allen wrench
No. 4 Allen wrench
No. 4 Allen wrench
No. 4 Allen wrench
Key for nozzles
and nozzle holder
Key for nozzles
and nozzle holder
Key for nozzles
and nozzle holder
Key for nozzles
and nozzle holder
Key for nozzles
and nozzle holder
Air inlet fitting
Air inlet fitting
Air inlet fitting
Air inlet fitting
Air inlet fitting
Bottle with
hydraulic oil
Bottle with
hydraulic oil
Bottle with
hydraulic oil
Bottle with
hydraulic oil
Bottle with
hydraulic oil
Oil refill container
Oil refill container
Oil refill container
Oil refill container
Oil refill container
12 to 18 Wrench
12 to 18 Wrench
12 to 18 Wrench
12 to 18 Wrench
12 to 18 Wrench
C
A
