CHAPTER 4 TRANSMISSION
4
3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

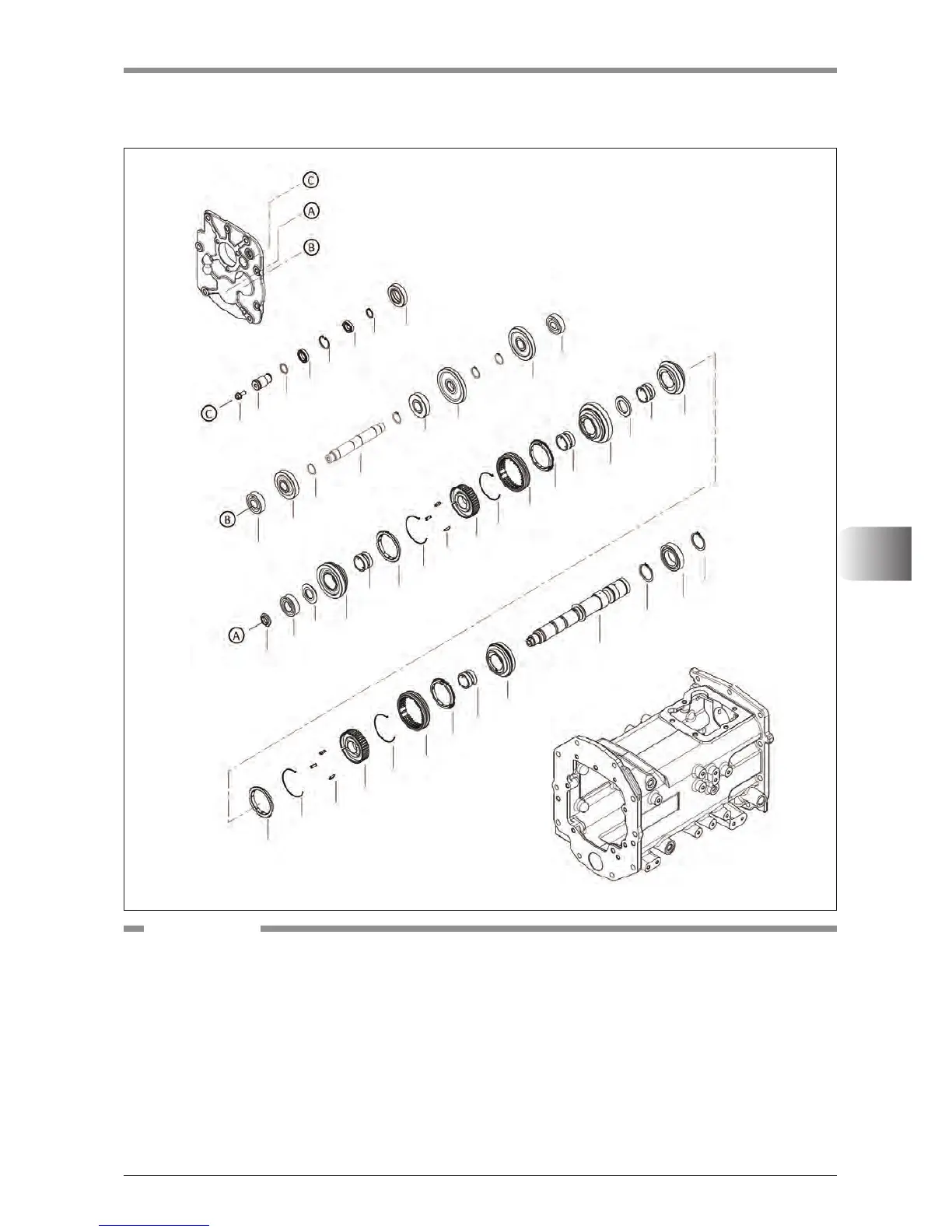

4.2 MAIN SHIFT [MEC. MODEL]














































F42W402A
 (1)Shaft,idle(rear)
 (2)O-ring
 (3)Ballbearing
 (4)Snapring
 (5)Snapring(C-type)
 (6)Gear,idle(rear)
 (7)Hexangebolt
 (8)Ballbearing
 (9)Gear2,mainshift
 (10)Snapring(C-type)
 (11)Spacershaft,mainshift
 (12)Gear1,mainshift
 (13)Gear4,mainshift
 (14)Gear3,mainshift
 (15)Nut,lock
 (16)Ballbearing
 (17)Spcer
 (18)Gear-M/shiftdrvn2
 (19)Sleeve
 (20)Synchroring
 (21)Spring
 (22)Hub
 (23)Key
 (24)Sleeve
 (25)Gear-M/shiftdrvn1
 (26)Gear-M/shiftdrvn4
 (27)Spacer
 (28)Gear-M/shiftdrvn3
 (29)Shaft-M/sthift
 (30)Snapring(C-type)
 (31)Ballbearing
COMPONENTS
