6
-
17
42hW-201601
CHAPTER 6 HYDRAULIC SYSTEM
6
3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

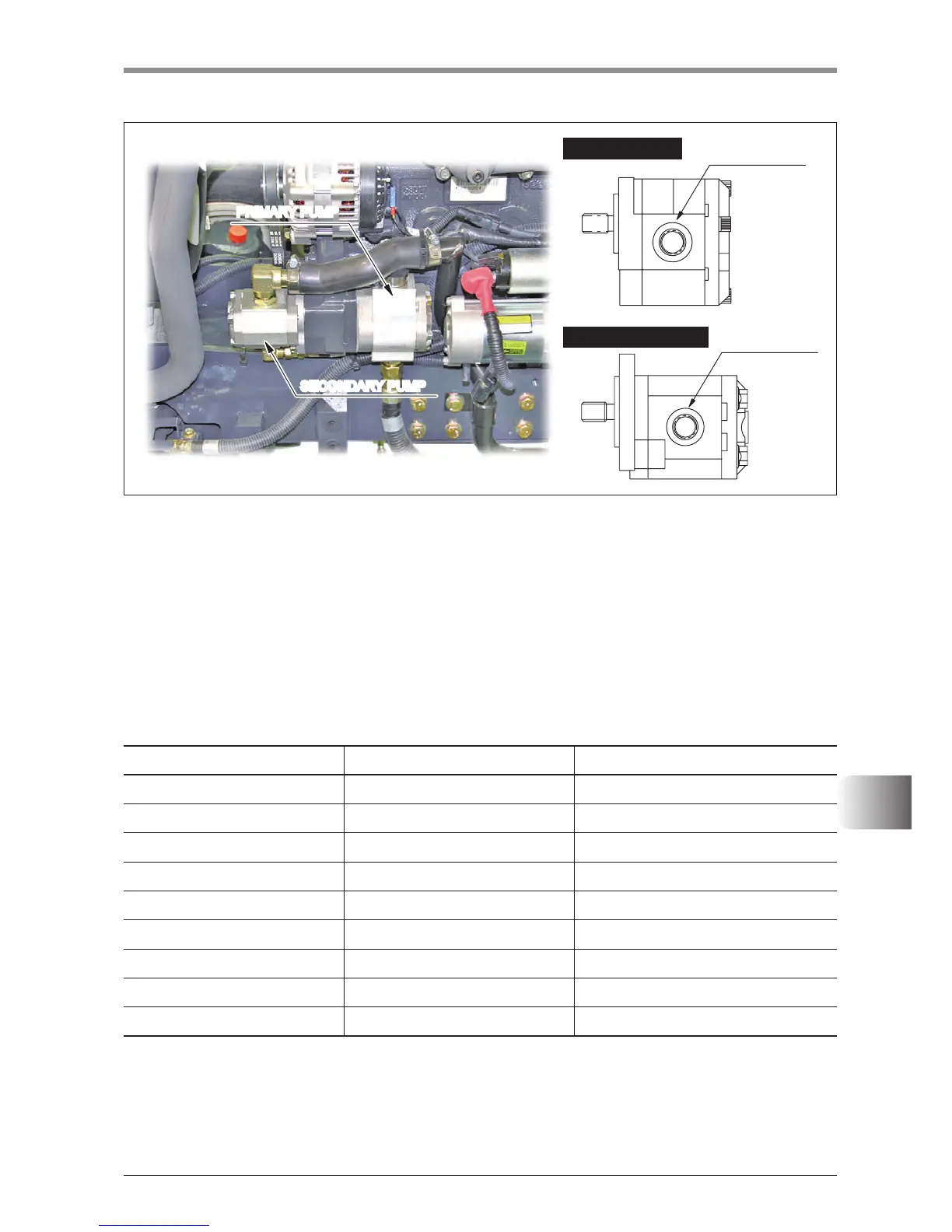

4.3 HYDRAULIC PUMP
The hydraulic pump is a gear type and consists of the primary pump as the main pump (13 cc/rev) and
secondary pump as the steering pump (7.0 cc/rev). The drive shaft set between these two pumps receives
engine power directly through the drive gear of the engine crankcase.
Pump capacity (at rated engine RPM)
Primary pump: 13 cc/rev. X 2,600 rpm = 33.8 lpm
Secondary pump: 7.0 cc/rev. X 2,600 rpm = 18.2 lpm
ITEM MAIN PUMP (PRIMARY PUMP) STEERING PUMP (SECONDARY PUMP)
Theoretical discharge volume 13 cc/rev 7.0 cc/rev
Maximum pressure 210 kgf/cm
2
Rotating direction Counterclockwise Clockwise
Operating oil TF 500
Usable oil temperature range -20 ~ 100
Relief setting pressure 160
±
5 kgf/cm
2
Max. usable turning peed 2,340 rpm
Min. usable turning peed 970 rpm
Pressure on suction side -0.2 - 1.0 kgf/cm
2
PUMP SPECIFICATIONS
35,0$5<3803
3)2ULQJERVV
3)2ULQJERVV
6(&21'$5<3803
PRIMARY PUMP
SECONDARY PUMP
F42W614A
