4
-
59
42hW-201601
CHAPTER 4 TRANSMISSION
4
3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

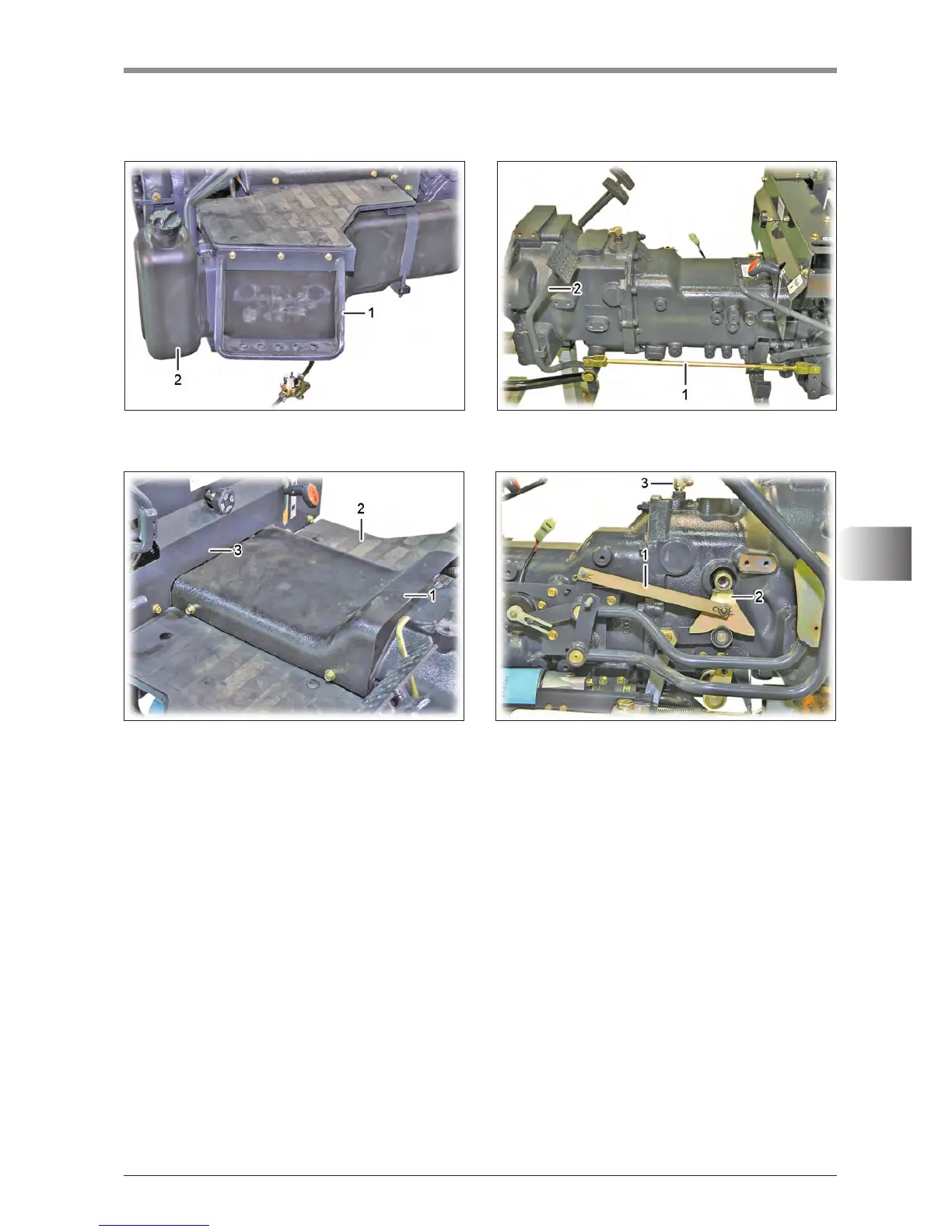

6. Removethefootstep(1)andfueltank(2).
K42W416A
9. RemovetheHSTarmconnectingplate(1),HST
arm(2)andelbow(3).
A42W415AK42W417A
8. Removethebrakerod(1),brakepedal(2).
A42W414A
7. Remove the transmission case cover (1), floor
mat(2)(LH,RH),dustcoverassembly(3).
