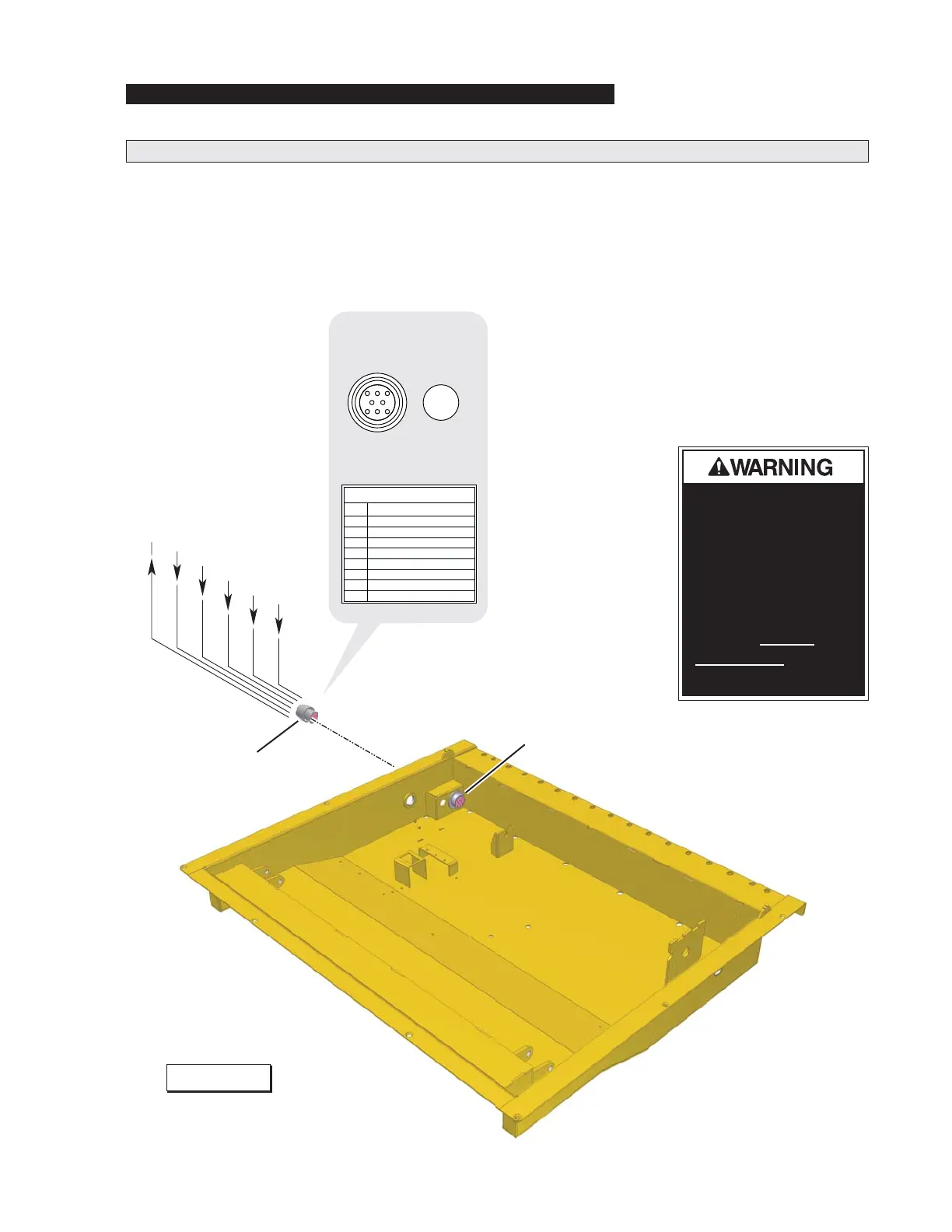

An 8-pin Deutsch connector is
mounted at the front of the ramp
pan (see Figure J). A mating
8-pin Deutsch connector (male
plug) is supplied with the ramp.
Terminate the power supply, the
ground, DEPLOY signal (+), DE-
PLOY indicator, STOW signal (+)
DQG672:LQGLFDWRUDVVSHFLÀHG
in legend.
Figure J
RAMP INSTALLATION
Positive (+) battery
lead wire must be
protected by
installer-provided 30
ampere fuse or
circuit breaker.
Failure to do so may
result in serious
bodily injury and/or
property damage.
8-pin Deutsch
Male Plug
(supplied with ramp)
8-pin Deutsch
Connector
(ramp equipped)
TO USER CONTROL SIGNAL TO DEPLOY RAMP
CONNECTOR - P1
(B.C.# 30136)
D
A
G
E
F
C
B
H
TO USER STOW - 14 GA.*
TO USER DEPLOY - 14 GA.*
VEHICLE GROUND - 12 GA.*
POWER SOURCE - 12 GA.*
D
C
B
A
* RECOMMENDED WIRE GAUGE
COLOR
WIRING PROVIDED
BY INSTALLER
PIN
8-COND WIRE CODE
RAMP DEPLOY INDICATOR - 14 GA.*
RAMP STOW INDICATOR - 14 GA.*
PLUG - NOT USED
PLUG - NOT USED
H
G
F
E
TO USER CONTROL SIGNAL TO STOW RAMP - (MOMENTARY SWITCH)
TO
SIGNAL TO RAMP STOW INDICATOR
TO SIGNAL TO RAMP DEPLOY INDICATOR
TO POWER SOURCE - (30 AMP. CURCUIT PROTECTION DEVICE)
TO VEHICLE GROUND
Electrical Connections
