Page 35
HYDRAULICS
1 1 Cylinder - 1514.3 - Compact C1514.3-9801
2 1 Cylinder - 1514.3 - Compact C1514.3-9901
3 1 Pump - Power Unit - Hydraulic - RA300 35572-12V
  +RVH$VVHPEO\'LD6:6: $ 
  +RVH$VVHPEO\'LD6:6: $
  +RVH$VVHPEO\'LD6:6: $
7 4 Elbow - 45* - 7/16-20 + 7/16-20 SAE Male O-Ring 24505
8 2 Tee - 7/16 O-Ring BRANCH - 7/16 M. JIC37* 87621
Item Qty. Description Part Number

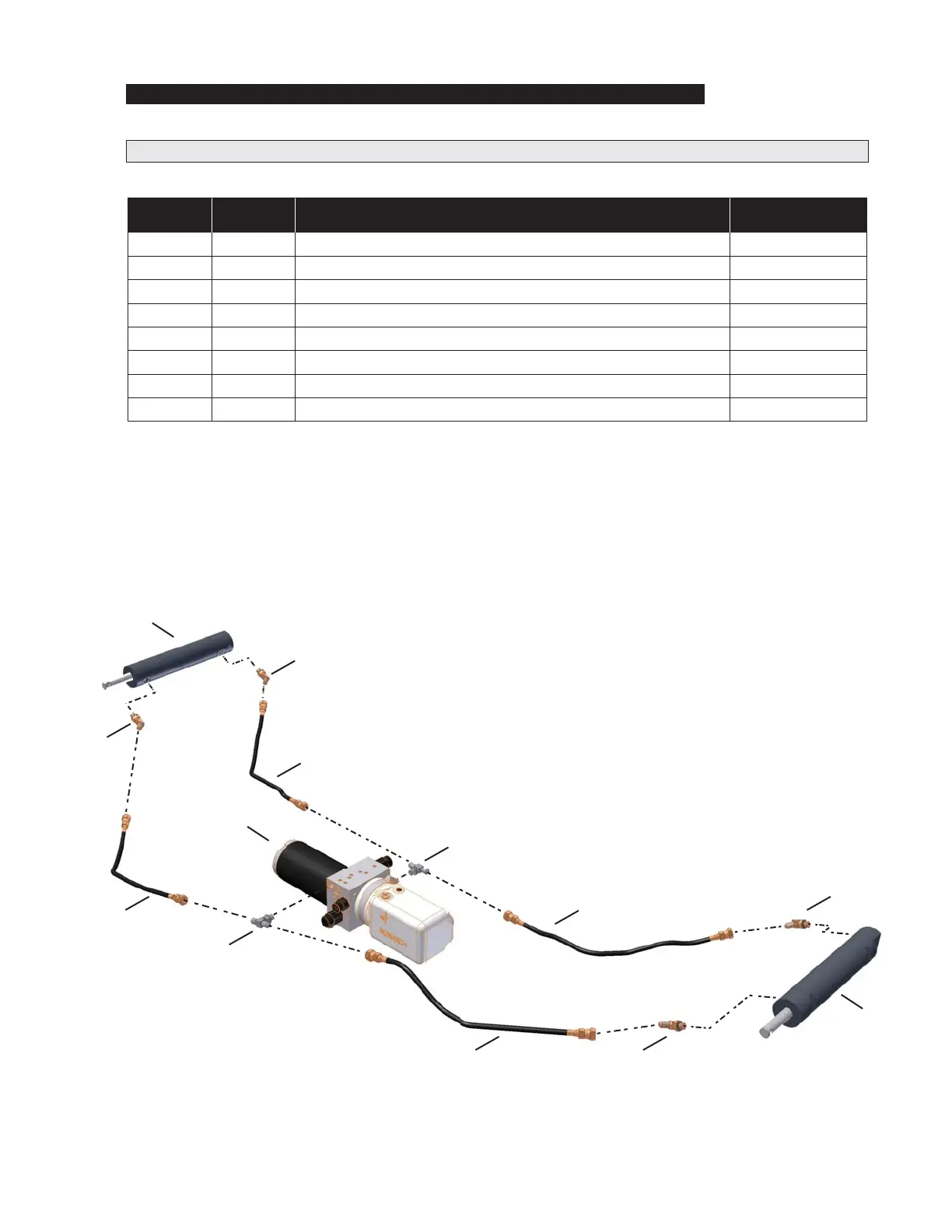

Hydraulic Diagram and Parts List
8
5
6
2
4
8
3
5
7
1
7
7
7
