BraunAbility Entervan XT - Below Floor Obstructions

Page 12
BELOW FLOOR OBSTRUCTIONS
When installing an
electrical tie-down,
power seat or other
auxiliary device, ob-
structions below the
floor must be avoided.
Obstructions include
wiring, fuel system,
brake lines, etc. In-
stallers must be aware
of these obstructions.

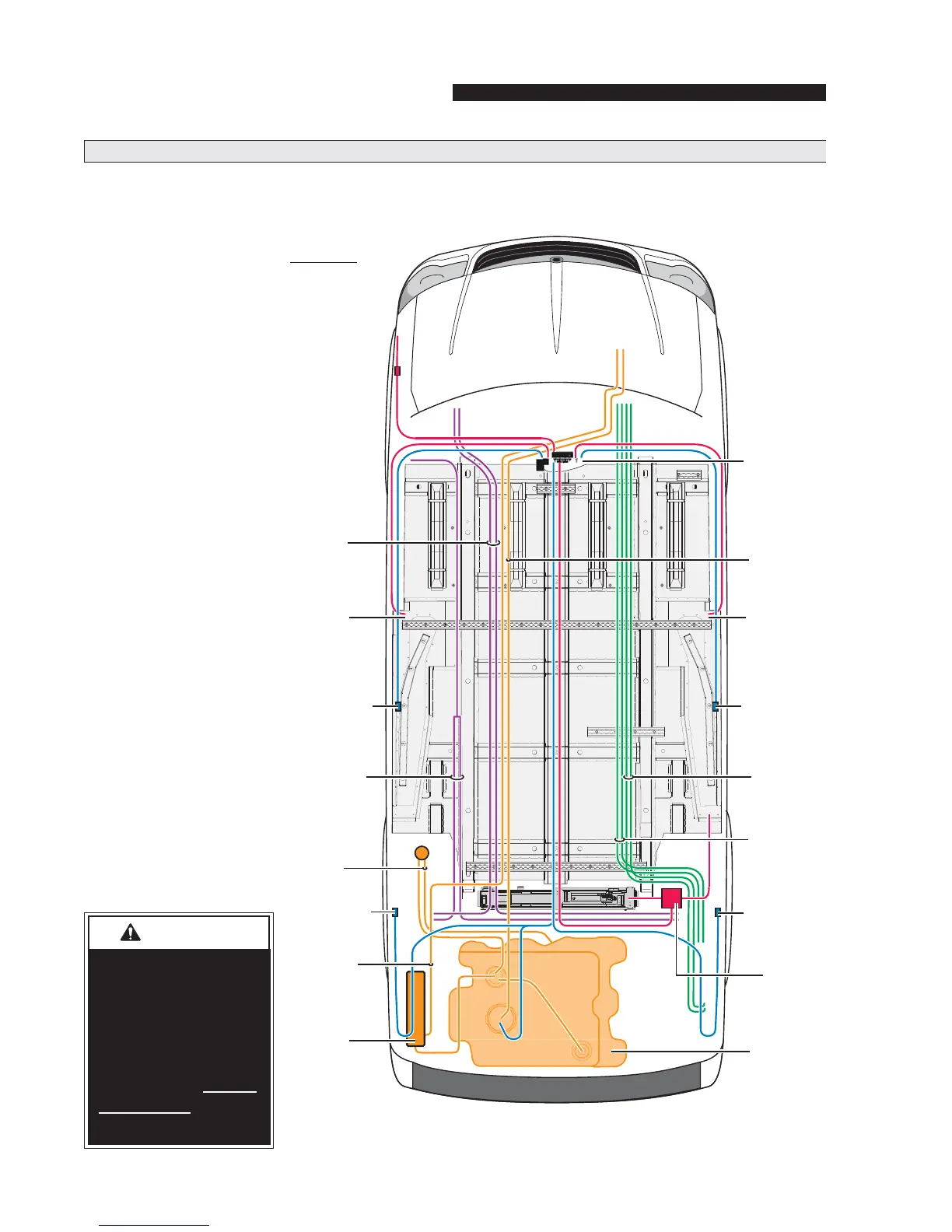

Refer to this illustra-
tion when installing
aftermarket equipment
to avoid contacting or
damaging vital compo-
nents under the floor.
Drilling or cutting
into such obstruc-
tions may result in
potential hazards as
well as property dam-
age.
Note: Some wiring
harnesses shown may
not be present. Avoid
all harness locations.
W
A
RNING
Check for obstruc-
tions such as wires,
gas lines, exhaust,
etc. before drilling
or cutting through
floor. Failure to do so
may result in serious
bodily injury and/or
property damage.
QuickTime
and
aTIFF
(Uncompressed)are
needed
to
see
th
Brake
Lines
Braun
Controller
Emergency
Brake Cables
Side Impact
Sensor
Side Impact
Sensor
Side Impact
Sensor
Driver
Receptacle
Station
Color Key
OEM Wiring
Braun Wiring
Fuel System
Brake System
Heat & A/C
Rear Heat
Lines
Rear A/C
Lines
Passenger
Receptacle
Station
Gateway
Electrical
Center (SIR
Terminator,
Gateway
Module and
Fuse Block)
Side Impact
Sensor
Fuel Fill
Tube
Main Fuel
Line
OEM Fuel
Tank
Charcoal
Vapor Line
OEM
Charcoal
Canister
2008 Chrysler XT Lowered Floor Minivan (Foldout Ramp) Conversion
