DIMENSIONS

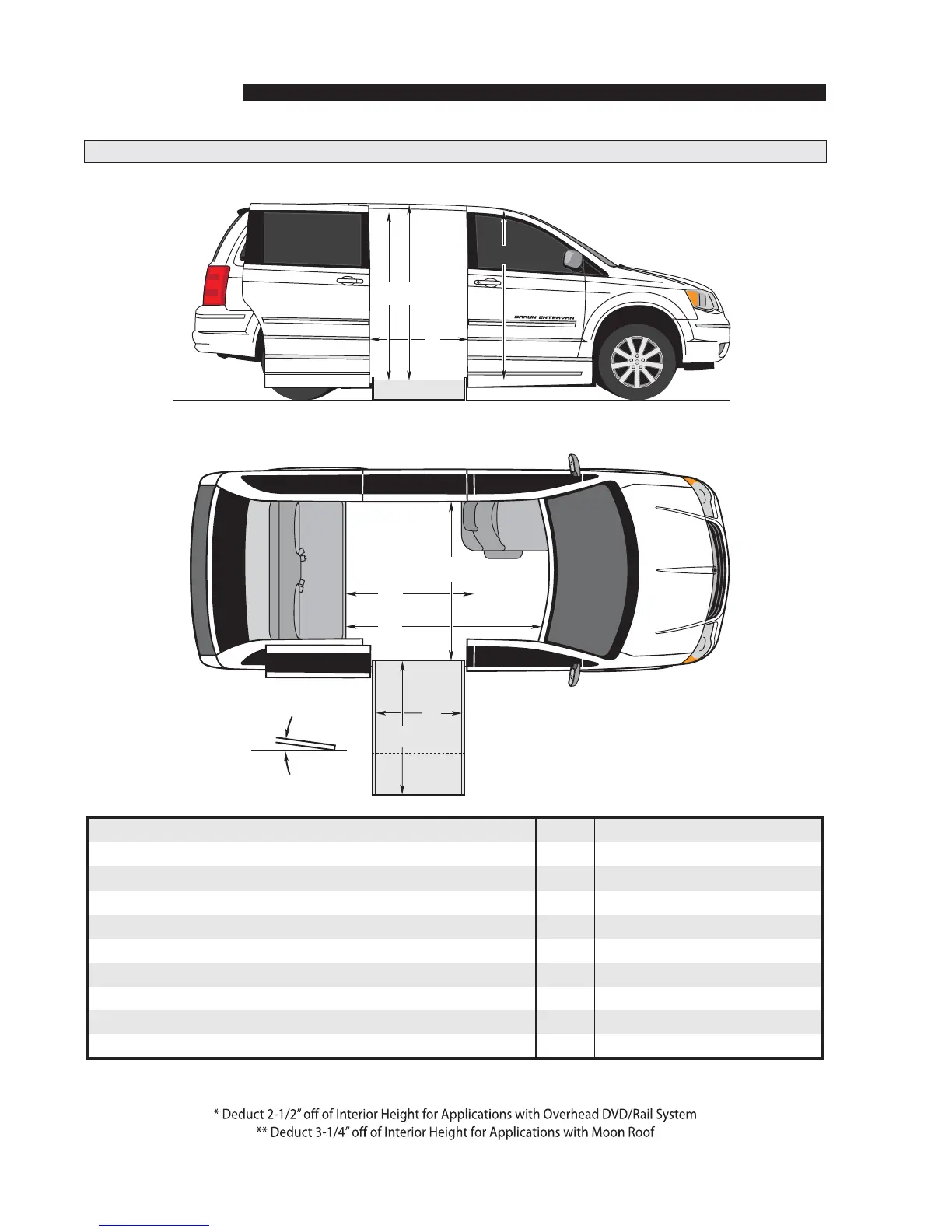

Dimensions - 2008 Chrysler XT Conversion (Foldout Ramp)
F
E
G
I
H
J
BC
D
A
All dimensions are for reference only.
Door Opening Usable Width (Slide Door) A 31-1/2”
Door Opening Usable Height (Slide Door) B 56-1/2”
Interior Height at Center of Van* C 61”
Interior Height at Driver and Passenger Position** D 60”
Ramp Length E 52”
Ramp Width (Usable Clear Opening) F 29-1/4”
Ramp Angle (with Vehicle Kneeled on Power Conversion) G 7.5° (Power) 10.5° (Manual)
Interior Floor Length (Behind Front Seats) H 57”
Overall Interior Floor Length (Flat Area) I 86”
Interior Width at B Pillars J 62-1/2”
Foldout Ramp
Due to manufacturing tolerances both with the OEM vehicle and the conversion components, all dimensions may vary slightly from those shown.
