BraunAbility Entervan XT - Electronic Control System Components; Control Module Diagram and Indicators; Kneel and Ramp Control Operation

Page 14
ELECTRONIC CONTROL MODULES
MANUAL OVERRIDE
DOWN
UP
Patent #6,825,628 B2
®
TM
www.braunability.com
MANUAL OVERRIDE
STOW
DEPLOY
®
TM
www.braunability.com
34858
MANUAL OV
ERRIDE
DOWN
UP
BRAUN KNEEL
ACCESSORY MODULE
100281-002
®
SN
Patent #6,825
,628 B2
®
1-800-THE L
IFT
TM
www.braunability.
c
om
IN 10 DEPLOY
IN 9 STOW
KNEEL ENABLE
34451
KNEEL FULL UP
KNEEL FULL DOWN
IN 7
IN 6
IN 5
BRAUN CONTROLLER
®
100188-001
SW REV
Patent #6,825,628 B2
®
1-800-THE LIFT
T
M
www.braunability.com
RESET
SPEAKER
ON
OFF
SN
34452
MANUAL OVERRID
E
STOW
DEPLOY
Patent #
6,825,
628 B2
®
1-800-THE LIFT
TM
www.braunabilit
y.com
BRAUN RAMP
ACCESSORY MODULE
100278-001
®
SN
RESET
DIAGON
OFF
SPEAKER
ENABLE
34703
INFLOOR FOLDOUT
RAMP SELECT
SWITCH
INFLOOR FOLDOUT
RAMP SELECT
SWITCH
KNEEL ENABLE
KNEEL FULL UP
KNEEL FULL DOWN
IN 7
IN 6
IN 5
Patent #6,825,628 B2
®
1-800-THE LIFT
Indicator LEDs
Kneel Override
Speaker
Enable
Ramp Select Switch
Ramp Override
Computer Port
Fuse
Block
Grounding
Studs

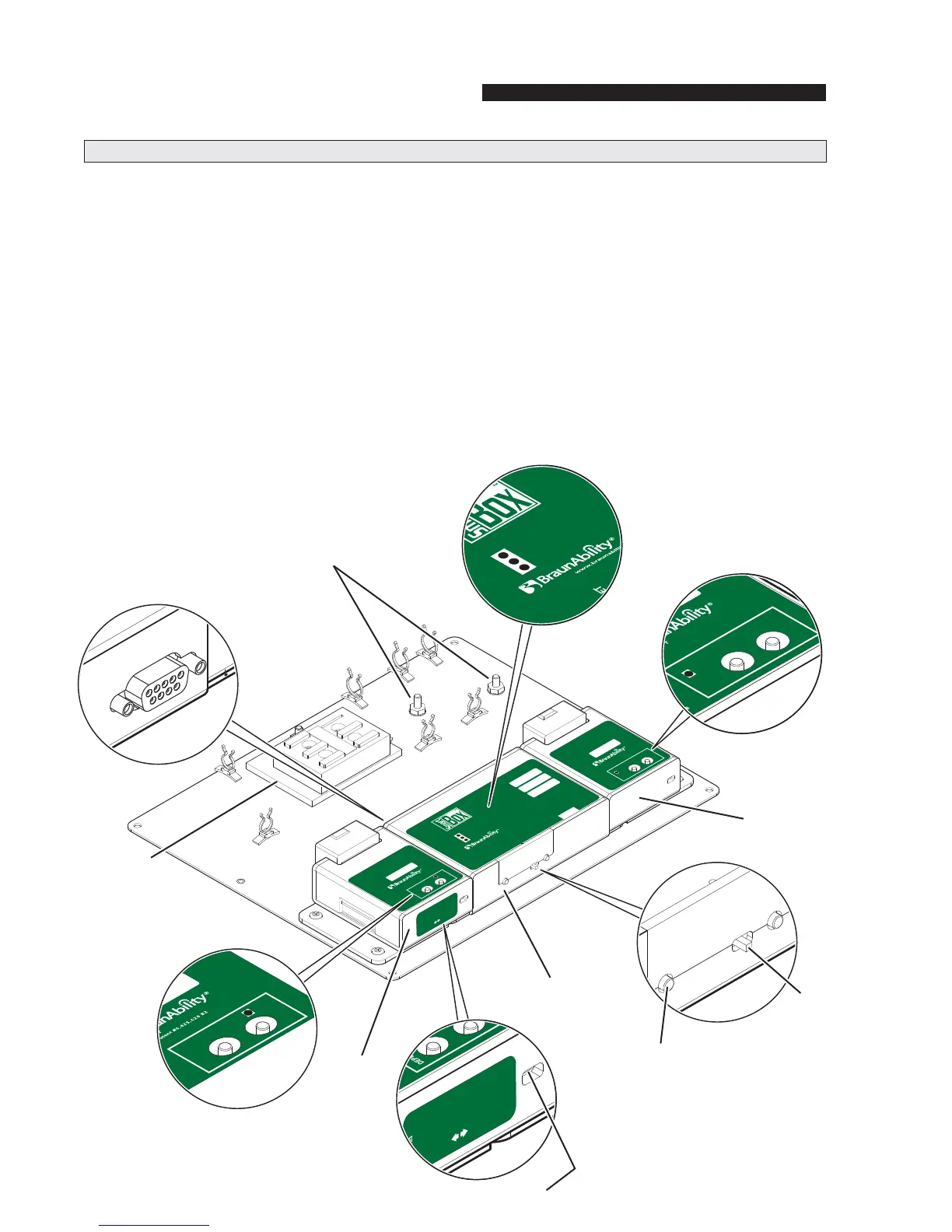

Diagram - Electronic Control Module Connections / Inputs / Indicators
The control module assembly is
mounted to the bottom of the pas-
senger side third row seat. Re-
moval of this seat is prohibited.
Tip the seat forward to access the
module assembly.
Computer Port - Laptop diagnostic
connection port to the electronic
controller.
Grounding Studs - The controller
assembly provides two grounding
studs.
Indicator LEDs - LED's illuminate
whenever a switch is grounded (as
labeled).
Kneel Override - Buttons drive the
kneel system in the direction indi-
cated. The kneel LED will illumi-
nate Red when kneeling and Green
when unkneeling (raising).
Reset Button - Resets controller.
Speaker Enable - Turns the
internal speaker On and Off. The
speaker sounds a tone whenever
an operate signal is seen (any con-
trol switch is activated). A tone will
also sound if the ramp motor pulls
current over the controller preset
baseline current.
Ramp Select Switch - Sets
controller functions to an infloor or
foldout ramp.
Ramp Override - Buttons drive the
ramp in the direction indicated. The
ramp LED will illuminate Red when
deploying and Green when stowing.
Ramp
Module
Main
Controller
Kneel
Module
Reset
Button
