Fasteners
AUXILIARY POWER SUPPLY
Auxiliary Power Supply: Do
not connect auxiliary devices
directly to the vehicle battery.
Doing so may result in damage
to electrical system and/or
electronic components.
Do not connect
auxiliary devices to
vehicle battery. Doing
so may result in dam-
age to electrical sys-
tem and/or electronic
components.
Risk of electrical fire!
Install and electrically
terminate auxiliary
electrical device as
specified by device
manufacturer.
Two fuse blocks are provided
as an auxiliary power source for
dealer-installed auxiliary electrical
device(s). Fuse block details and
specifications are provided below.
The fuse blocks are located in the
bottom of the center dash console.
Below Floor Obstructions:
When installing aftermarket equip-
ment, obstructions below the floor
must be avoided. Obstructions
include wiring, fuel system, brake
lines, etc. Installers must be
aware of these obstructions.
Refer to the illustration on previ-
ous page to avoid contacting or
damaging vital components under
the floor.
Fuse Blocks: Two fuse blocks
are provided for use as an auxil-
iary power source (one Ignition
fuse block and one Battery fuse
block).
The Battery fuse block provides
power at all times (independent
of the vehicle ignition). The Igni-
tion fuse block supplies power
only when the vehicle ignition is
on.
The installer is responsible for
supplying the correct gauge wire
and fuse for the particular device
to be attached to the fuse block
(as specified by the manufac-
turer of the device).
Ignition Fuse Block: The total
maximum load must not exceed
40 amperes.
Battery Fuse Block: The total
maximum load must not exceed
40 amperes.
Note: If installing an auxiliary
electrical device that requires
more than a 40 ampere power
source, an alternative power
source must be provided.
Note: Battery fuse block posi-
tion (F3) powers the passenger
seat SIR and is not required for
vehicles with a manufacture date
after 2-25-08.
Fuse Block Access: The fuse
blocks are located at the bottom
of the center console. Remove
upper console panel (3 fasteners
per side). Remove lower panel.
Note: The fuse blocks are part
of the gateway electrical assem-
bly. Two grounding studs are
also provided.
30
F3
F4
F1
F2
29428
F3
F4
F1
F2
29429
OPEN
OPEN
OPEN
OPEN
30
OPEN
20

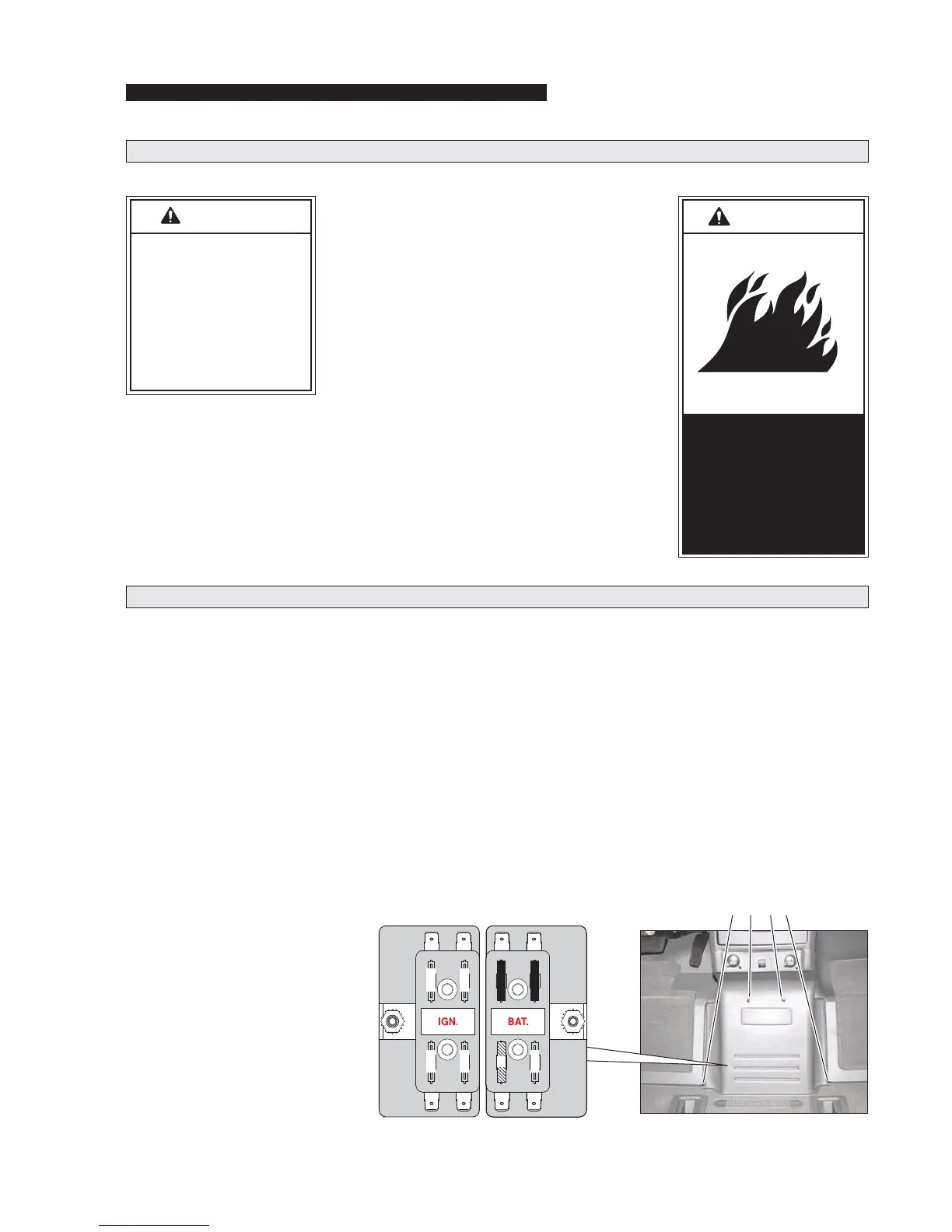

Under Dash Fuse Blocks
