Breas NIPPY ST+ - Fascia Display Explained

9
Fascia Display
1
2
3
4
5
6
7
8
9
11
12
10
4
4
13

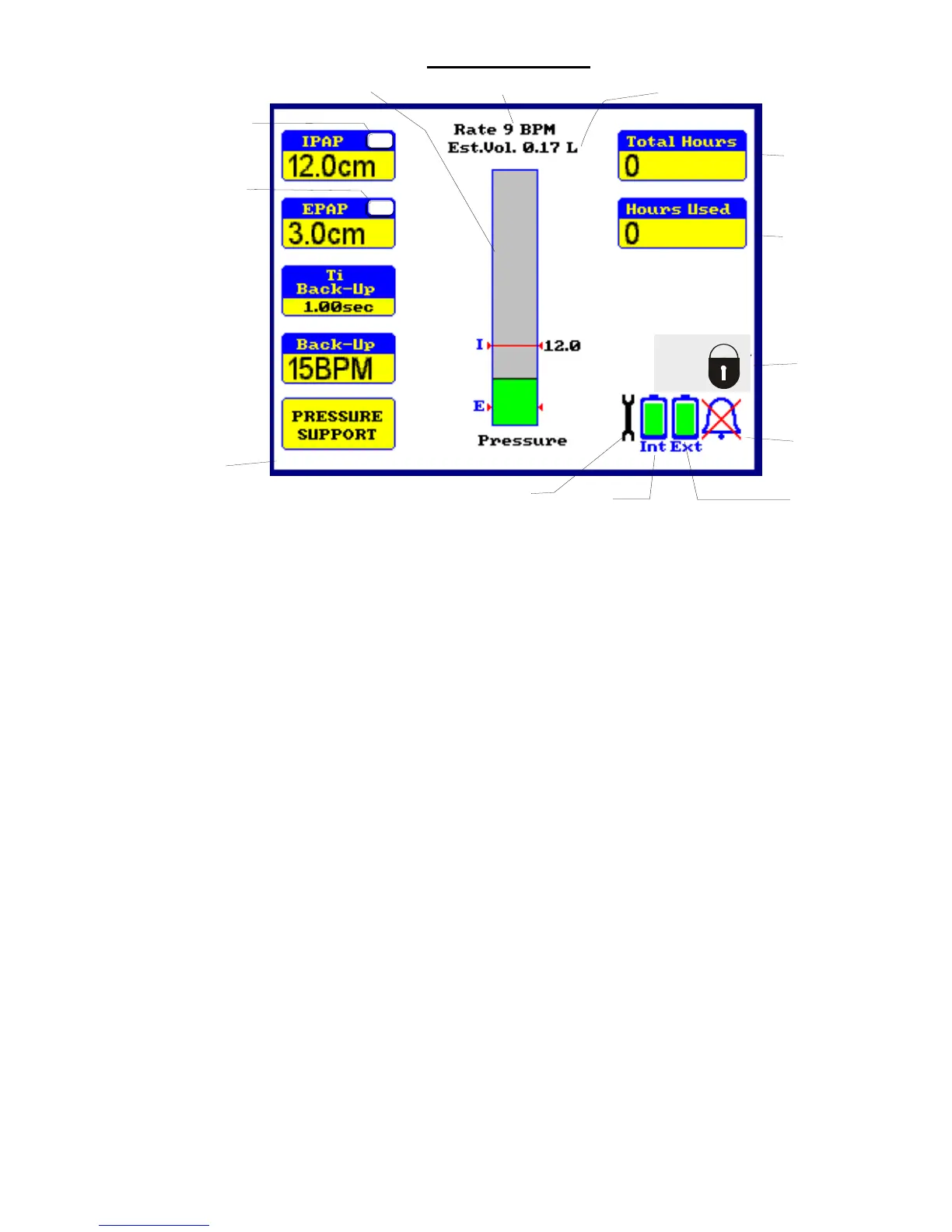

1. Mode - Displays current mode of ventilation.
2. Pressure Display - Indicates airway pressure (scaled in cm H
2
O).
Changes colour to red in under / over pressure
alarm condition.
3. Rate Display - Indicates patient breath rate (scaled in Breaths Per
Minute).
4. Volume Display - Indicates estimated inspiratory tidal volume (scaled
in millilitres).
5. Settings locked symbol - This symbol shows that the settings are locked.
6. Alarm Muted symbol - This symbol shows that the audible alarm has been
temporarily silenced.
7. I Trigger indicator - “Flashes” each time the inspiratory cycle is initiated
by the patient.
8. E trigger indicator - “Flashes” each time the expiratory cycle is initiated
by the patient.
9. External battery - Indicates external battery state of charge, when
connected. Red when Discharged.
10. Internal battery - Indicates internal battery state of charge. If fitted.
Red when Discharged.
11. Total Hours - Shows total machine running time.
Used to determine service intervals
12. Hours Used - Shows total hours of use. (Compliance Hours)
13. Service Reminder - Major service due
