Connecting auxiliary monitoring equipment
For monitoring or downloading data the NIPPY ST+ may be connected to a PC
or Laptop computer. The NIPPY ST+ isolated RS232 port is safe for use with
any domestic PC or laptop computer. However, when assembling a system, the
completed system should comply with EN60601-1 (medical systems). For
example, most computers do not comply with this standard, so it should be sited
at a distance which makes it impossible to touch the computer and the patient at
the same time.
The RS232 port may also be used to run a remote alarm unit.
1. Fresh air inlet
2. Blower (compressor)
3. Flow Sensor
4. Outlet connector
5. Breathing Circuit
6. Exhalation Port
7. Patient Connection Port

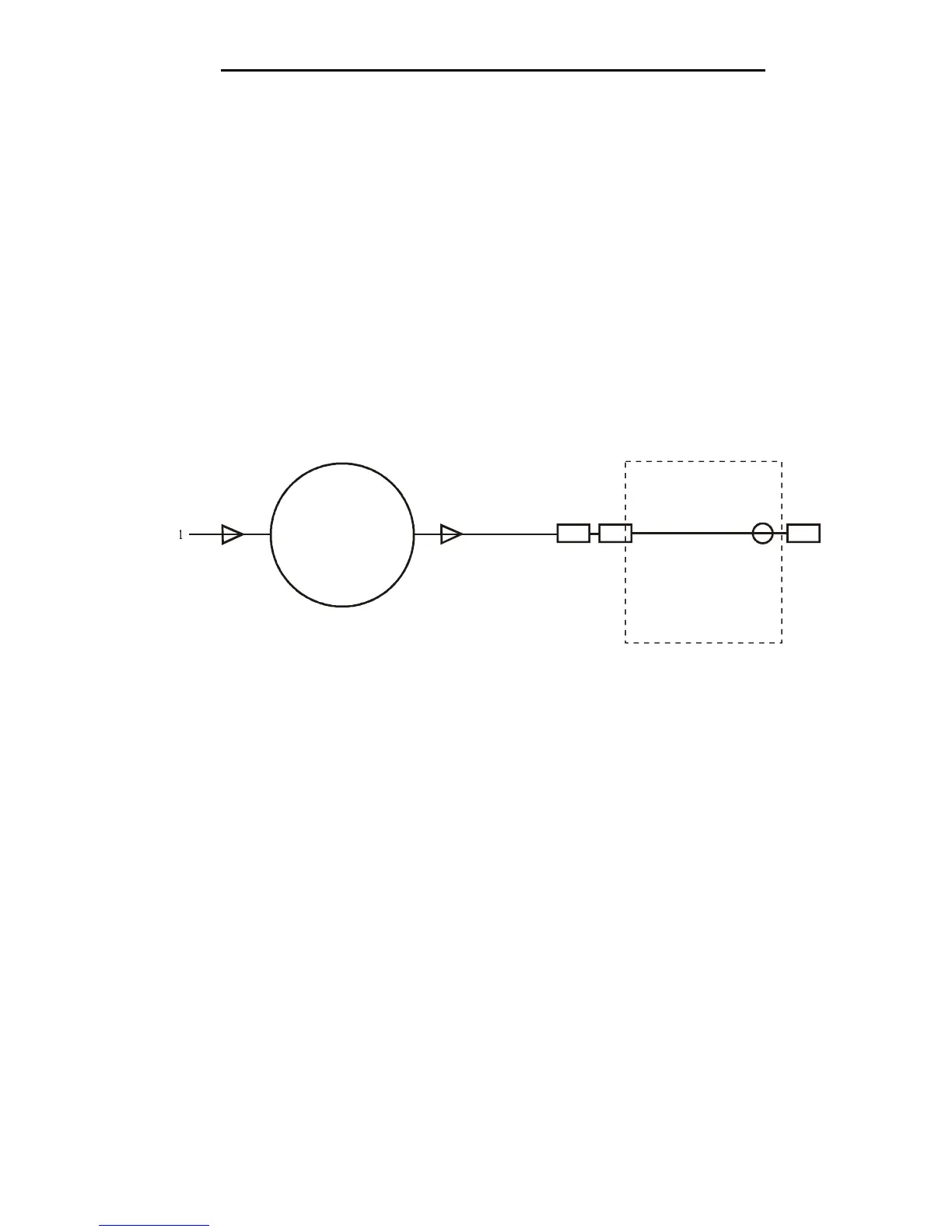

Ventilator System Pneumatic Diagram
2
3 4
5
6
7
