Breas Z1 - Assembling and Powering Up; Filter and End Cap; Tube Adapter, CPAP Tube and Mask

12
Doc. HD40-0007-02 En-Eu L-4
Z1 Unplugged
Includes everything that comes with the Z1 Base Model, plus:
Assembling and Powering Up
Filter and End Cap
1. Remove the Filter from its packaging.
2. Insert the Filter into the End Cap, aligning the arched
side of the Filter with the top of the End Cap.
3. Ensure the Filter covers all holes in the End Cap, so
that all air entering the Z1 passes through the Filter
and no air bypasses the Filter.
4. Press the End Cap onto the Z1. (Figure 1)
NOTE: To remove the End Cap, squeeze
rmly on the sides of the End Cap and pull it
away from the Z1.
Tube Adapter, CPAP Tube and Mask
1. Connect one end of the CPAP Tube to the round end
of the Tube Adapter then insert the other end of the
Tube Adapter into the outlet of the Z1. (Figure 2)
2. Connect the other end of the CPAP Tube to the mask.
3. Ensure all connections are tight to avoid air leaks.
(Figure 3)

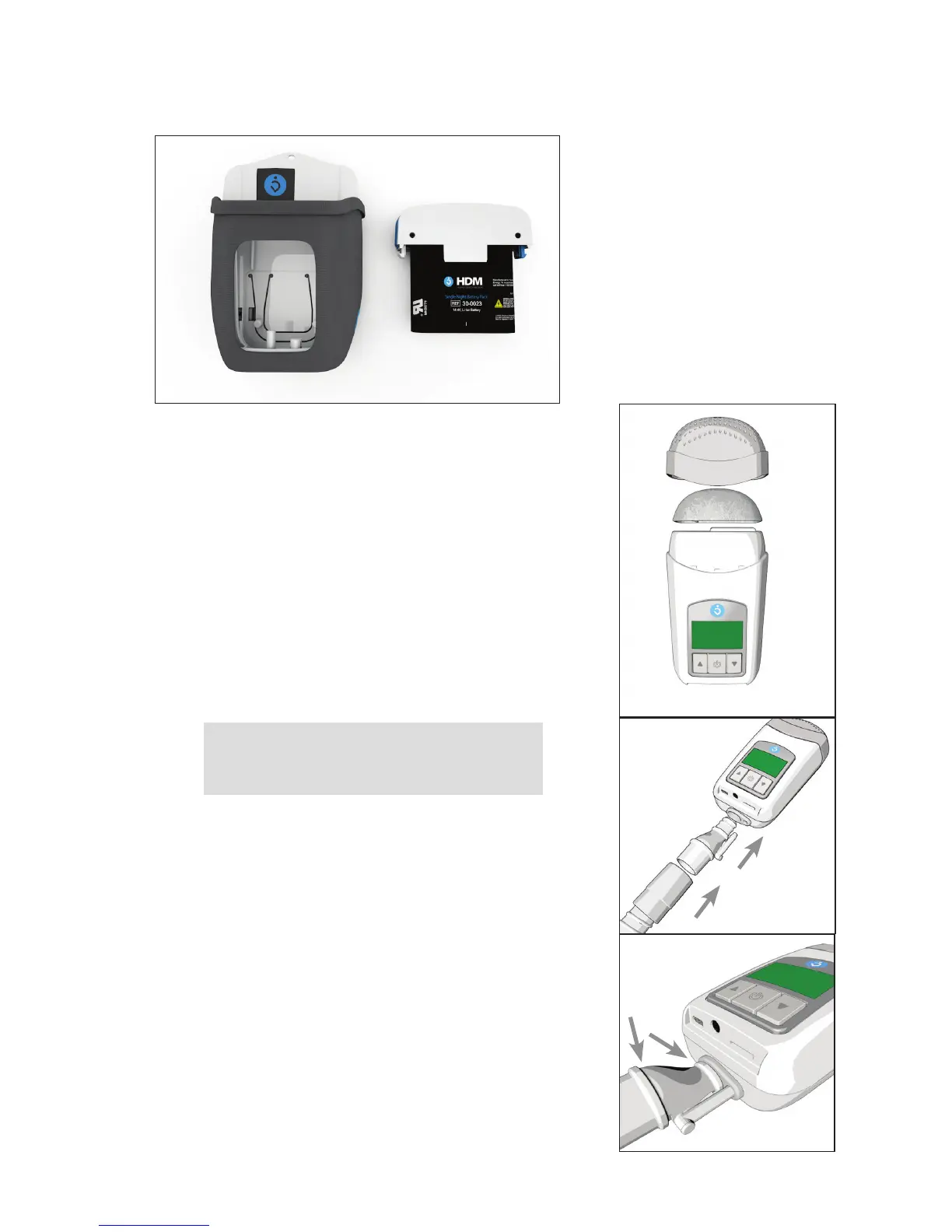

PowerShell
Battery Shuttle and
Overnight Battery
Figure 1
Figure 2
Figure 3
