13
SAFETY FEATURES
a. Your stove is equipped with a high temperature thermosdisc. This safety switch
has two functions.
1. To recognize an overheat situation in the stove and shut down the fuel feed
or auger system.
2. In case of a malfunctioning convection blower, the high-temperature
thermodisc will automatically shut down the auger, preventing the stove from
overheating.
NOTE: On some units, once tripped, like a circuit breaker, the reset button will
have to be pushed before restarting your stove. On other units, the thermodisc has
no reset button and will reset itself once the stove has cooled. The manufacturer
recommends that you call your dealer if this occurs, as this may indicate a more
serious problem. A service call may be required.
b. If the combustion blower fails, an air pressure switch will automatically shut
down the auger.
NOTE: Opening the stove door for more than 30 seconds during operation will
cause enough pressure change to activate the air switch, shutting the fuel feed
off. Close the door and press “On/Off” button to continue operation of your stove.
OPTIONAL THERMOSTAT
An optional thermostat may help you maintain a constant house temperature
automatically. A millivolt thermostat is required. A xed wall mount or Breckwell’s
hand held model can be used. The control panel can be set up two ways to operate your stove in thermostat
mode.
THERMOSTAT INSTALLATION
• A MILLIVOLT THERMOSTAT IS REQUIRED.
• Unplug stove from power outlet.
• Remove control board from stove.
• The two thermostat wires connect to the terminal block on the lower left side of the back of the control
board. (See Figure 14)
• Insert wires in the terminal side and tighten the two screws.
MODES
TO SWITCH BETWEEN ANY OF THE THREE MODES, THE STOVE MUST BE SHUT OFF, THE NEW MODE SELECTED AND THE
STOVE RESTARTED.
MANUAL MODE
• USE THIS MODE EXCLUSIVELY IF YOU DO NOT CONNECT AN OPTIONAL THERMOSTAT.
• In this mode, the stove will operate only from the control panel as detailed in the “OPERATION” section of this
owner’s manual.
HIGH/LOW THERMOSTAT MODE
• USE THIS MODE ONLY IF YOU CONNECT A THERMOSTAT.
• When engaged in this mode, the stove will automatically switch be- tween two settings. When warm
enough, it will switch to the #1 or low setting. The room air blower will also slow to its lowest speed.
• The Heat Level Advance setting on the bar graph will stay where it was initially set. When the home cools
below the thermostat setting, the stove will switch to the feed rate of the heat level advance setting.
ON/OFF THERMOSTAT MODE
• USE THIS MODE ONLY OF YOU CONNECT A THERMOSTAT
• In this mode, when the home is warm enough, the stove will shut off. The fans will continue to run until the
stove cools.
• When the home cools below the thermostat setting, the stove will automatically restart and run at the last
feed rate setting.
NOTE: When in “High/Low” or “On/Off” thermostat mode -
• Do not operate the stove higher than the #3 setting.
• Set damper control rod approximately 1/4” to 1/2” out. This will vary depending on elevation and weather
conditions. Observe stoves operation and adjust damper as necessary.

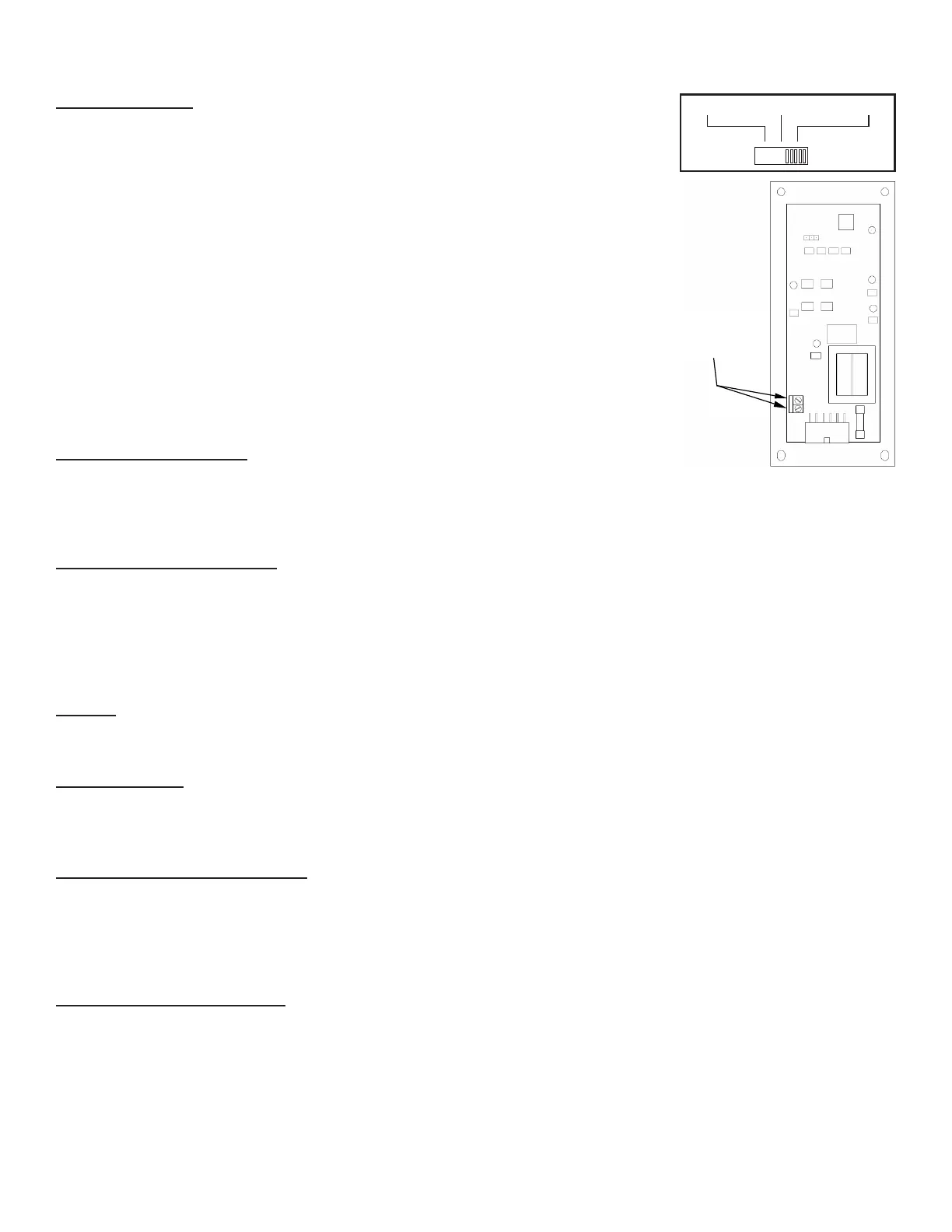

FIGURE 14
N
On/Off High/Low Manual
Connect
Thermostat
Wires Here
On/Off High/Low Manual
Operation
