Breckwell BIG E - Installation; Specifications

4

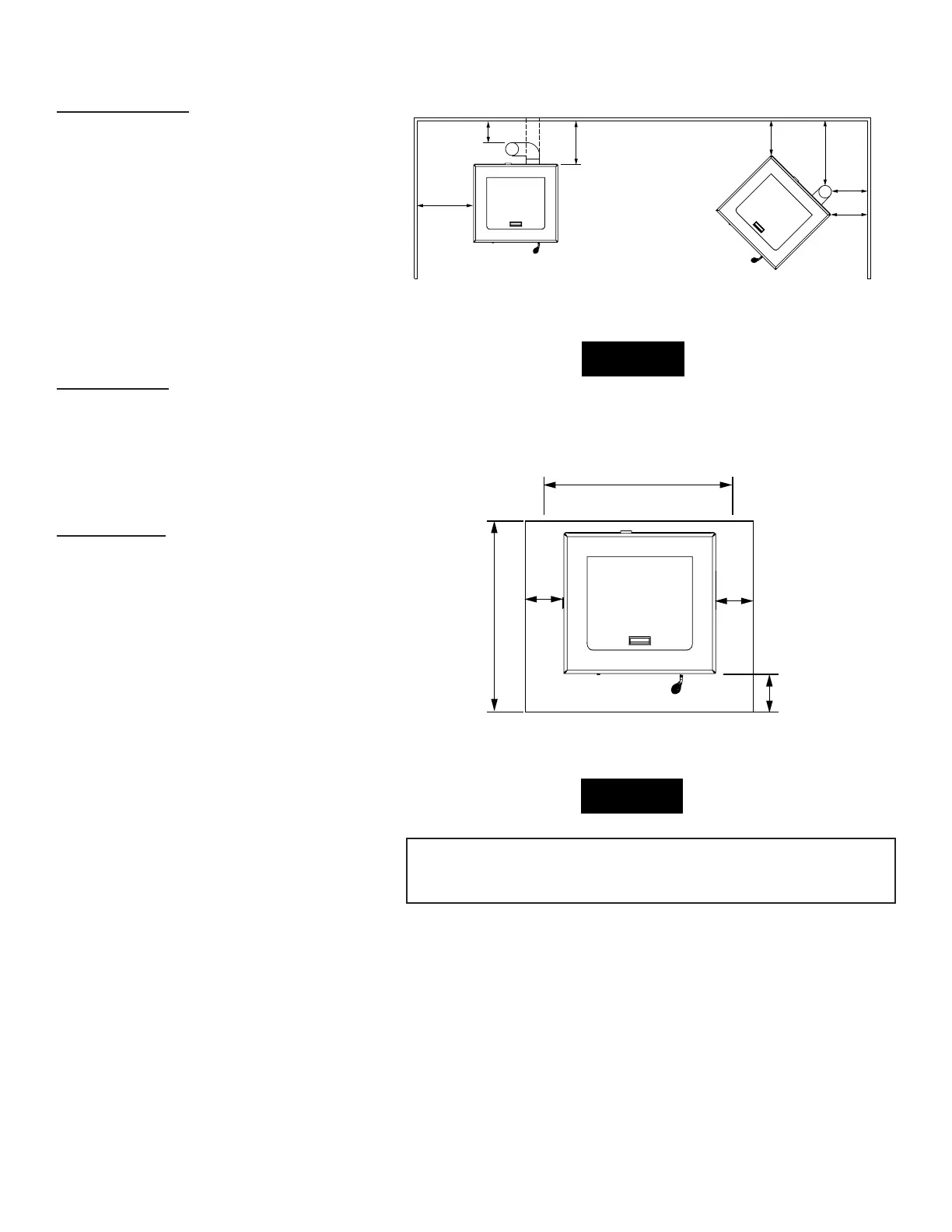

FIGURE 1
FLOOR PROTECTION
(MINIMUM 30” W X 32” D)
FIGURE 2
SIDE WALL
BACK WALL
WITH
VERTICAL
EXHAUST
3”
12”
1”
WITH
HORIZONTAL
EXHAUST
ADJACENT WALL
ADJACENT WALL
1”
1”
3”
3”
MINIMUM SIDEWALL CLEARANCES
30”
6”
6”
6”
32”
SPECIFICATIONS
Width: 25 3/4”
Height: 32 5/8”
Depth: 23 7/8”
Weight: 275 lbs.
Flue Size: 3” or 4”
Hopper Capacity: Up to 140lbs.
(This can vary widely depending on
pellet size, length, and diameter.)
EPA status: exempt
Burn Time: 1lb to 5.5lbs. per hour
BTU range: 8,200 to 55,000
Approved installations: mobile home,
conventional
PREPARATION
Factory packaging must be removed,
and some minor assembly work is required
prior to installation. Access to the rear of
the stove is necessary.
NOTE: Normally, your dealer will perform
these functions.
CLEARANCES
This unit has been tested and listed
for installation in residential and mobile
homes.
FLOOR PROTECTION: Freestanding
installations, minimum 30” wide by
32” deep. The stove must be placed
on a continuous (grouted joints) non-
combustible material such as ceramic
tile, cement board, brick, 3/8” millboard
or equivalent, or other approved or listed
material suited for oor protection.
THE MATERIAL(S) USED MUST HAVE,
OR COMBINE TO HAVE, A MINIMUM
INSULATIVE RATING OF ‘R1.’
NOTE: ceramic tile, or any tile, requires a
continuous sheet beneath to prevent the
possibility of embers falling through to the
combustible if cracks or separation should
occur in the nished surface, this would
include oor protection for Built-in raised
hearths. Check local codes for approved
alternatives.
Clearances are measured from the sides,
back and face (door opening) or stove
body (refer to g.2).
Clearances may only be reduced by
means approved by the regulatory
authority having jurisdiction.
DO NOT USE MAKESHIFT MATERIALS OR
COMPROMISES IN THE INSTALLATION OF
THIS UNIT.
INSTALL VENT AT CLEARANCES SPECIFIED
BY THE VENT MANUFACTURER.
Caution: Do not connect to or use in conjunction with any
air distribution ductwork unless specically approved for such
installations.
Installation
