Basic Set Up (continued)
Adjusting Axle from Heavy to Light Setting
• FALLING OBJECTS CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT WORK UNDER
THE MACHINE AT ANY TIME WHILE BEING HOISTED. BE SURE ALL LIFTING DEVICES
AND SUPPORTS ARE RATED FOR THE LOADS BEING HOISTED. THESE ASSEMBLY
INSTRUCTIONS WILL REQUIRE SAFE LIFTING DEVICES UP TO 16,000 LBS. SPECIFIC
LOAD RATINGS FOR INDIVIDUAL LOADS WILL BE GIVEN AT THE APPROPRIATE TIME
IN THE INSTRUCTIONS.
• TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH.
BE SURE MACHINE IS SECURELY BLOCKED.
1. Hitch cart to tractor. Park the empty unit on
a fi rm, level surface. Set the tractor’s parking
brake, shut-off engine and remove the ignition
key.

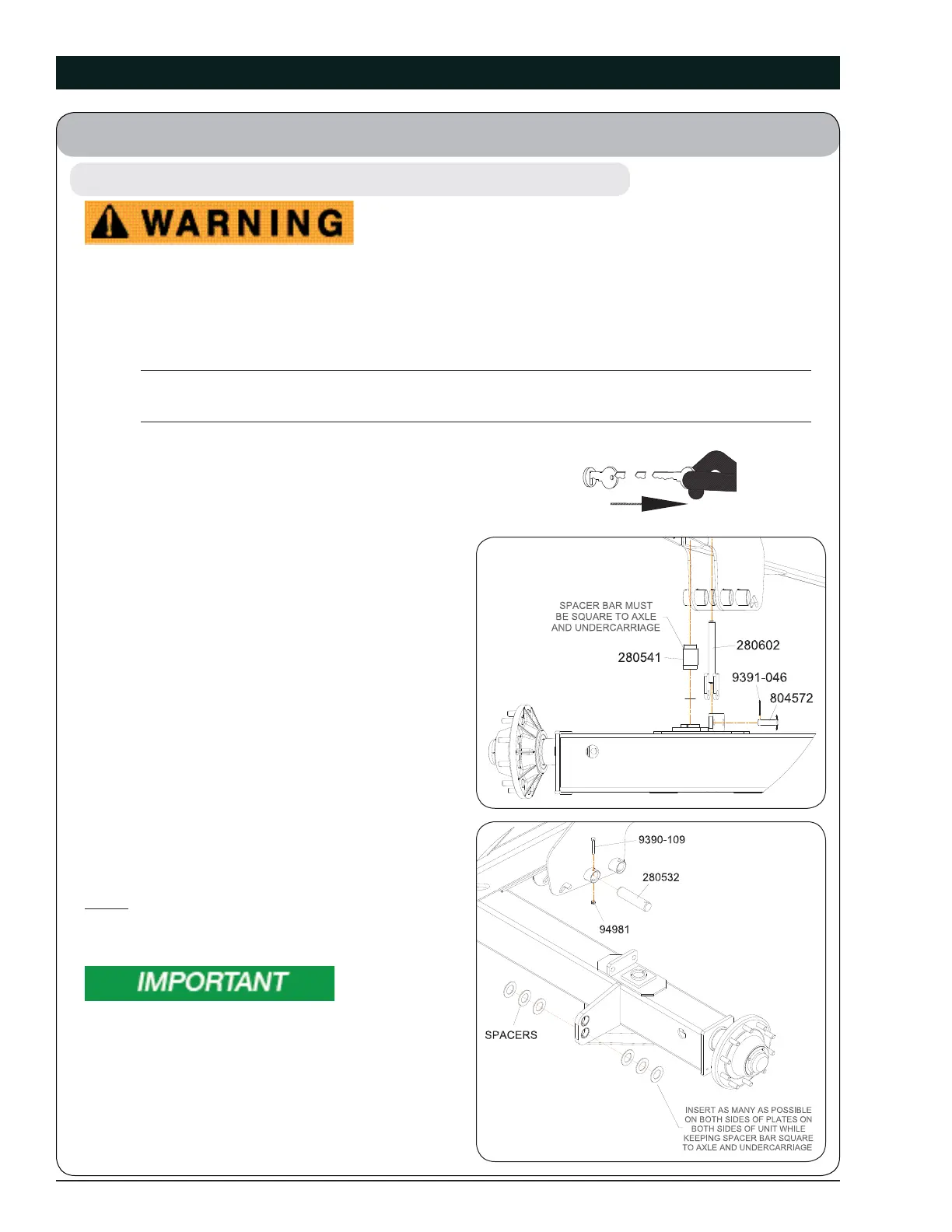

2. Remove cotter pin (9391-046) and pin (804572)
from the axle and rod weldment retainer. Re-
peat on opposite side of cart.
3. Using a safe lifting device rated for a minimum
of 8 tons and supports rated at 4 tons mini-
mum, raise the rear of the cart approximately
1” off the axle and securely block.
4. Remove capscrews (9390-109) and lock-
nut (94981). Also, remove the axle pivot pin
(280532). Repeat on opposite side of cart.
5. Reposition axle and, using the same axle
mounting hole, insert the axle pivot pin (280532)
into the front hole and secure into position with
the capscrew (9390-109) and locknut (94981).
Repeat on opposite side of cart.
NOTE: If supports interfere with the axle,
remove material as needed (maximum of 1/2”)
from the cart frame for proper clearance.
• Cart height can also be adjusted on carts
with smaller diameter tire by using the lower
axle mounting holes. An axle riser bar is also
required when cart is equipped with smaller
tire options.
