Brent 1082/882 — Maintenance
4-7
Auger System (continued)
Upper Auger Disassembly
1. Support the upper auger assembly using a 2-ton hoist and two straps rated for 2000 lbs.
2. Remove auger tube cylinder pin and carefully swing cylinder down without breaking hose connec-
tions.
3. Disconnect auger and chute light.
4. Remove chute assembly.
5. Remove auger indicator cable from the bolt on bracket. With auger tube fully supported, remove
the 7/8-9UNC x 2 capscrews (9390-164) and fl at washers (97041) from the upper auger pivot bracket.
6. Lift upper auger assembly from unit. Repair or replace as required.
7. To remove auger from tube, loosen two bearing setscrews and remove 5/16 x 2” machine screw
retainer.
8. Inspect upper auger bearing, springs and four 1/2 x 5 1/2” capscrews and locknuts. Replace if nec-
essary.
(April 2015)

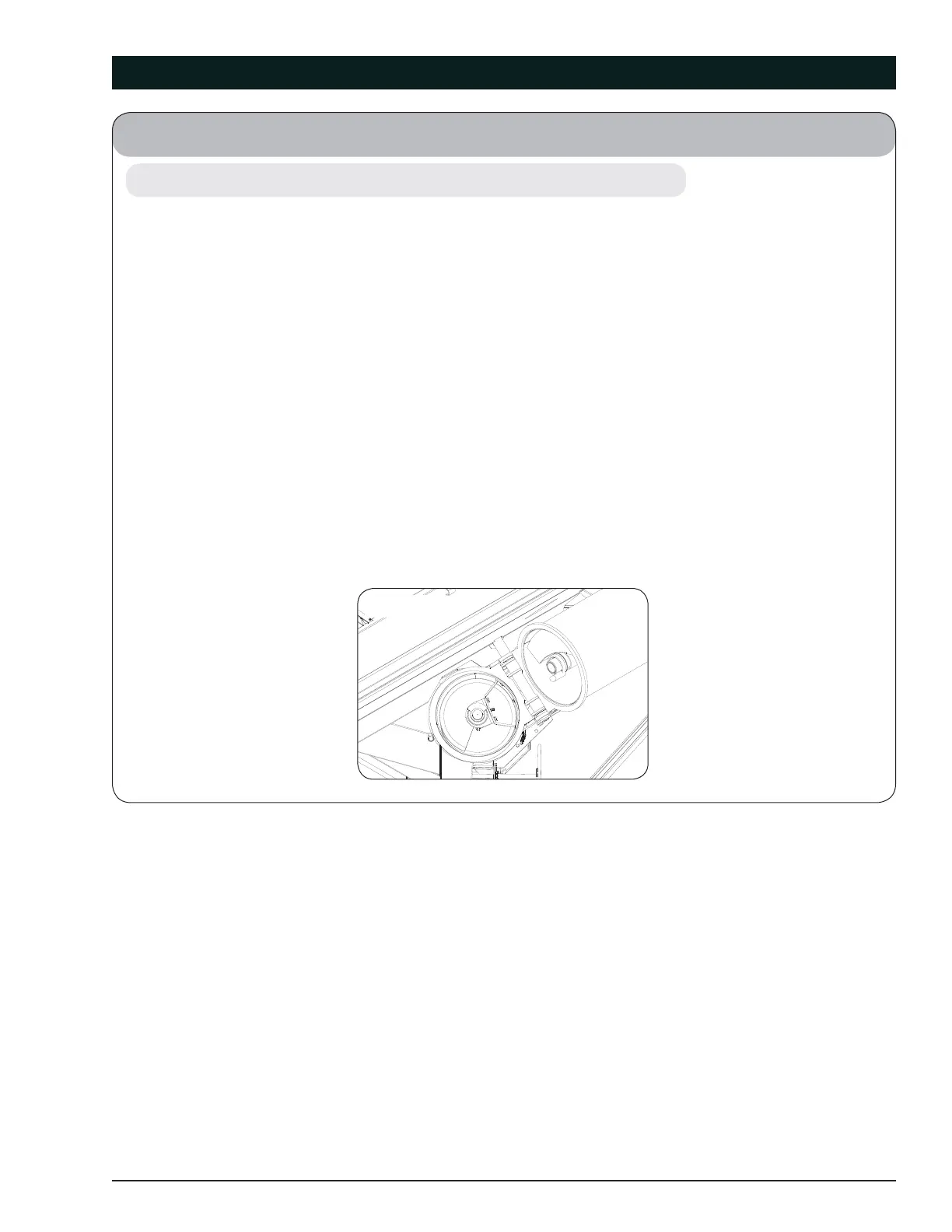

Fig. 4-7
