Auger System (continued)
Upper Auger Assembly
1. Install upper bearing and spring assembly if previously removed.
2. Insert auger in auger tube. Back out bearing setscrews and insert auger stub shaft through bearing.
Retain auger with 5/16 x 2 machine screw and nut.
3. Position opposite auger end fl ush with auger tube fl ange and tighten bearing setscrews and 5/16 x
2” machine screw
4. Lift upper auger assembly into position using and adequate hoist and slings with a minimum capac-
ity of 600 lbs. to support the upper auger. Install pivot pin. Align retainer holes and install bolt and
nut.
5. Install chute assembly.
6. Reattach indicator cable.
7. Connect auger and chute light.
8. Reinstall hydraulic cylinder and pivot pins. Clamp hoses into position and recheck connector tight-
ness.
(April 2015)

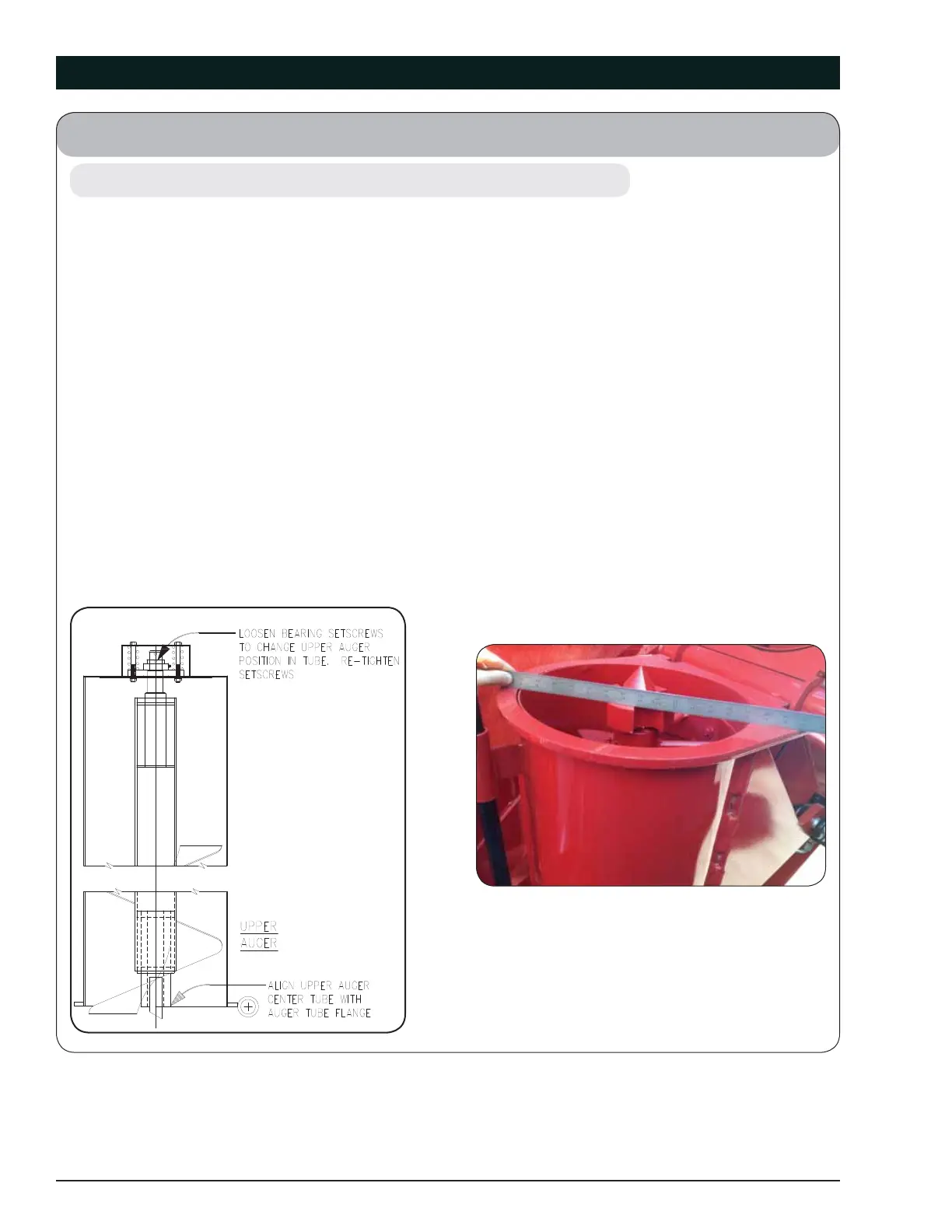

Fig. 4-8
