Auger System (continued)
Auger Flow Door Cylinder Replacement
(continued)
2. On the inside of the cart, open the screen ser-
vice access panel shown in Fig. 4-9.
3. Remove the cotter pins from the lower cylinder
pin then remove the pin. Then remove the four
3/8-1” fl ange bolts holding on the gasket and
gasket plate, shown in Fig. 4-10.
4. Remove all tools and extra hardware from the grain cart. Make sure all personnel are outside of
the hopper. Then, retract the cylinder so that there is about 8” of clearance between the cylinder
clevis and the lug.
5. Relieve hydraulic pressure, shut off the engine, remove the ignition key, and disconnect the hydrau-
lic hoses from the tractor and cart.

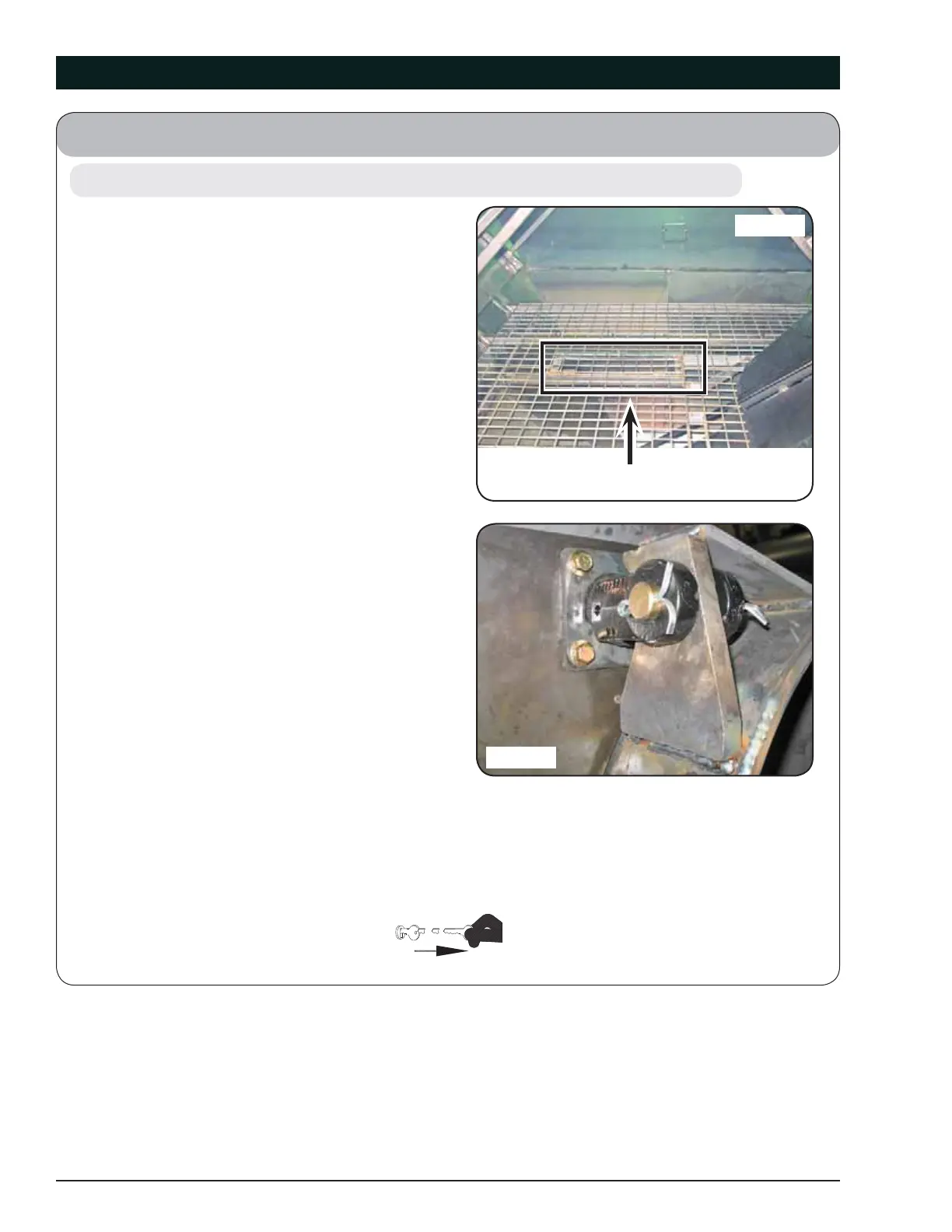

Screen Service Access Panel
(April 2015)
Fig. 4-9
Fig. 4-10
To Next Page
